SRF Production Line
Condition
Used
1
/
35
SRF Production Line
1
/
35
Overview
Description
SRF Production Line (Shred-Tech & Weima Shredders)

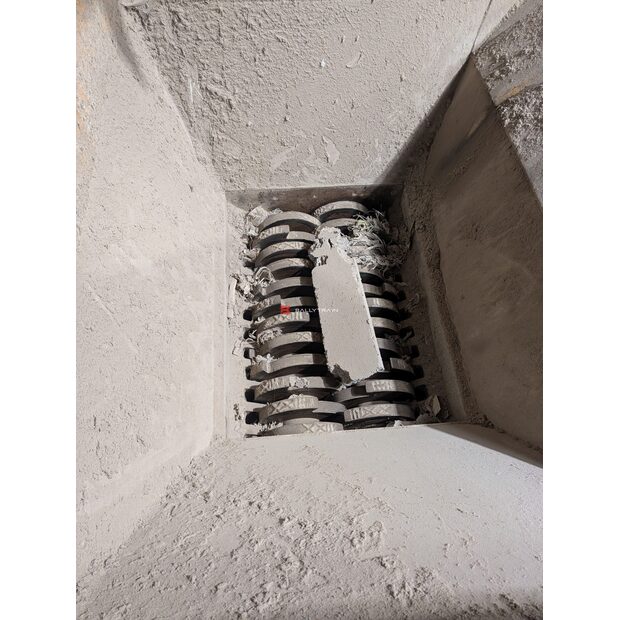

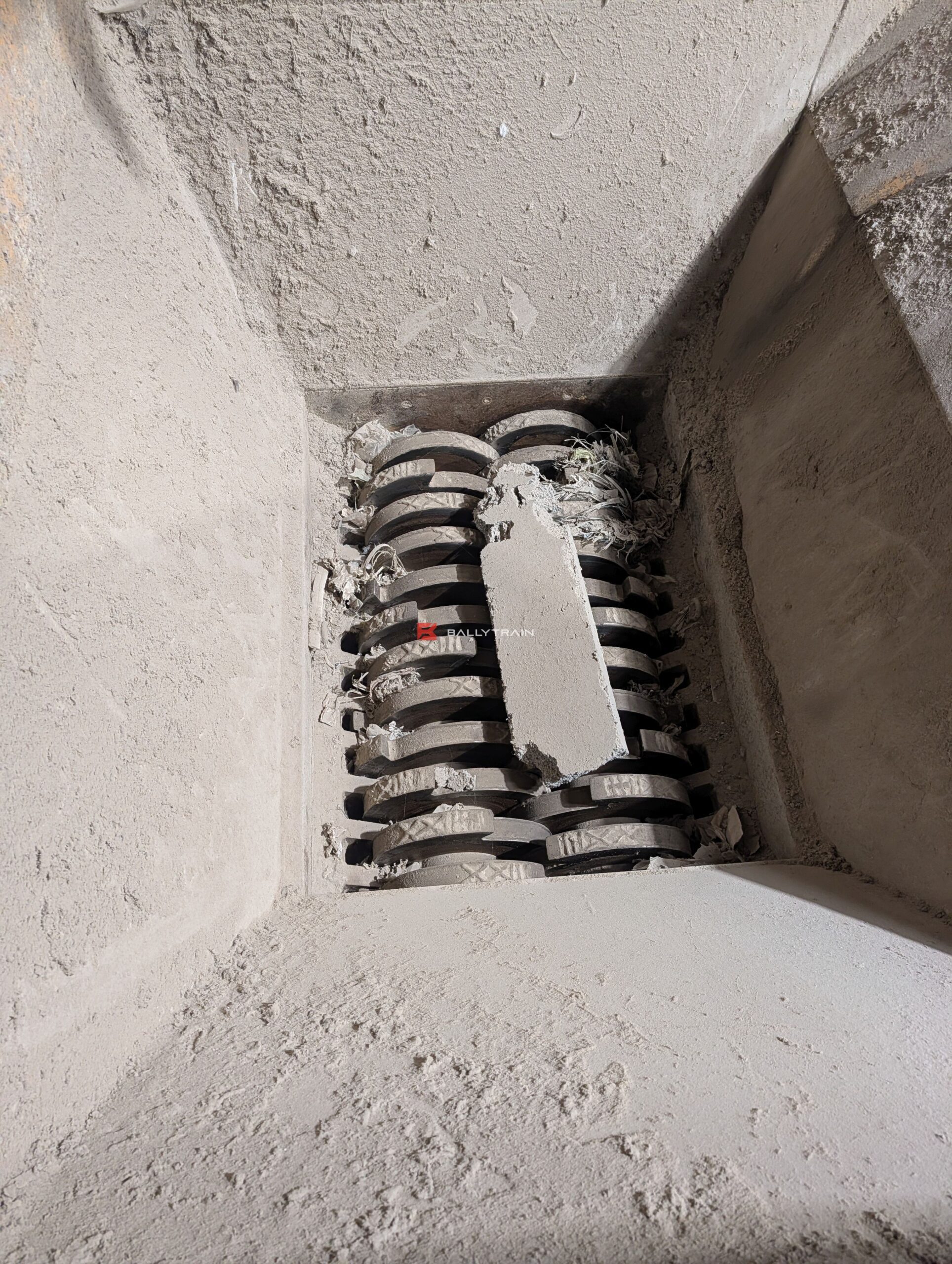

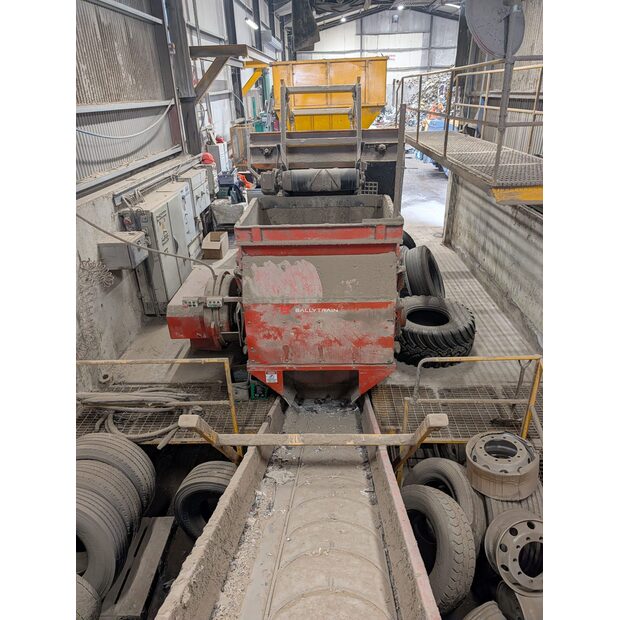

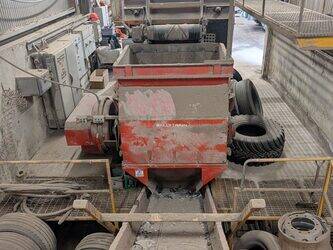

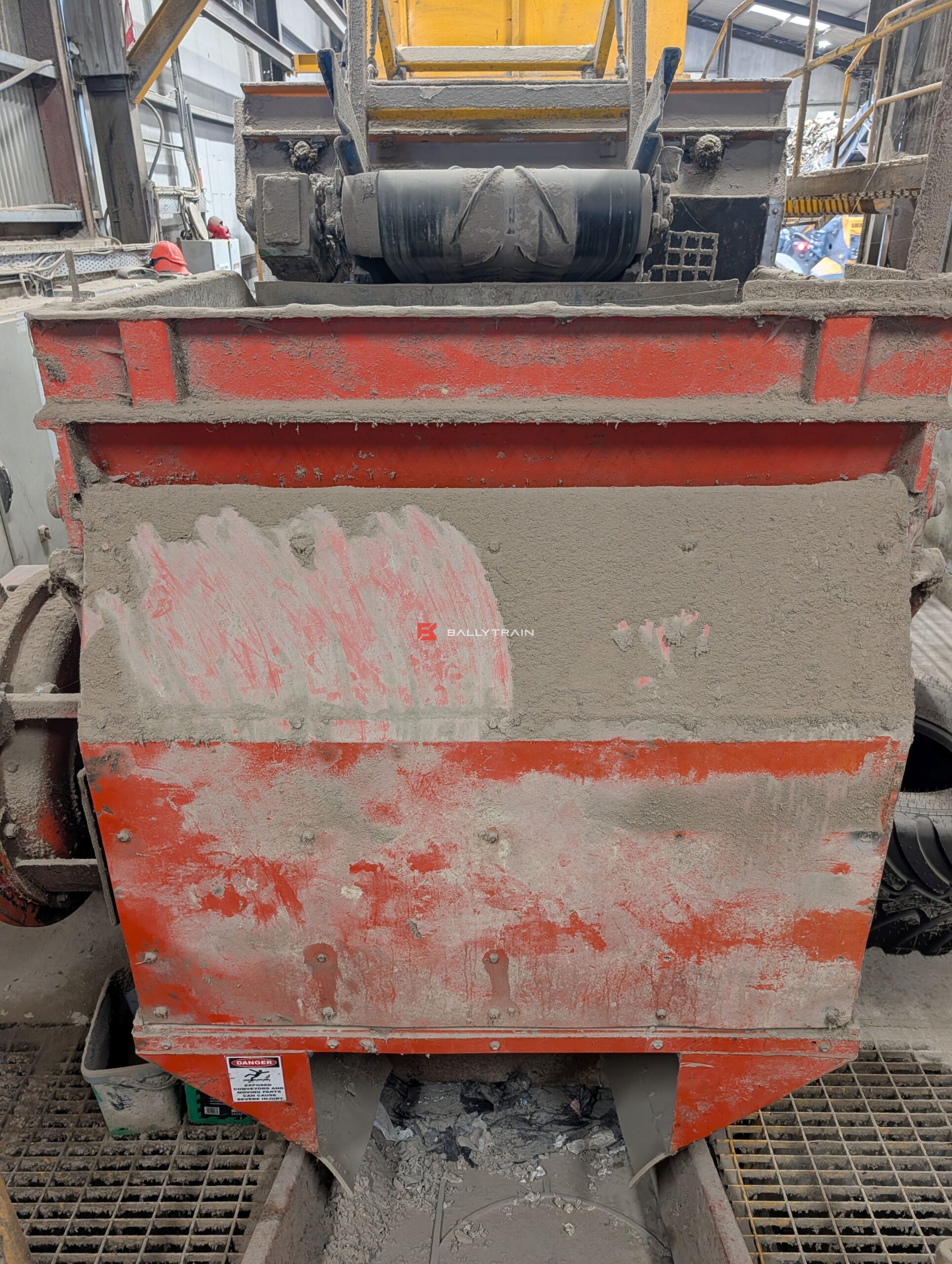

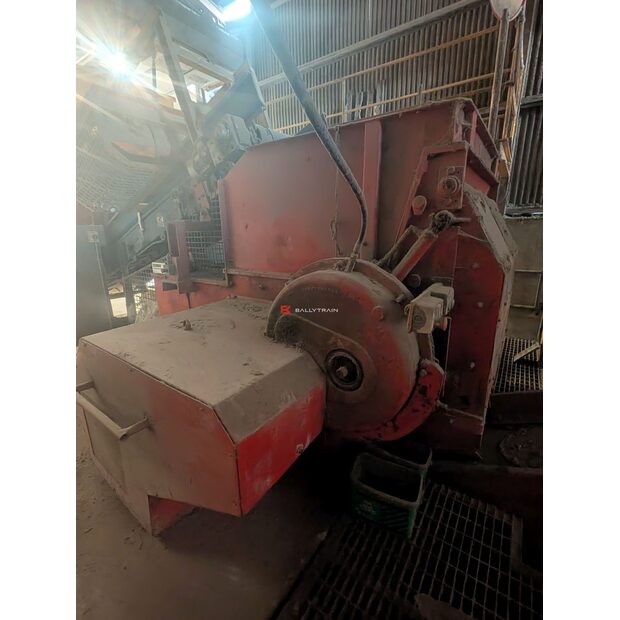

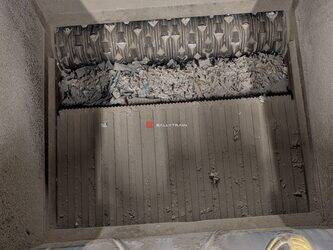

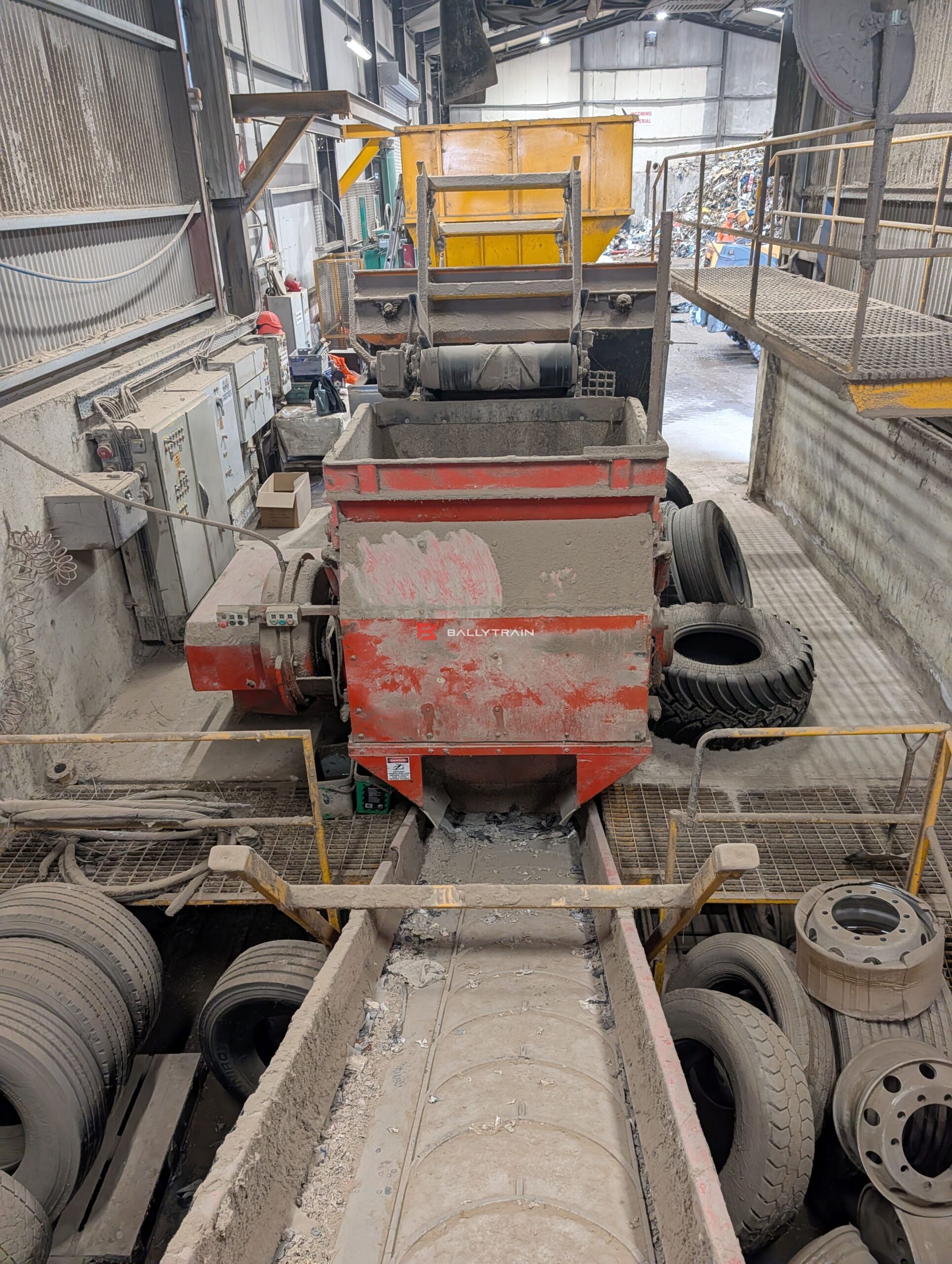

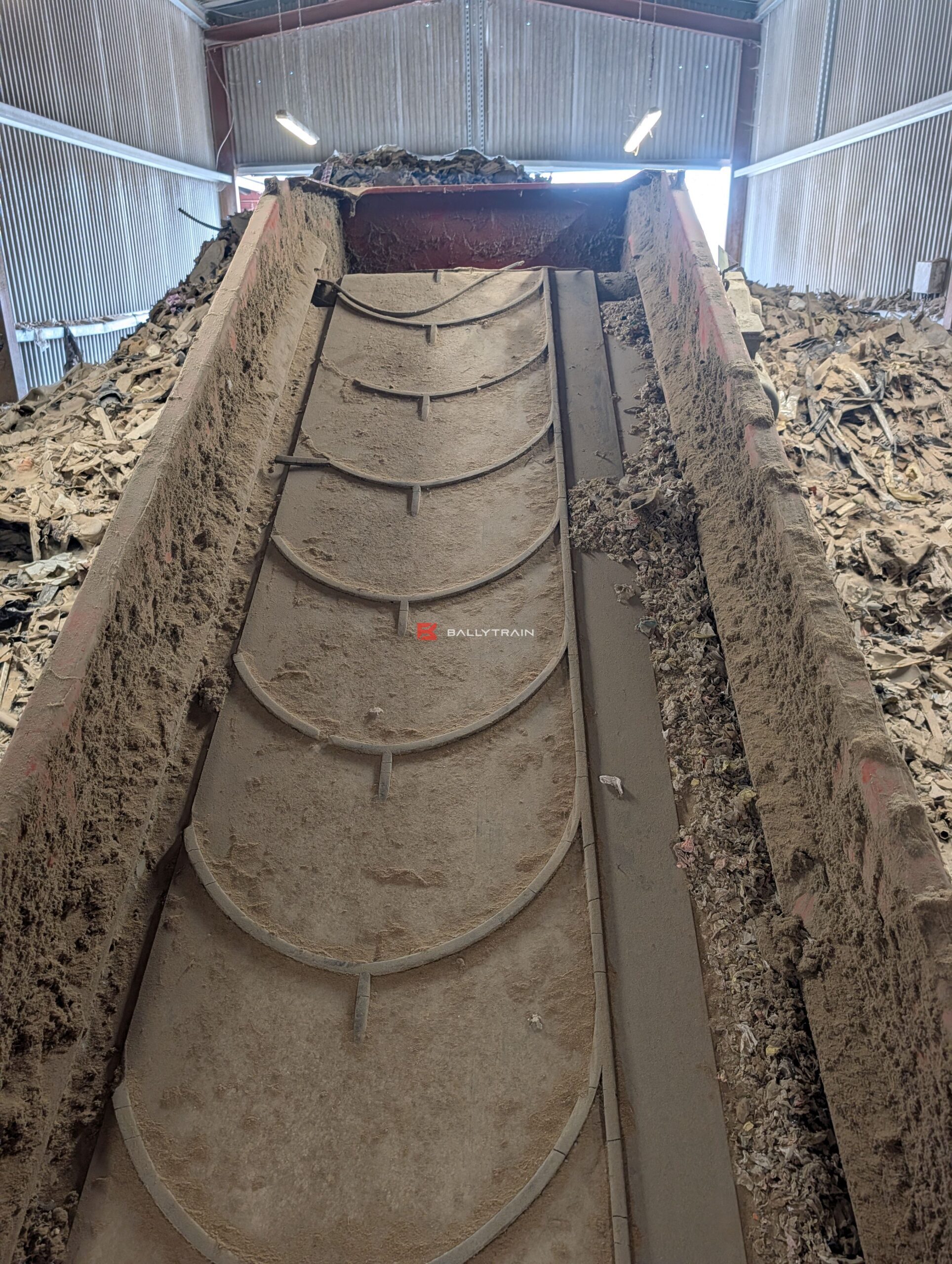

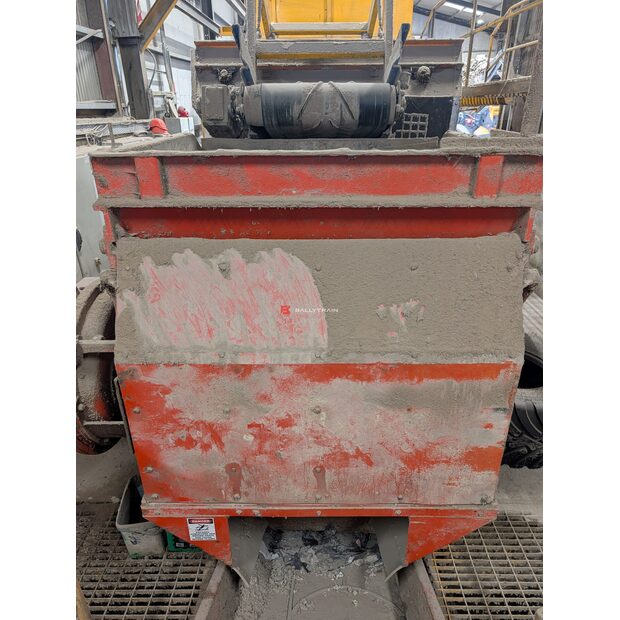

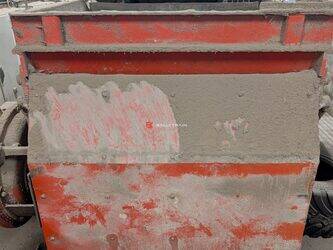

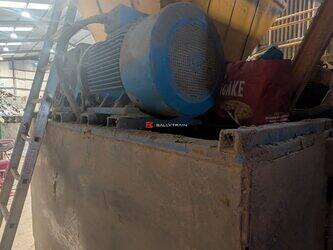

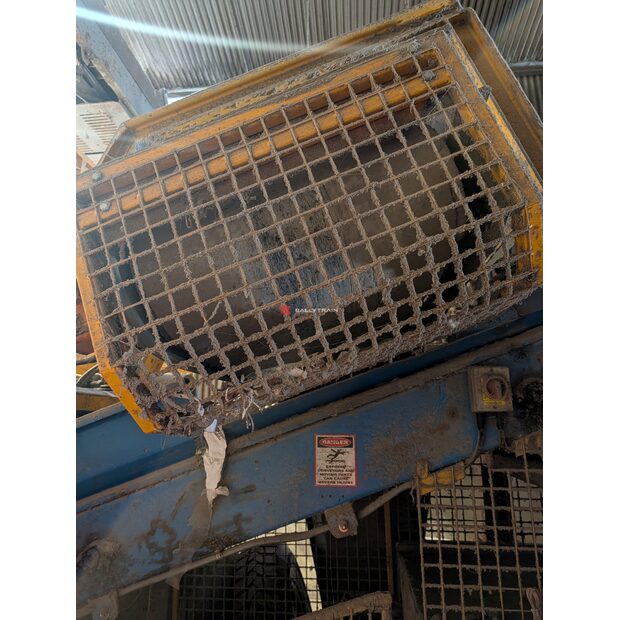

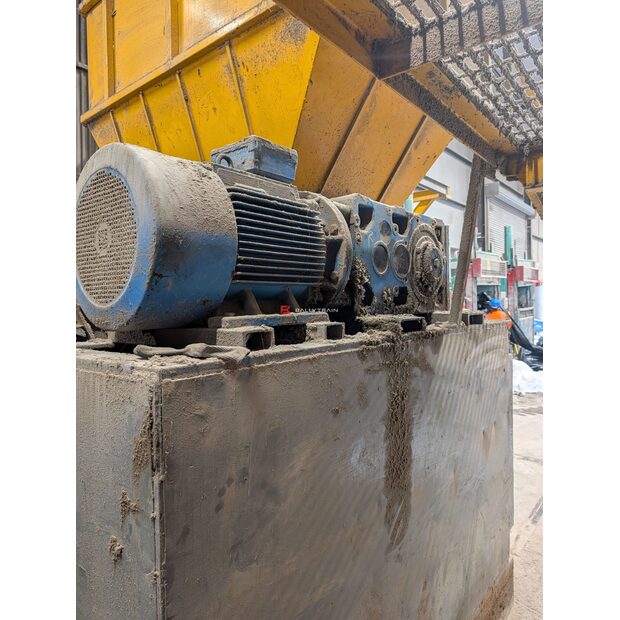

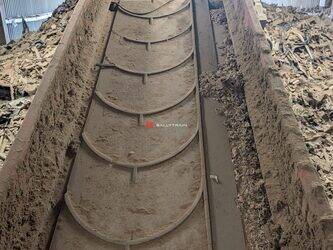

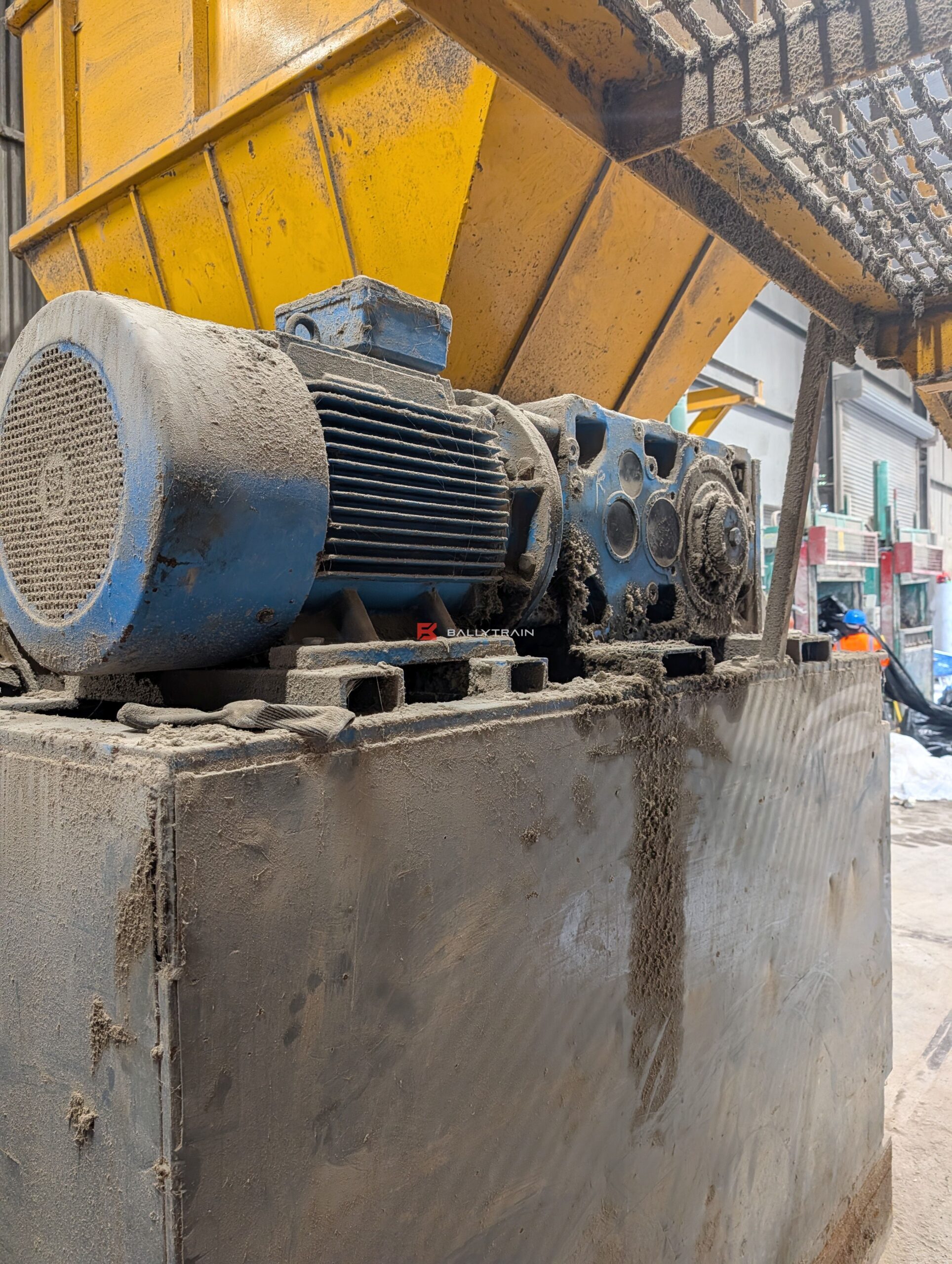

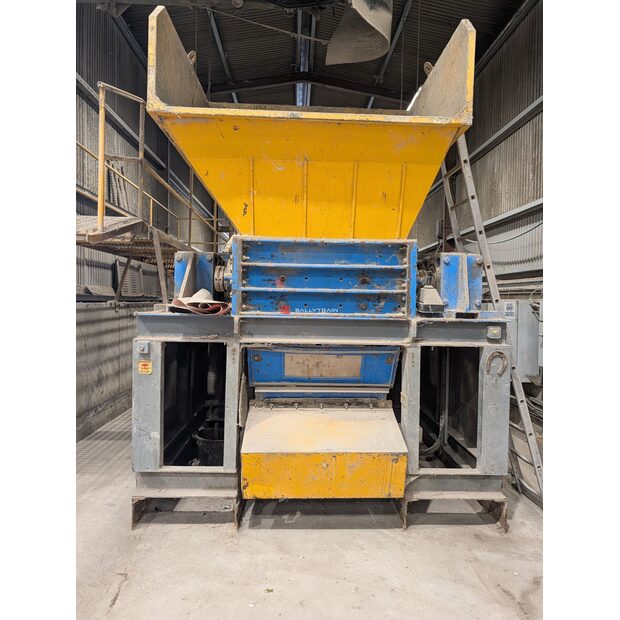

SRF Production Line for sale, Used SRF fully complete production line – Shred-Tech and Weima Shredder. Solid Recovered Fuel (SRF), This line has a Shred Tech ST35 Shredder with 4.7m conveyor under it to feed shredded material into Weima Shredder. The 4.7m conveyor has chevron belt and is fitted with overband magnet built on a frame, under the Weima Shredder is a 10m Turmec Conveyor with chevron belt stockpiling the final product. This complete line is electric driven and comes with electric motors and all the panels/control panels. Shred-Tech ST35 Shredder is a twin shaft shredder with a large feed bin driven by 2 x 45KW motor, Weima Shredder is single shaft shredder with feed bin and pan feeder moving over and back driven by 1 x 75KW motor. The SRF line has not been dismantled and is still set up as per images, we are selling it fully complete and in its current condition. Comes as per images below nothing more and nothing less. Please see below text for more details on this full SRF line.

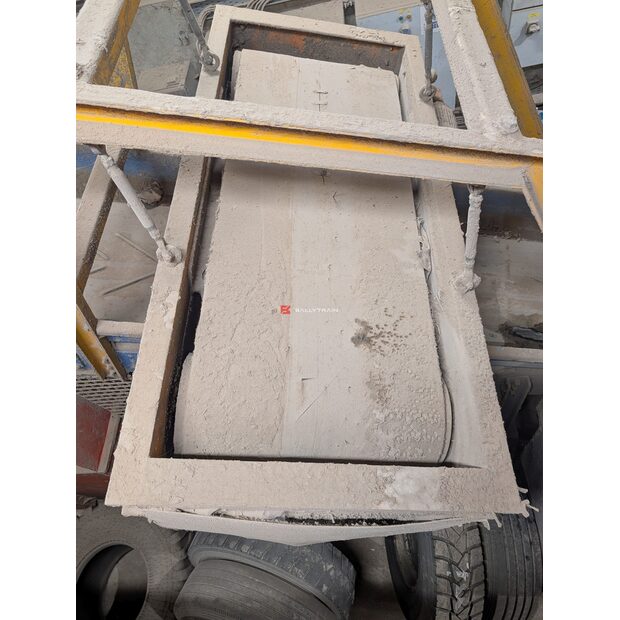

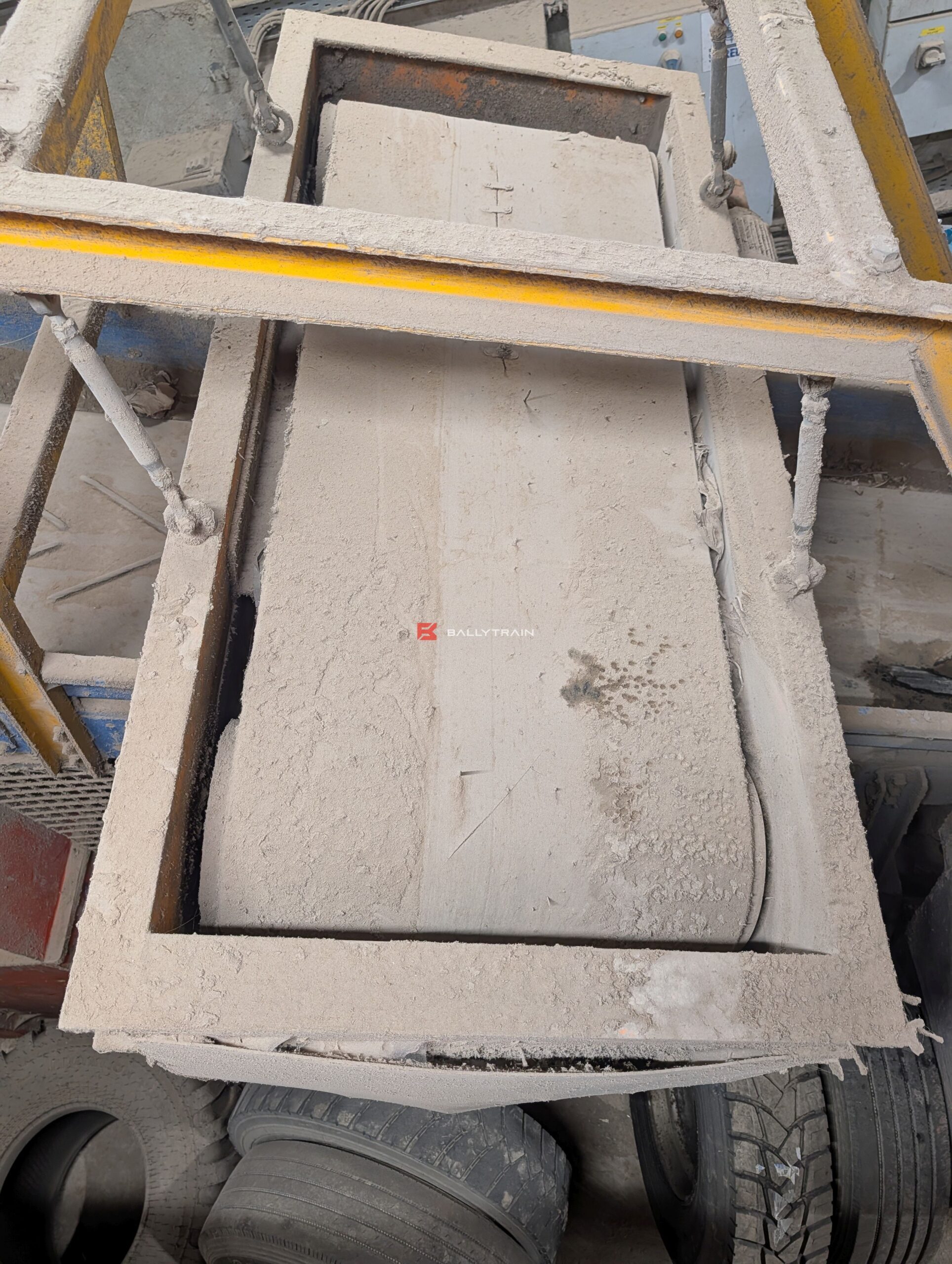

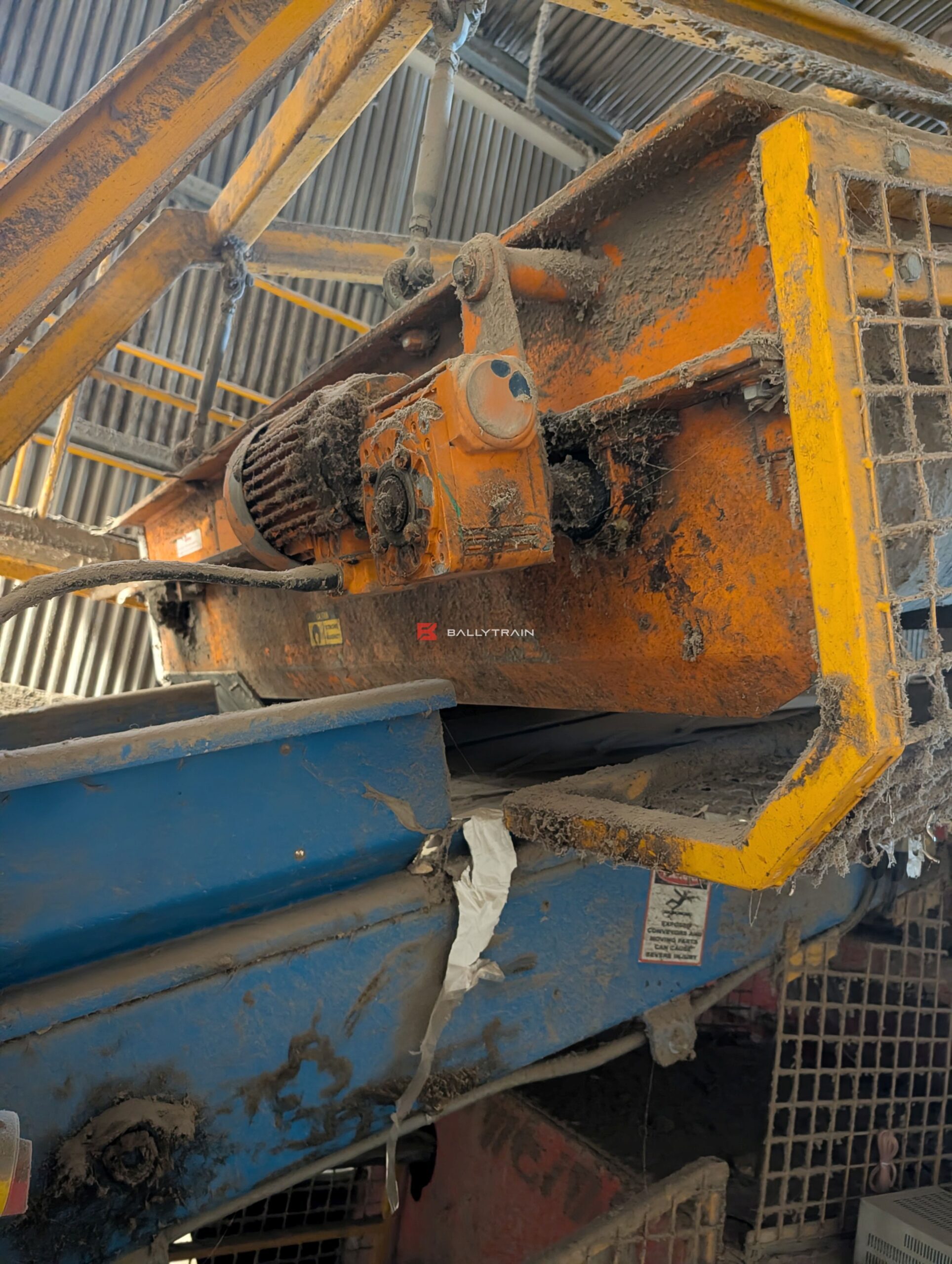

The overband magnet is fitted over the 4.7m conveyor for the removal of metals from material before entering into Weima Shredder. The line was working in a recycle centre and is still currently set up in the recycling centre. Working SRF line which is ready to go back to work. This line can be used for a wide range of applications but it was being used to shred tyres and recycled material/waste. We have a short video showing the plant running and in its current condition.
A Solid Recovered Fuel (SRF) production line transforms non-recyclable municipal and commercial waste into high-quality, high-calorific alternative fuel. The process typically involves pre-shredding, mechanical and optical sorting to remove contaminants (like chlorine and metals), drying, and fine shredding to yield a homogeneous product.
Worldwide Shipping options available, for keenest rates to get this SRF production line delivered to your local port or site please click here to contact us.
See the YouTube video of the SRF line running by clicking here.

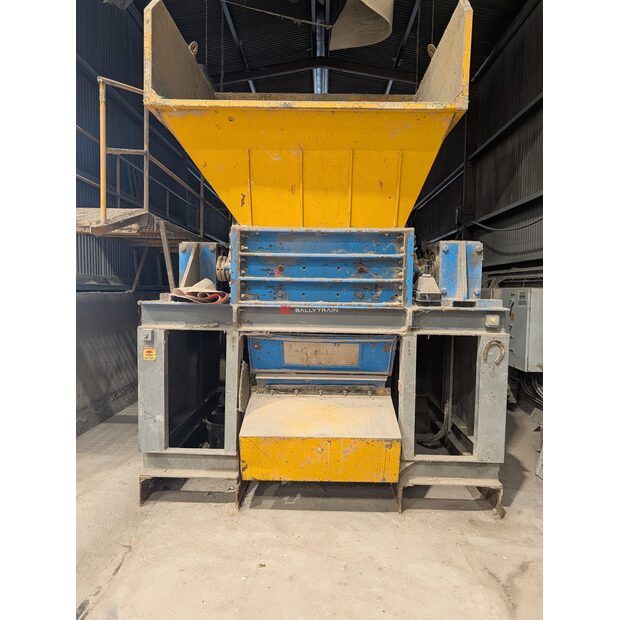

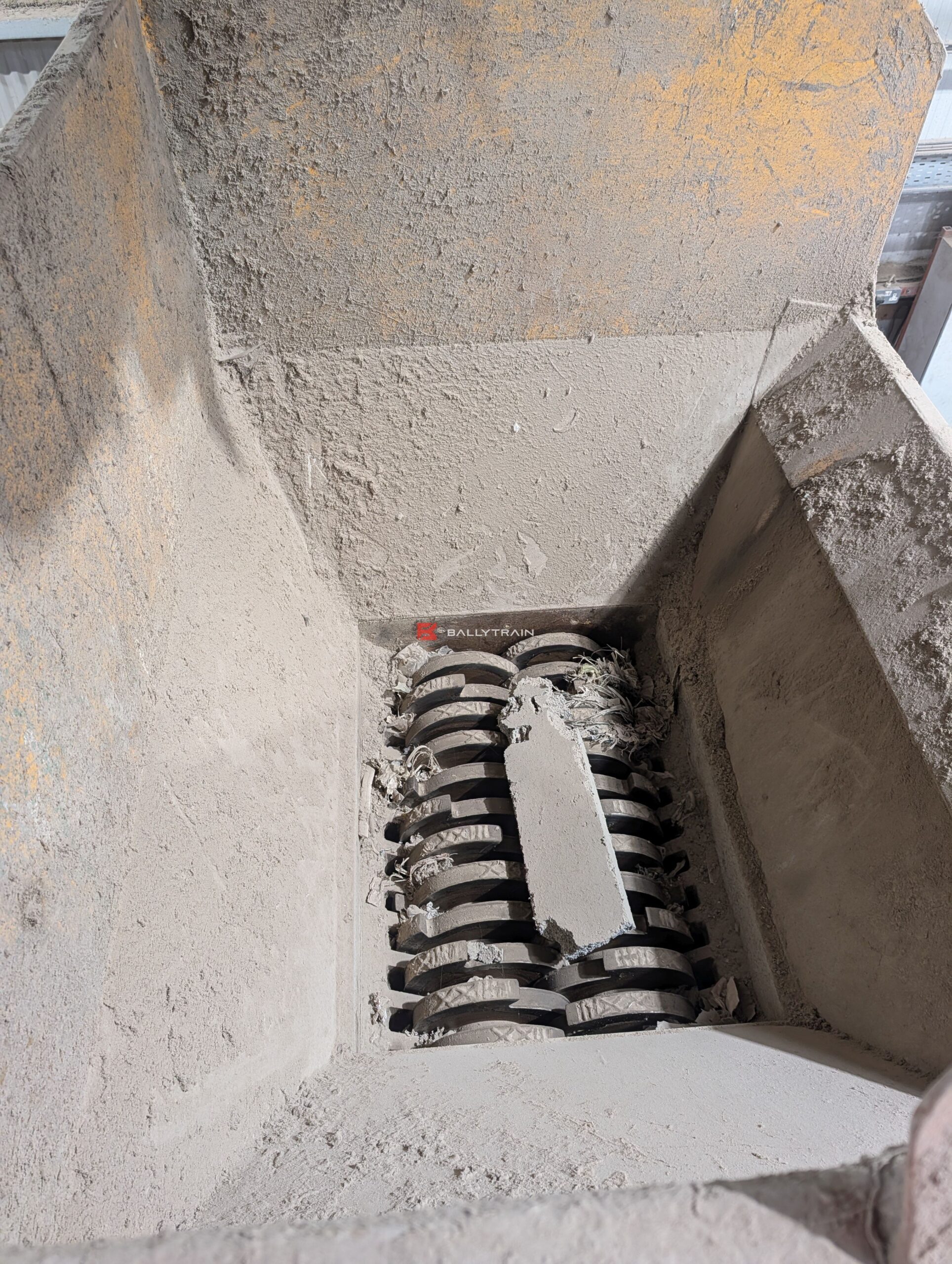

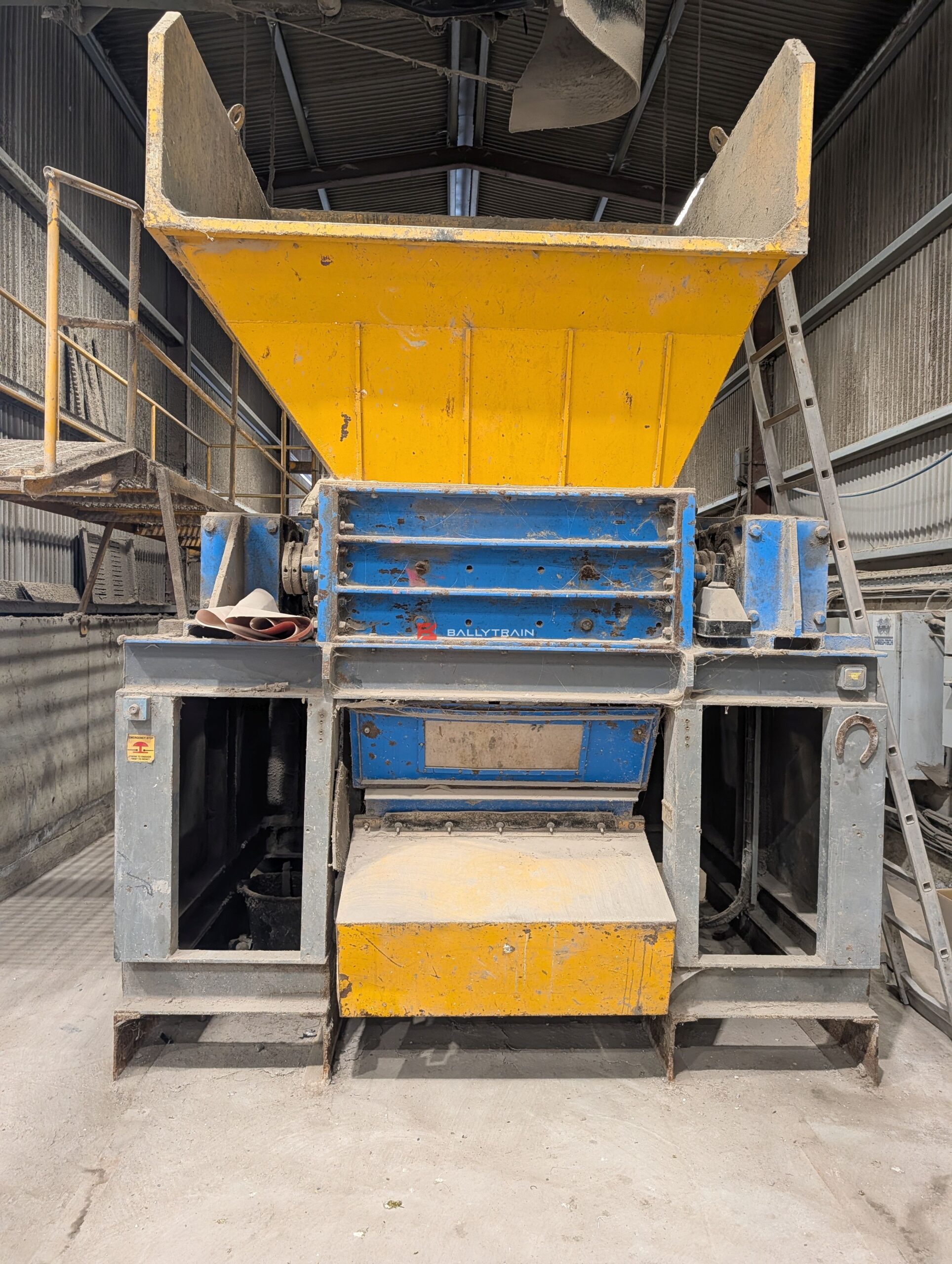

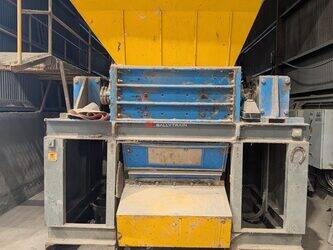

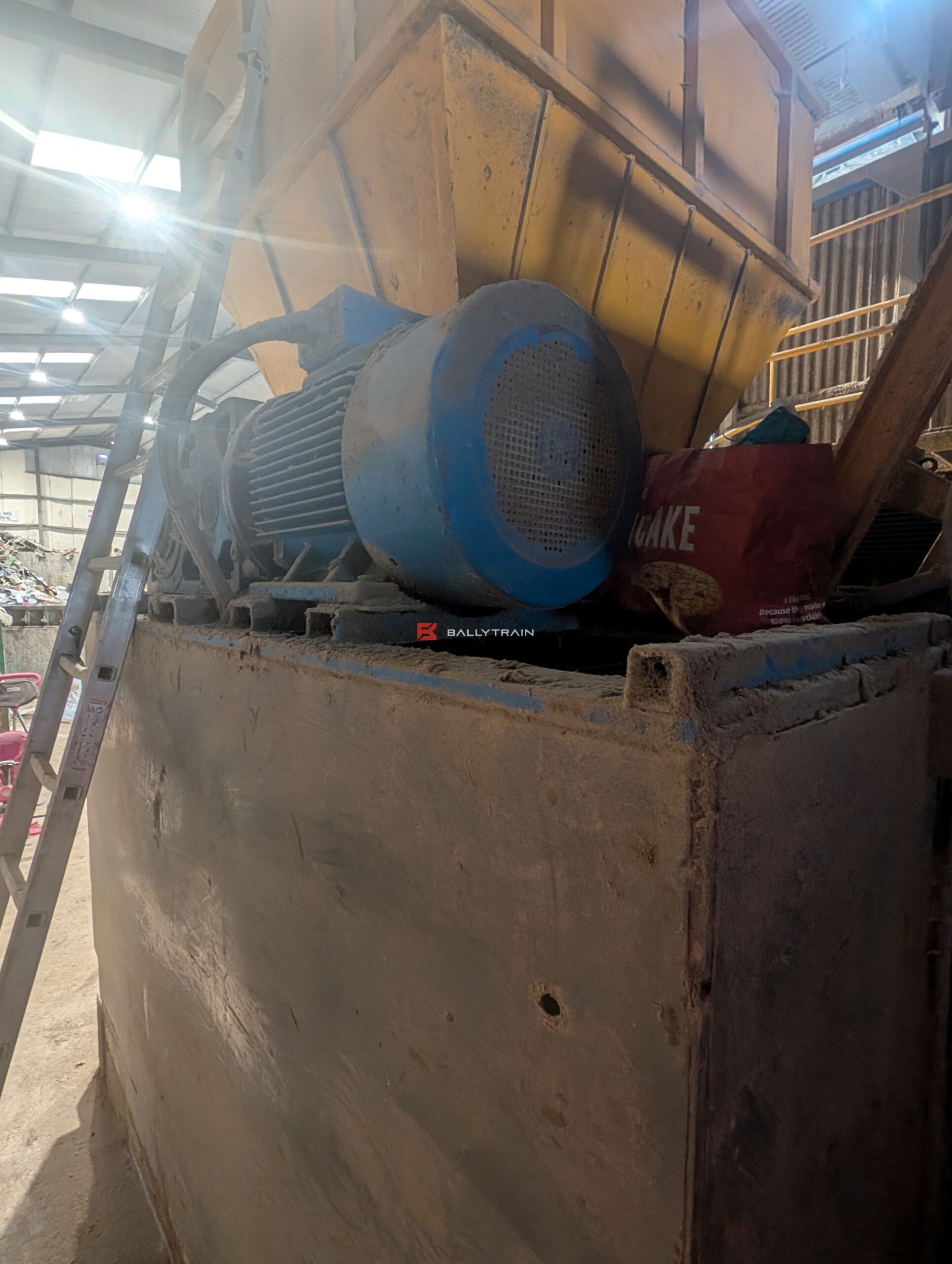

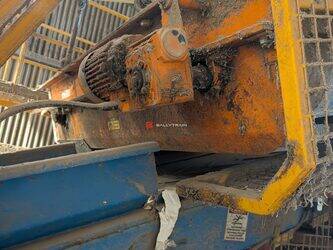

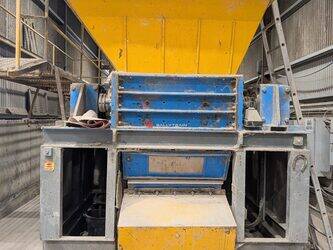

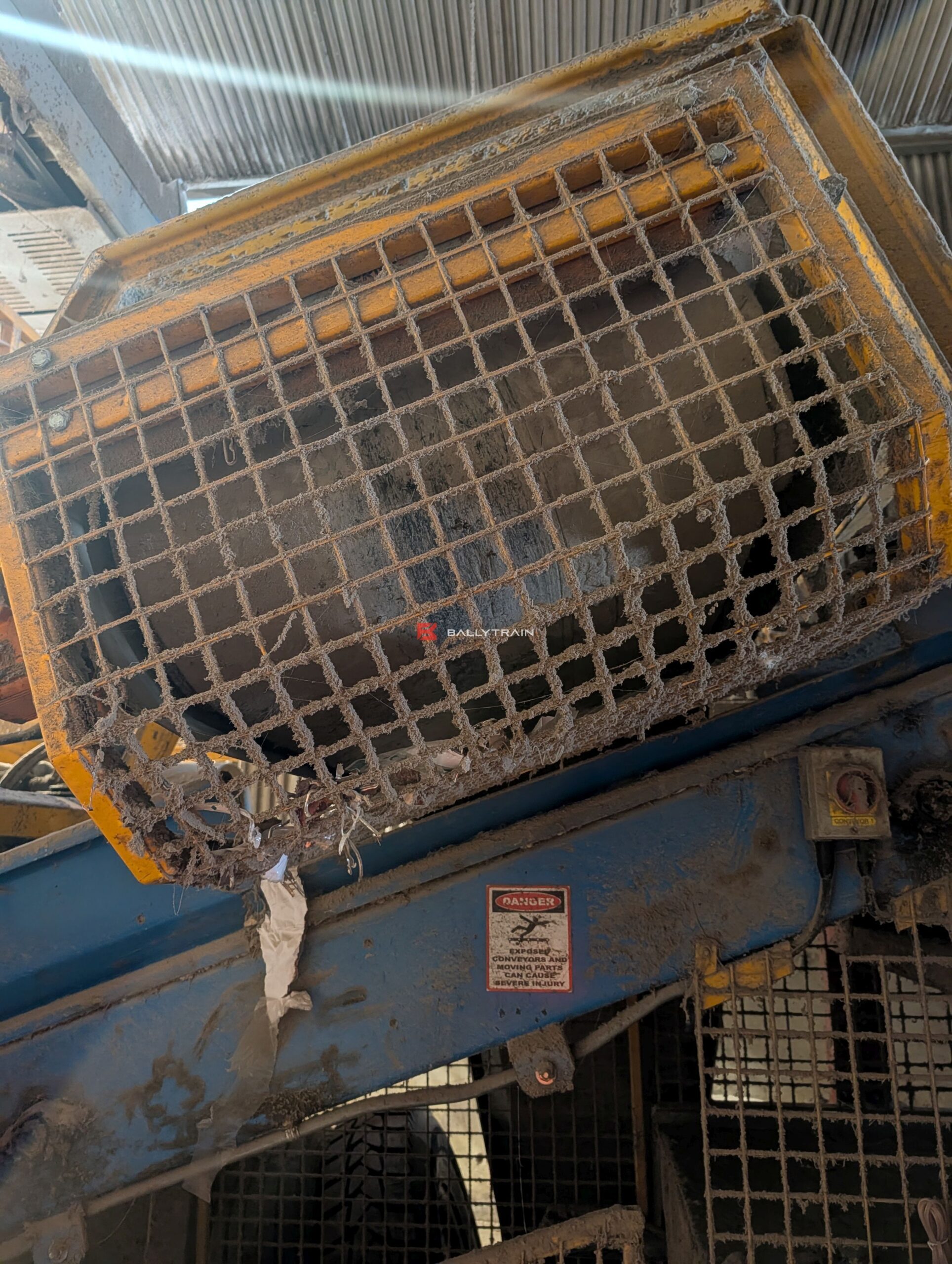

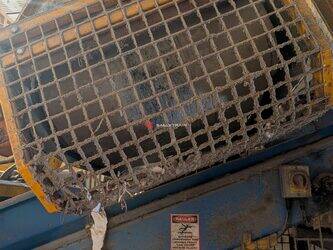

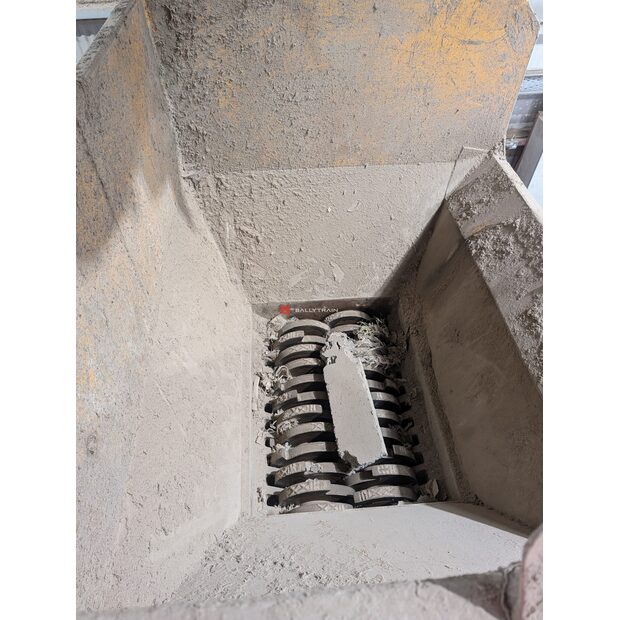

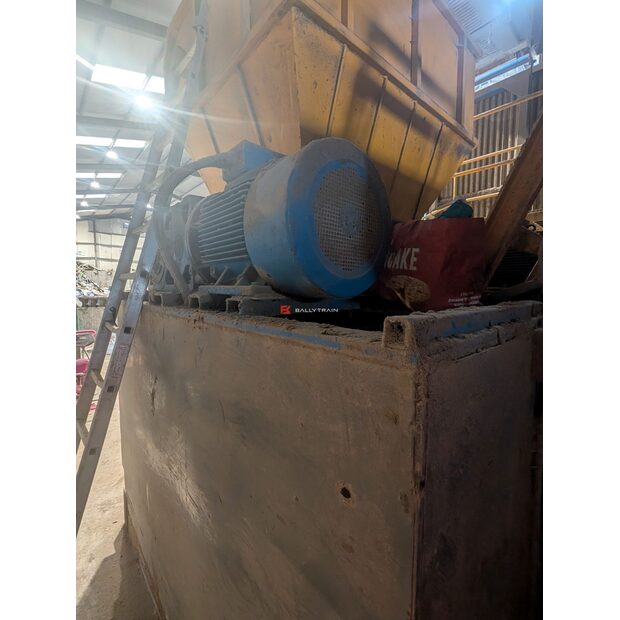

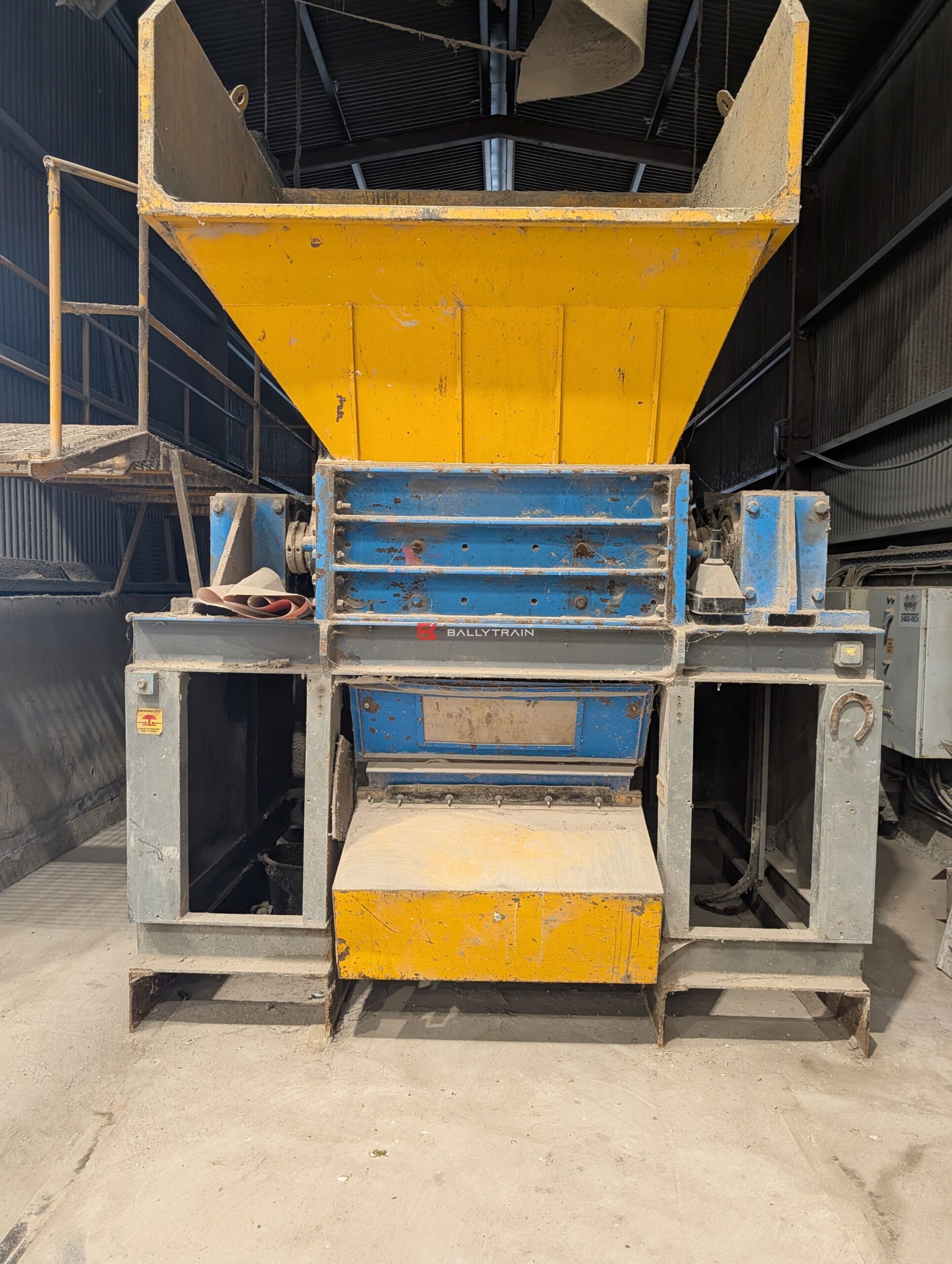

Shred-Tech:

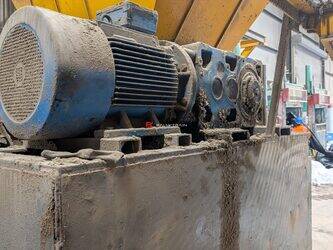

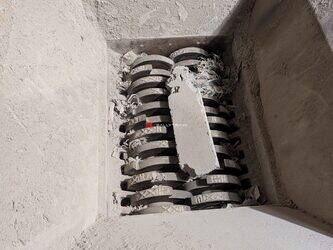

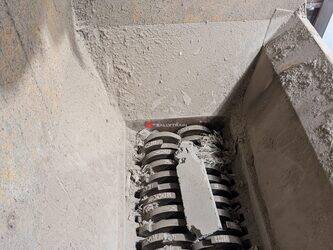

Model ST35 â Shred Tech Cutting Blade Width â 2â Motor size: ⢠Power Output: 45kw. ⢠Frame Size: 225 mm (shaft center height to base). ⢠Insulation Class: Class F (155°C). ⢠Protection Class: IP55 (dust and water jet resistant). ⢠Cooling Method: IC411 (Self-ventilated via a fan protected by a cowl). ⢠Duty Cycle: S1 (Continuous Operation).

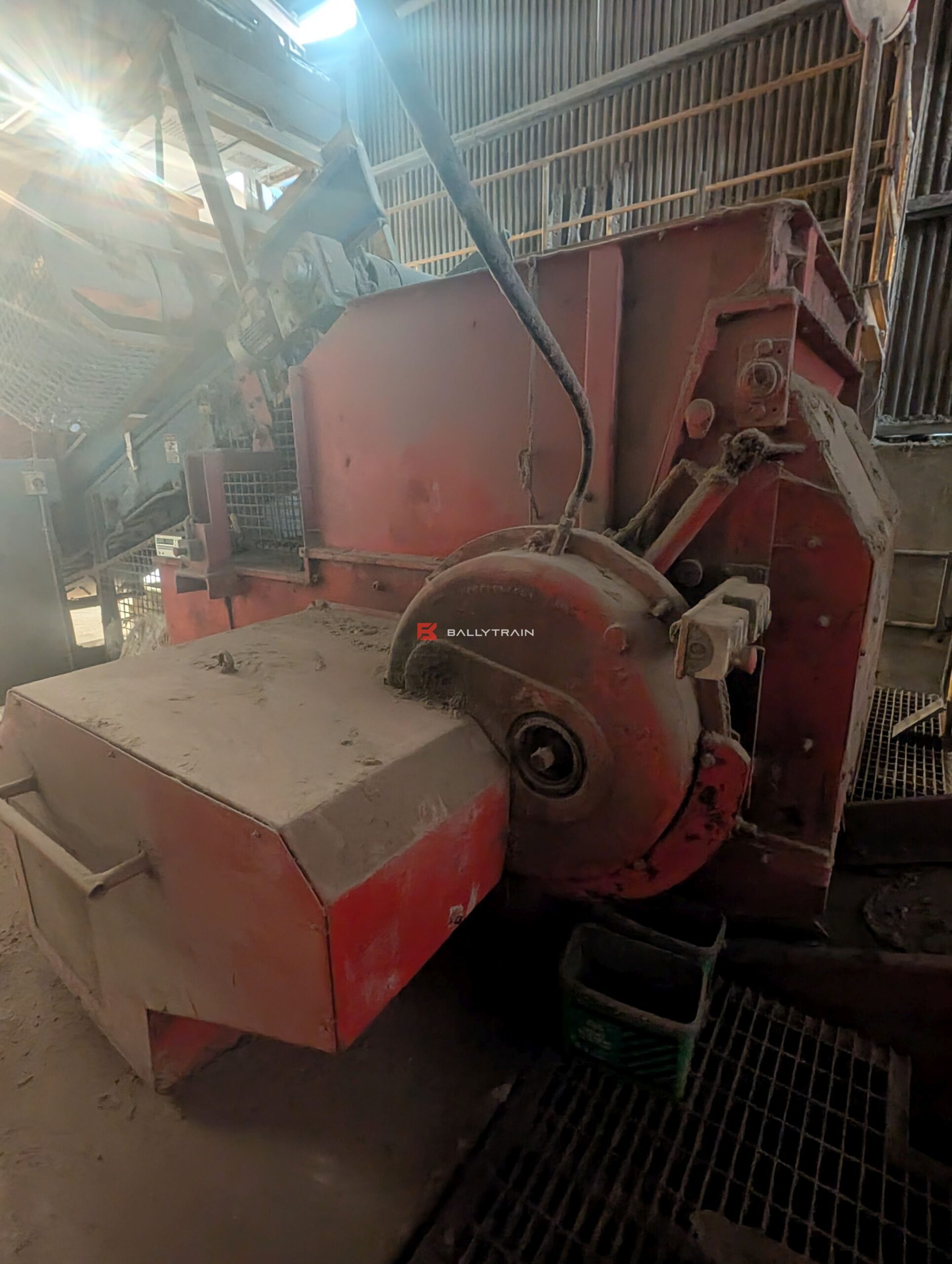

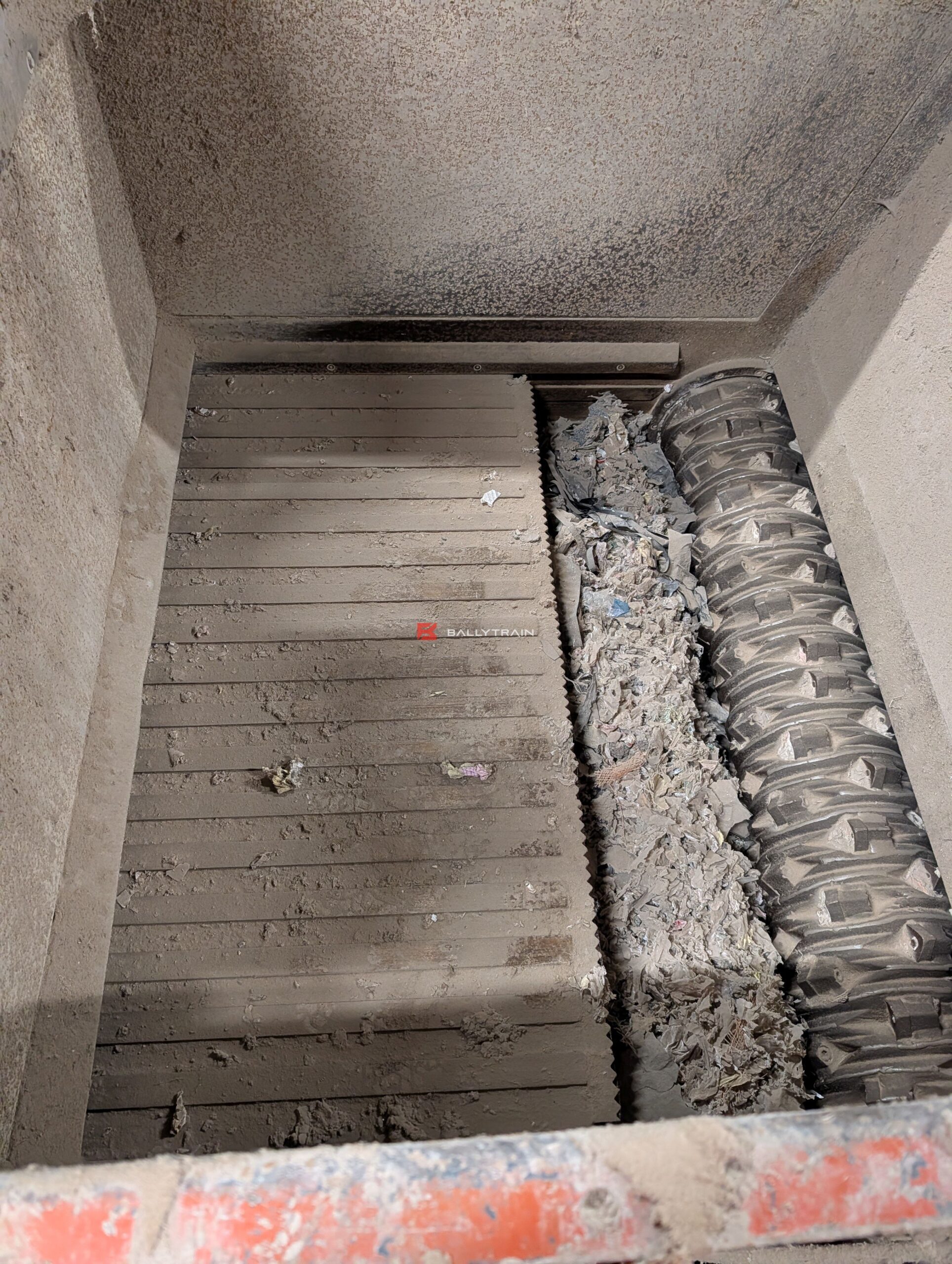

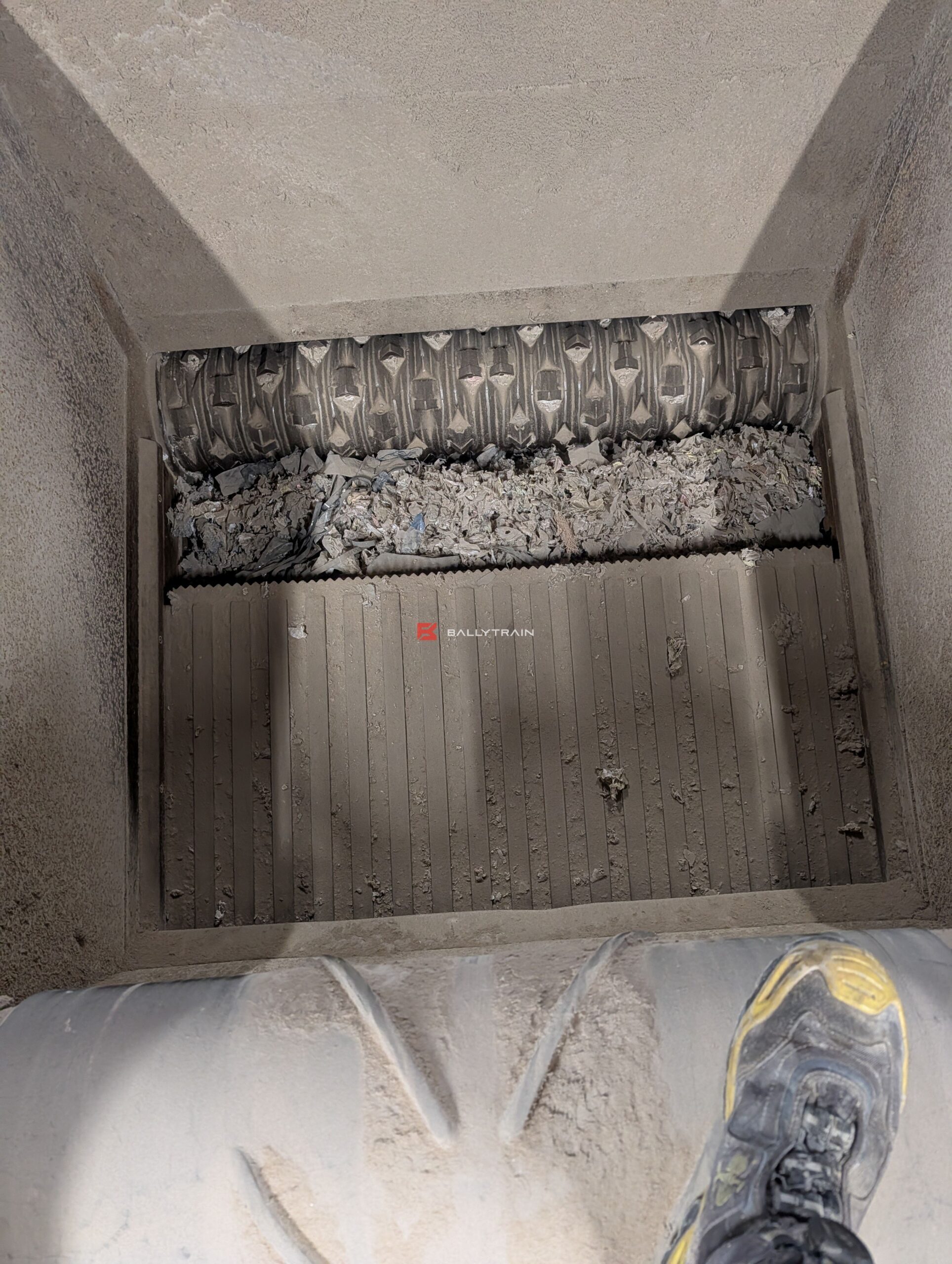

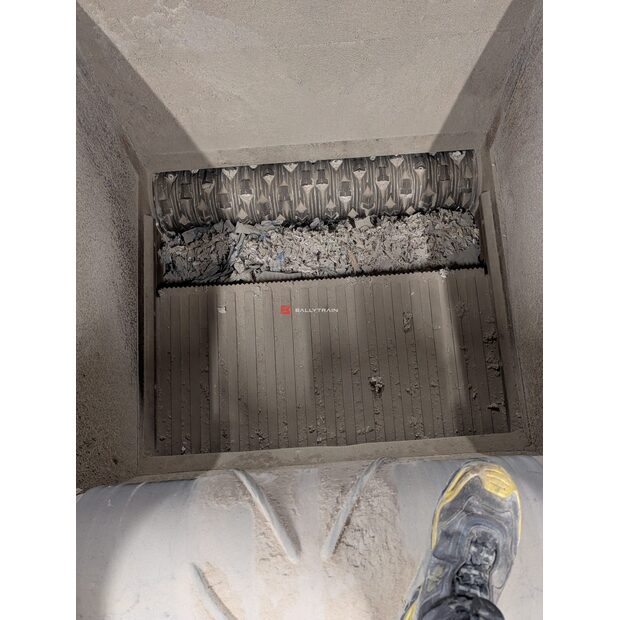

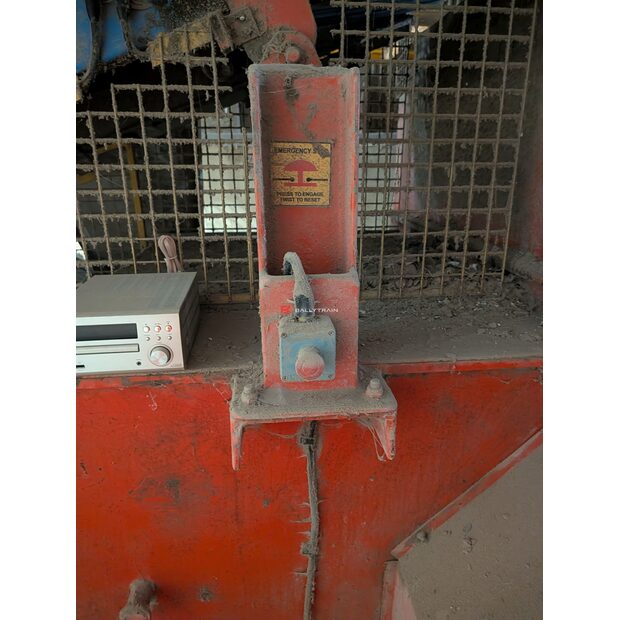

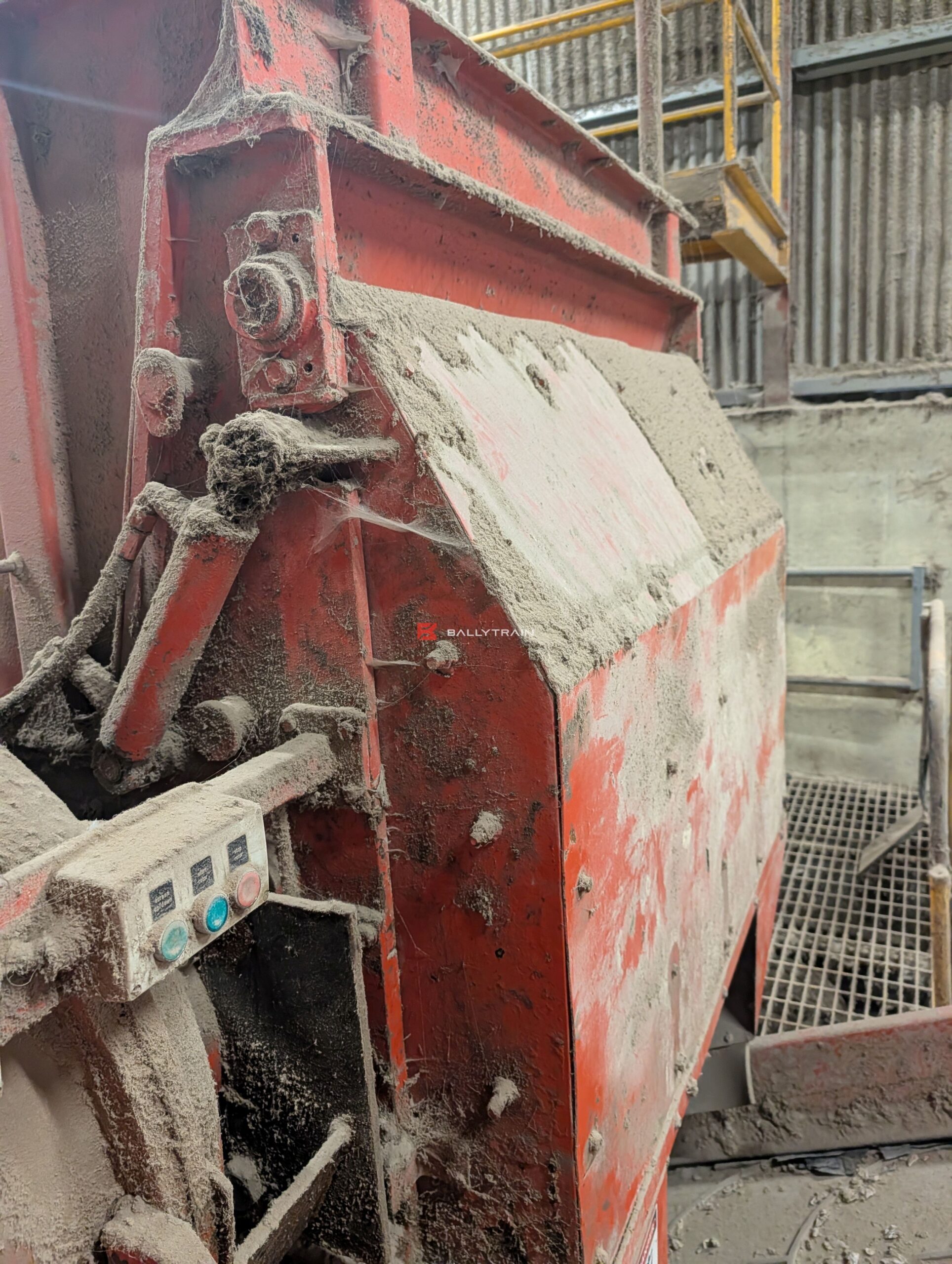

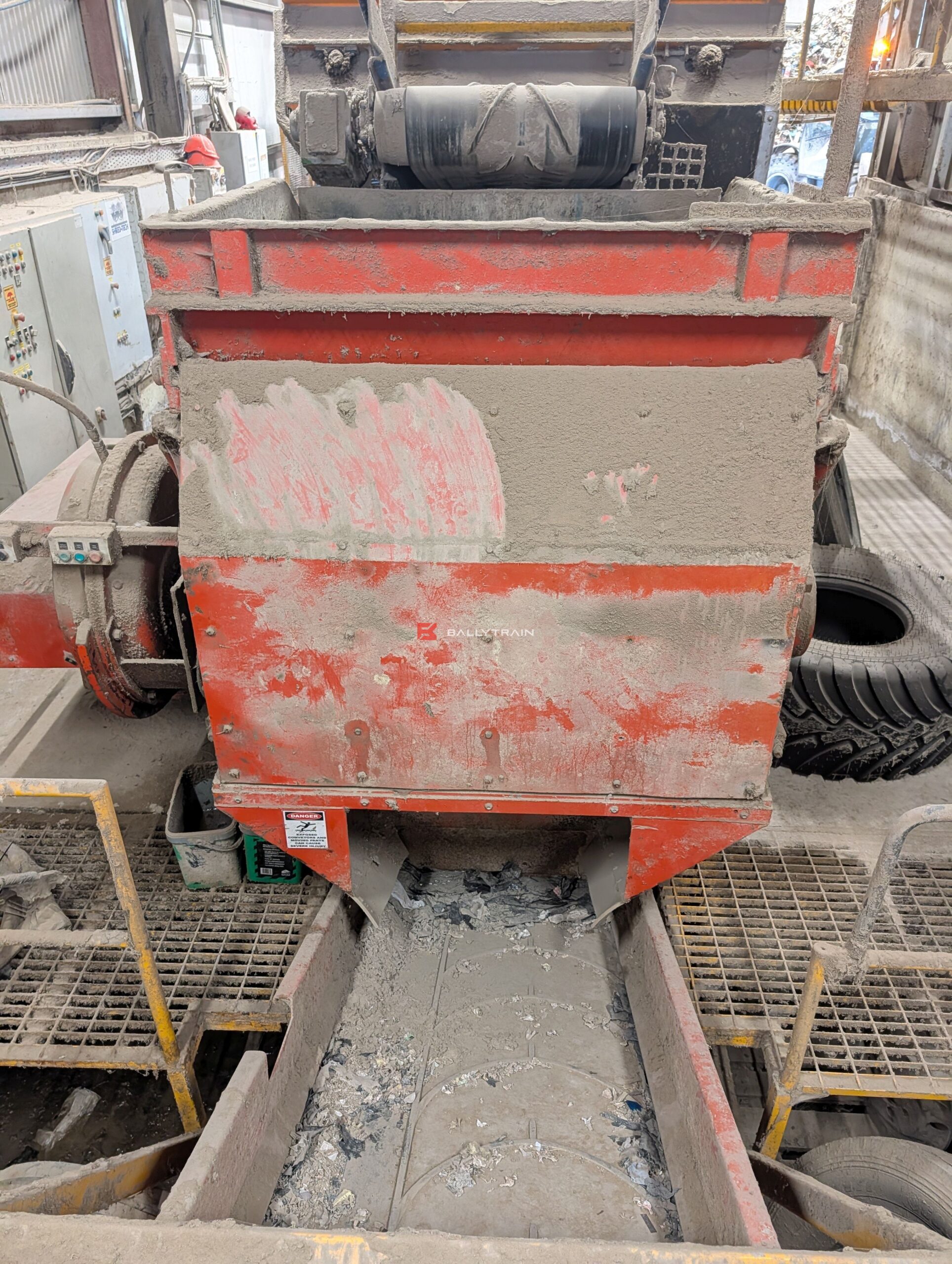

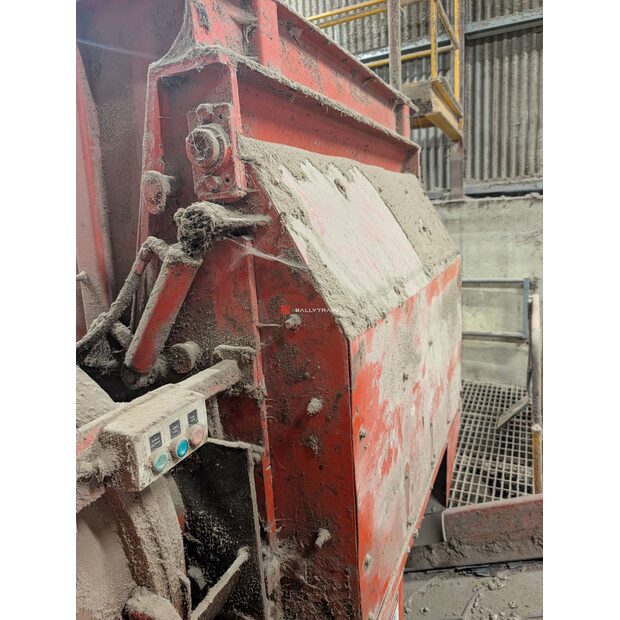

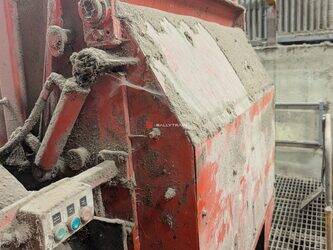

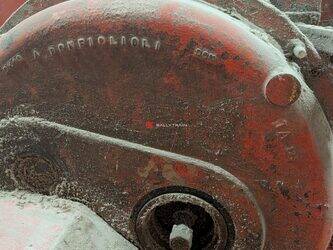

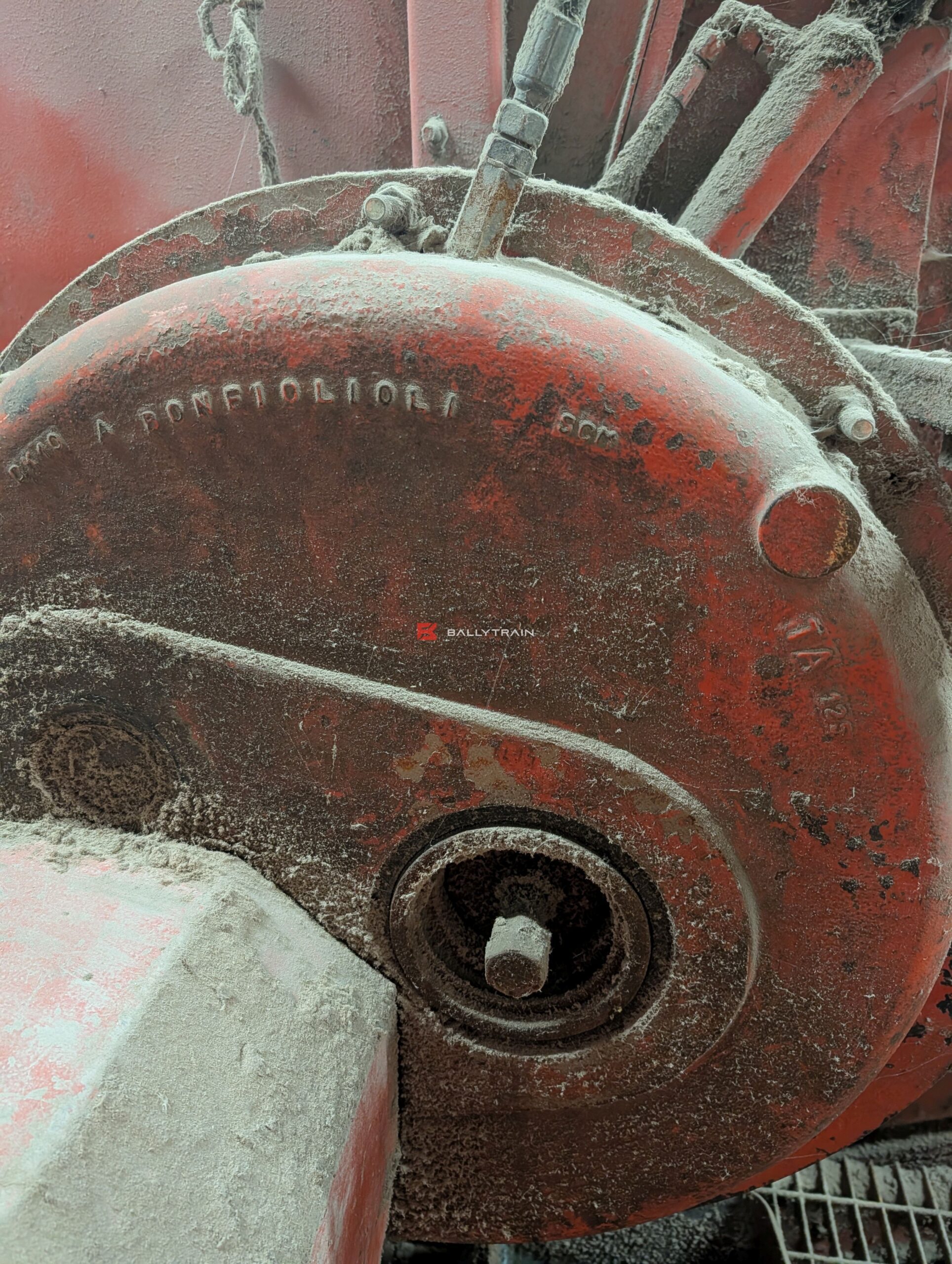

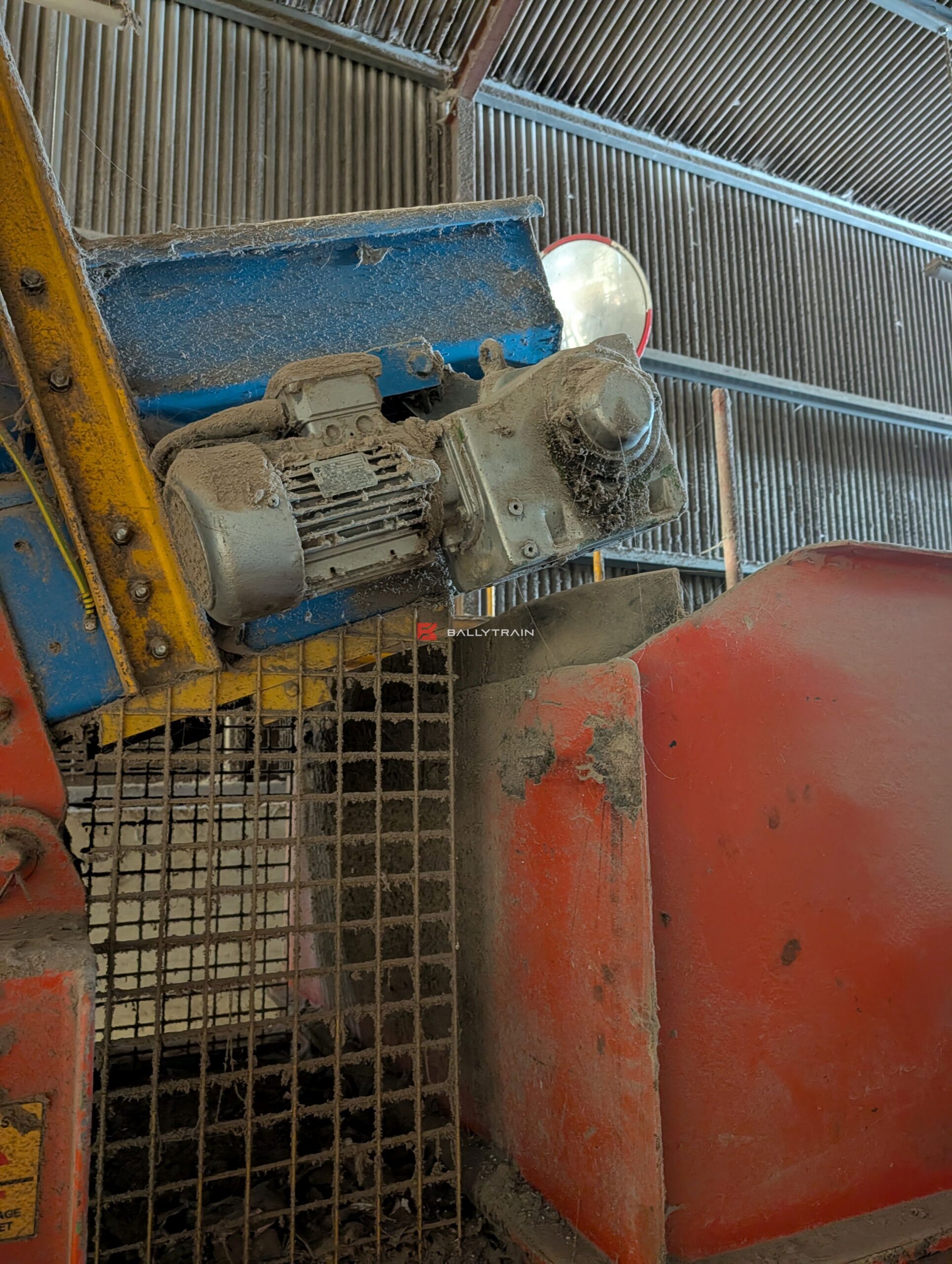

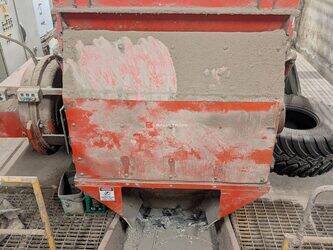

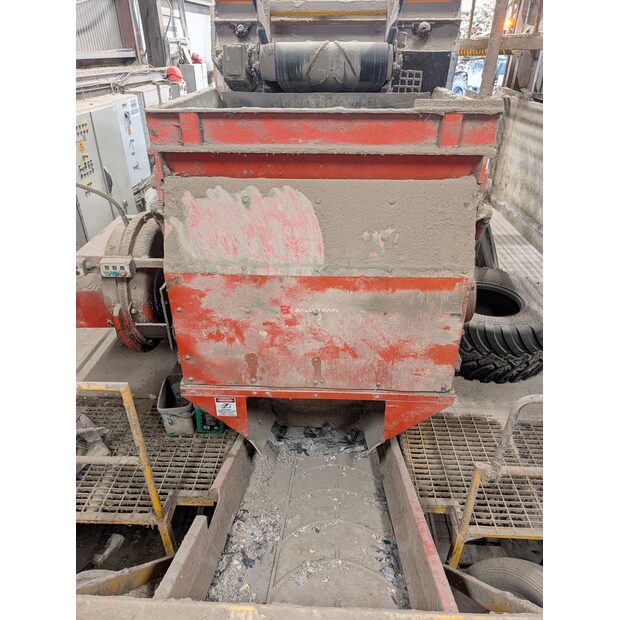

Weima:

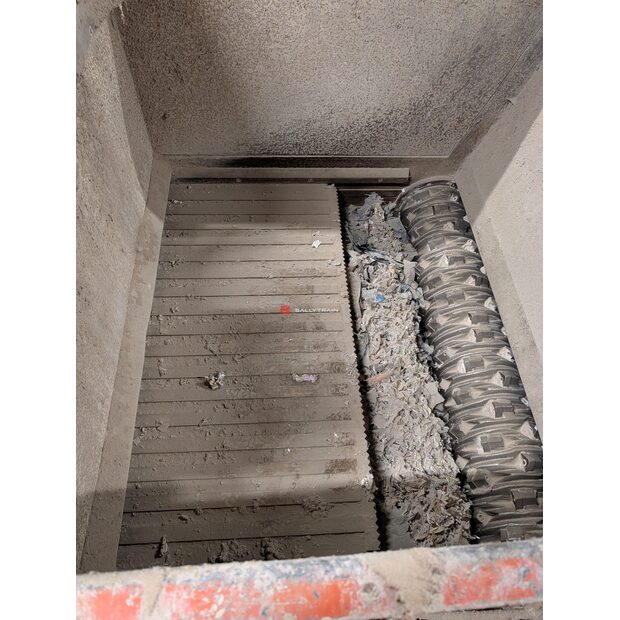

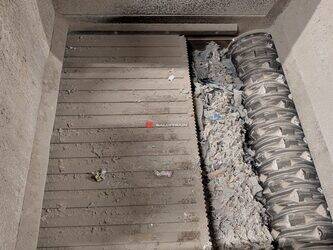

Motor size: 75KW 30mm Screen Size Round Holes Throughput capability on the waste you were shredding: 2 tonnes per hour

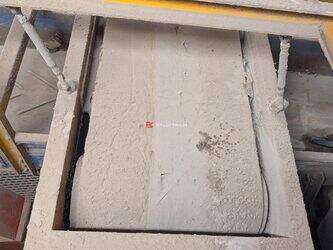

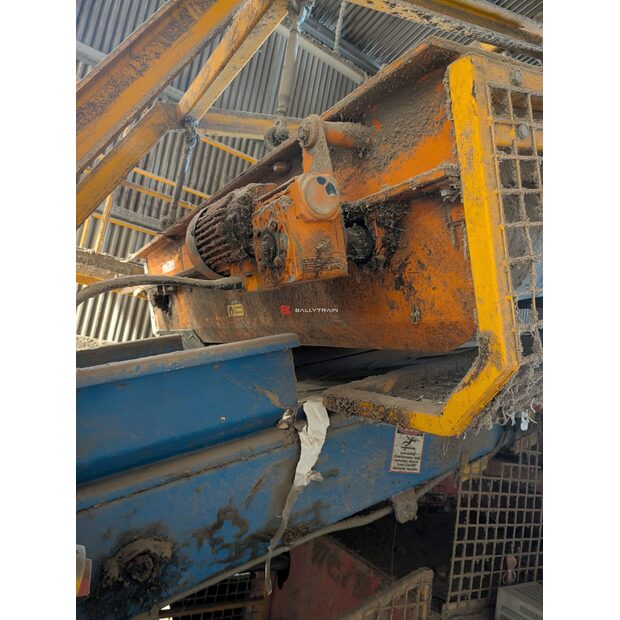

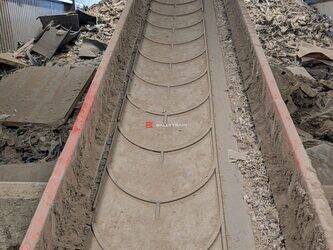

Intermediate Conveyor (With Overband Magnet Fitted):
Length: 4700mm Belt width: 785mm Motor size: 1.5KW

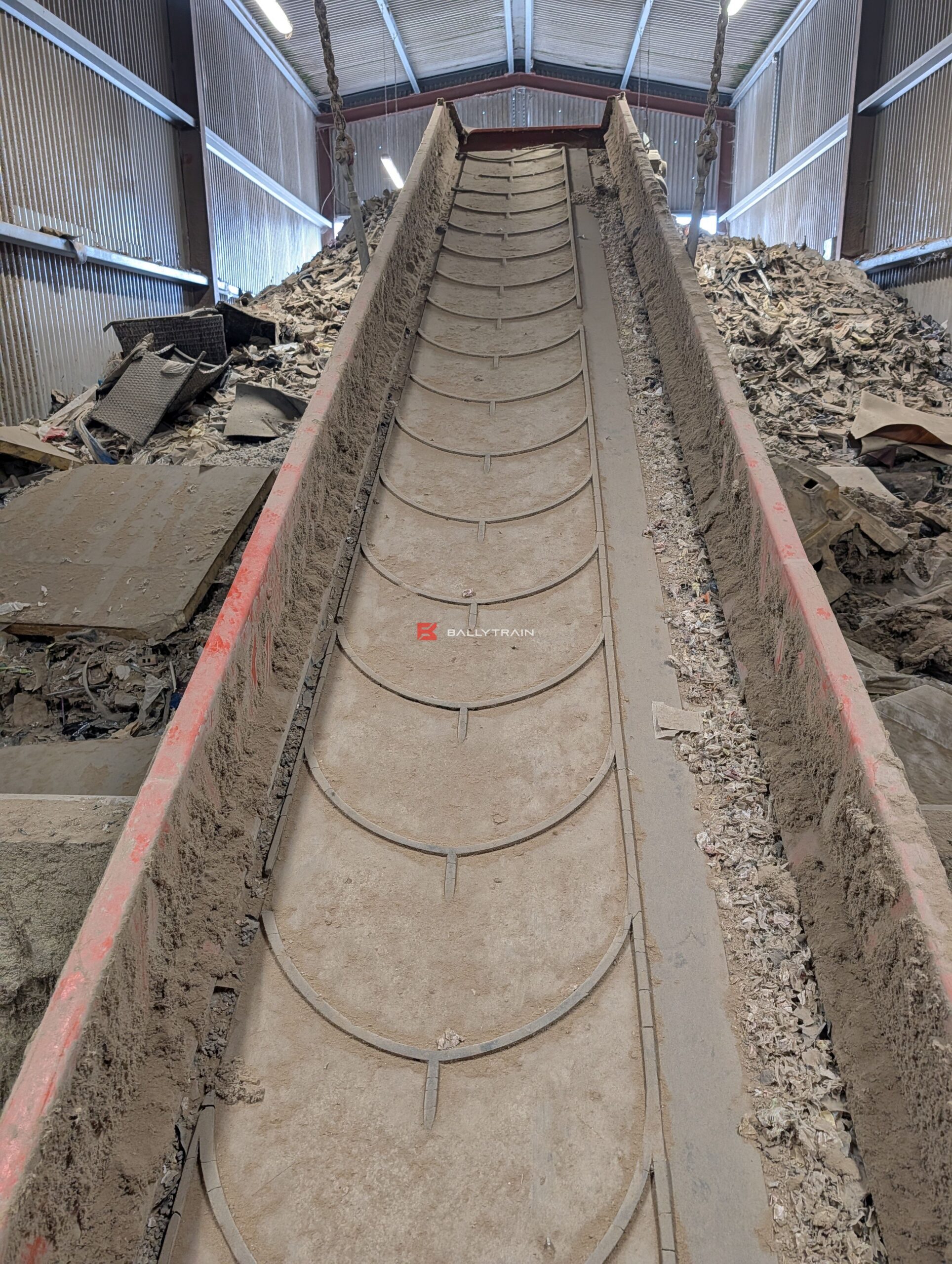

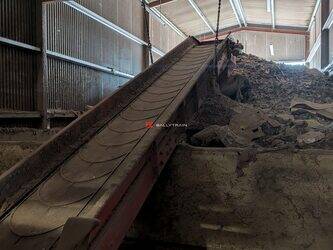

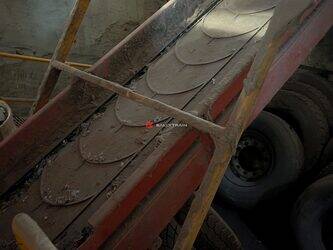

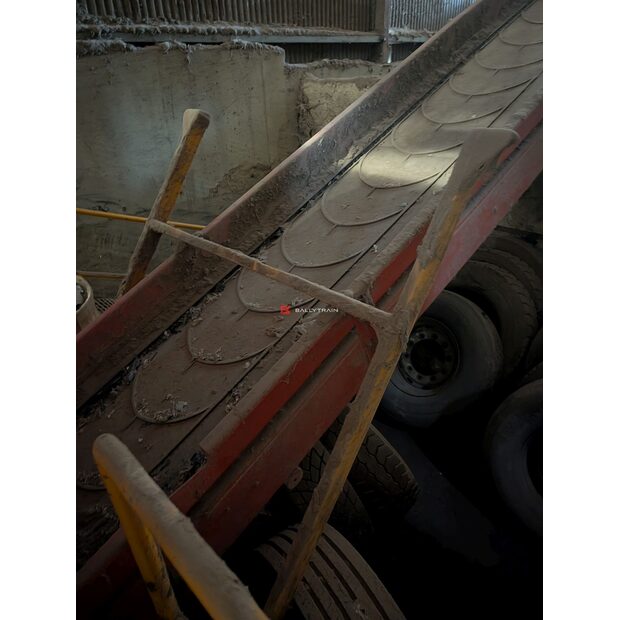

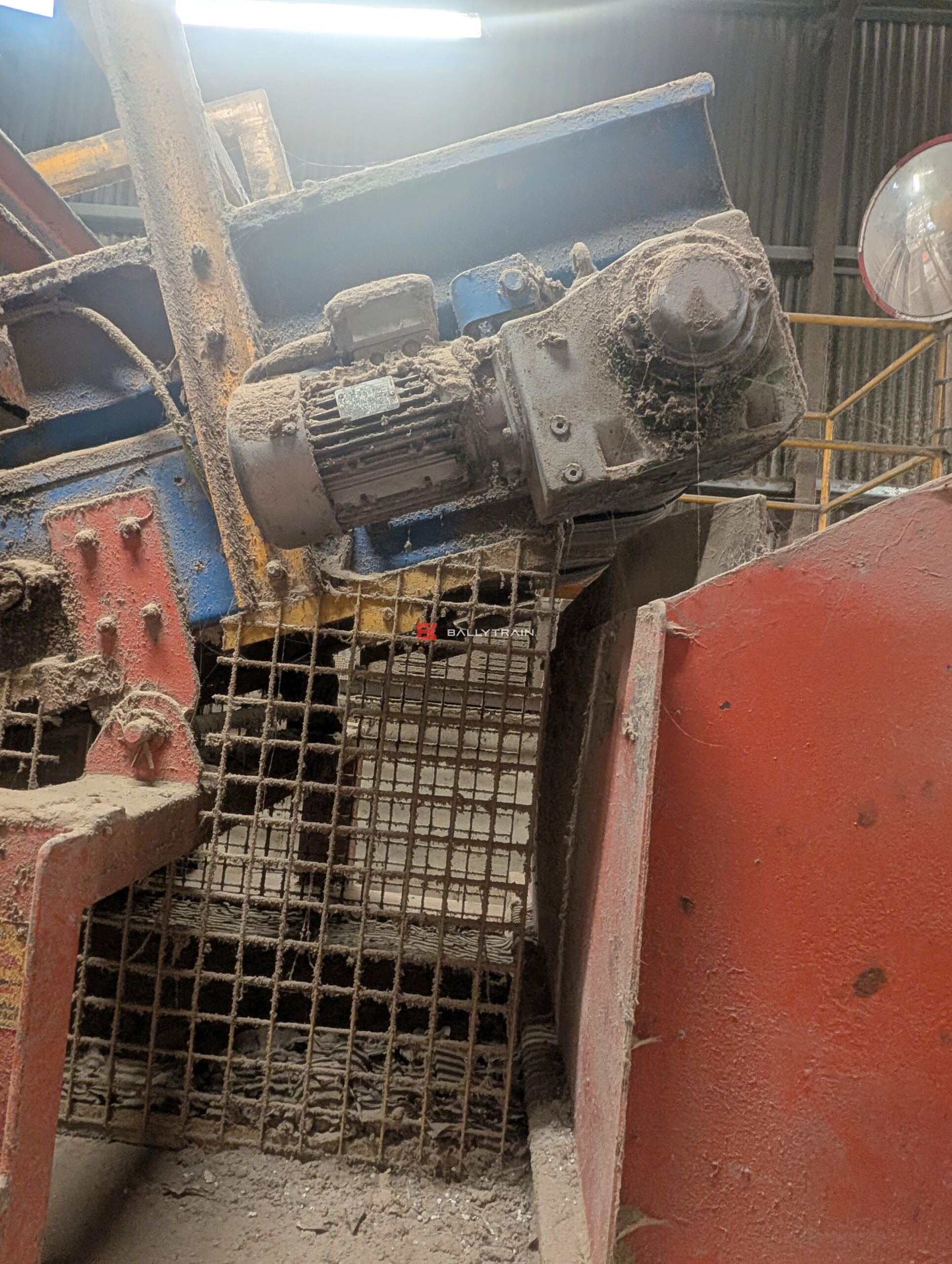

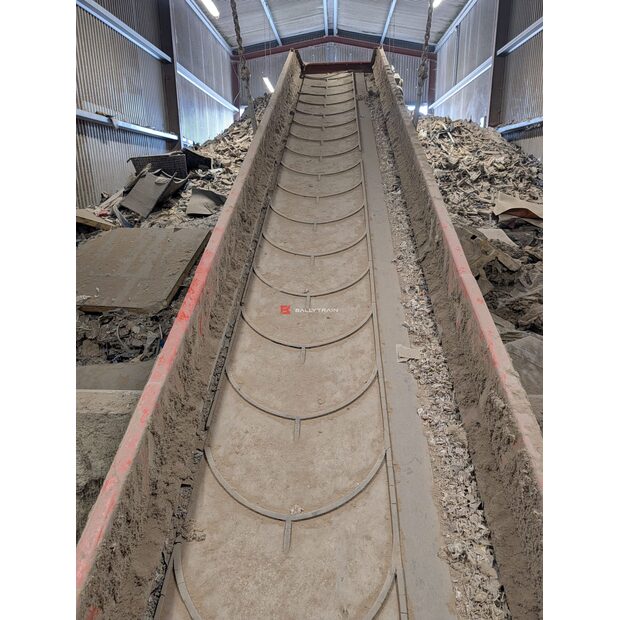

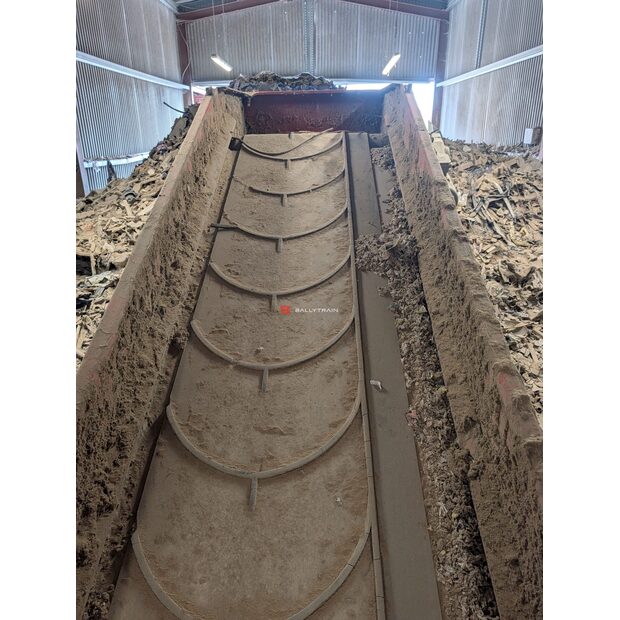

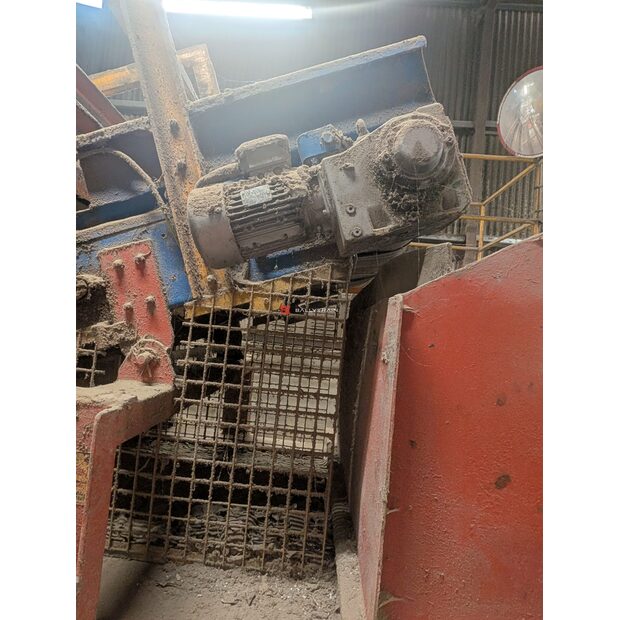

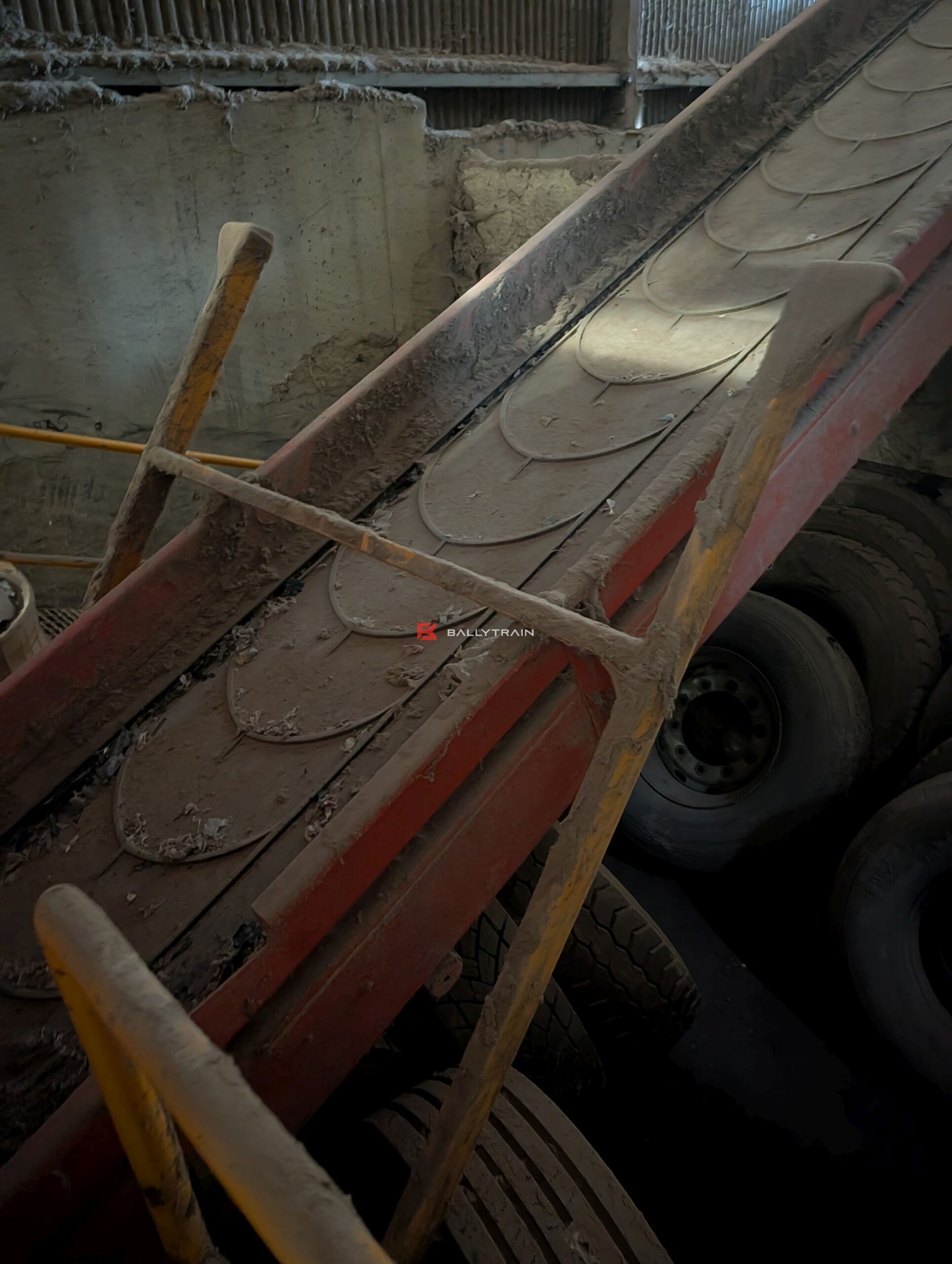

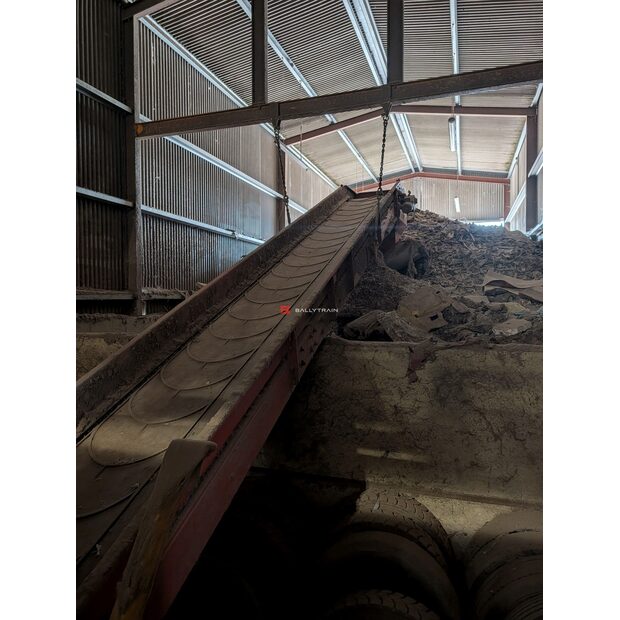

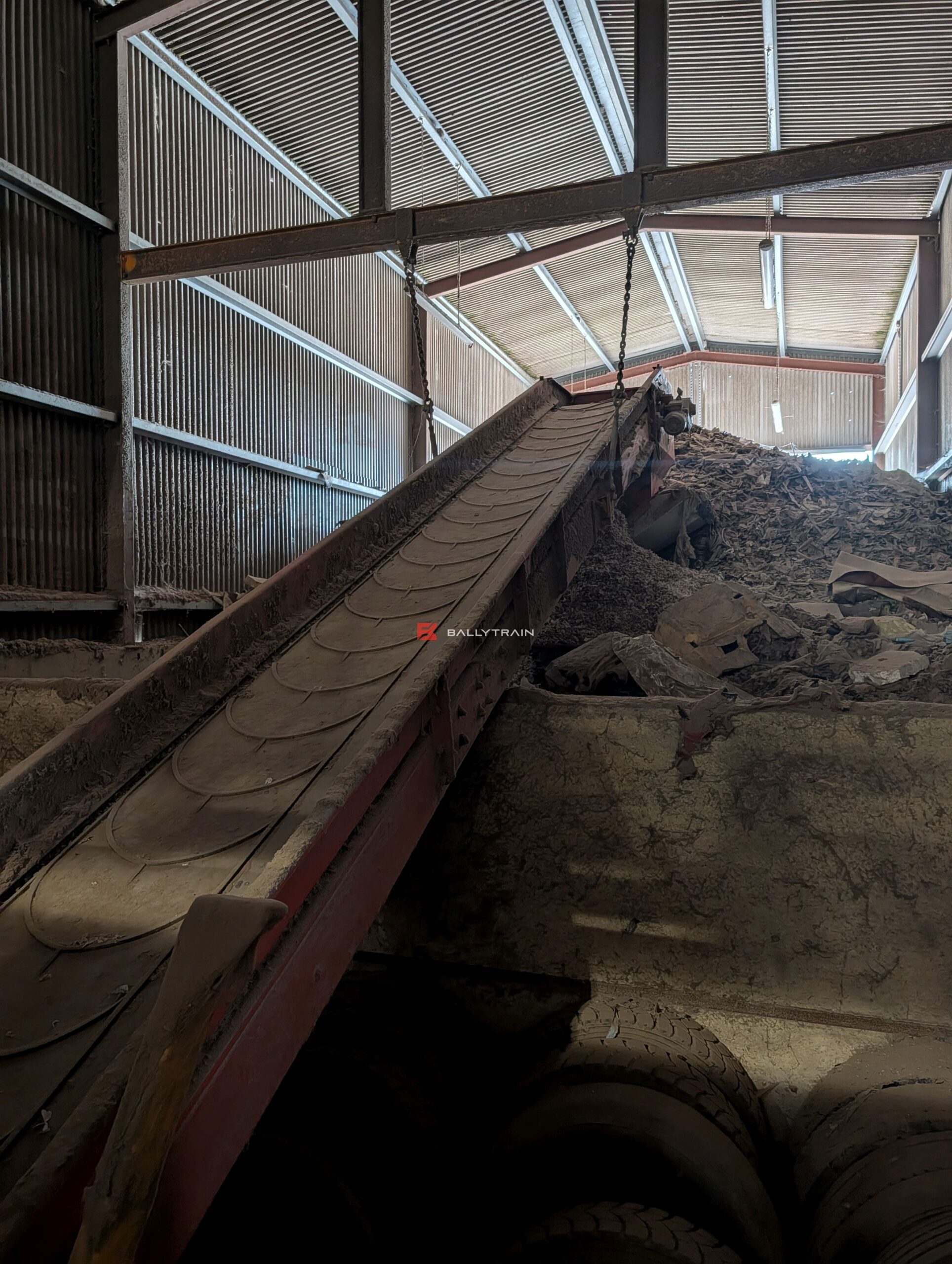

Turmec Conveyor:

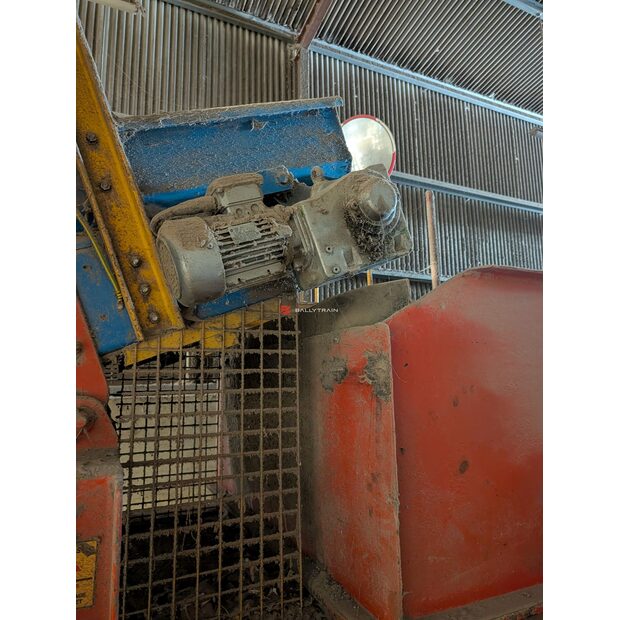

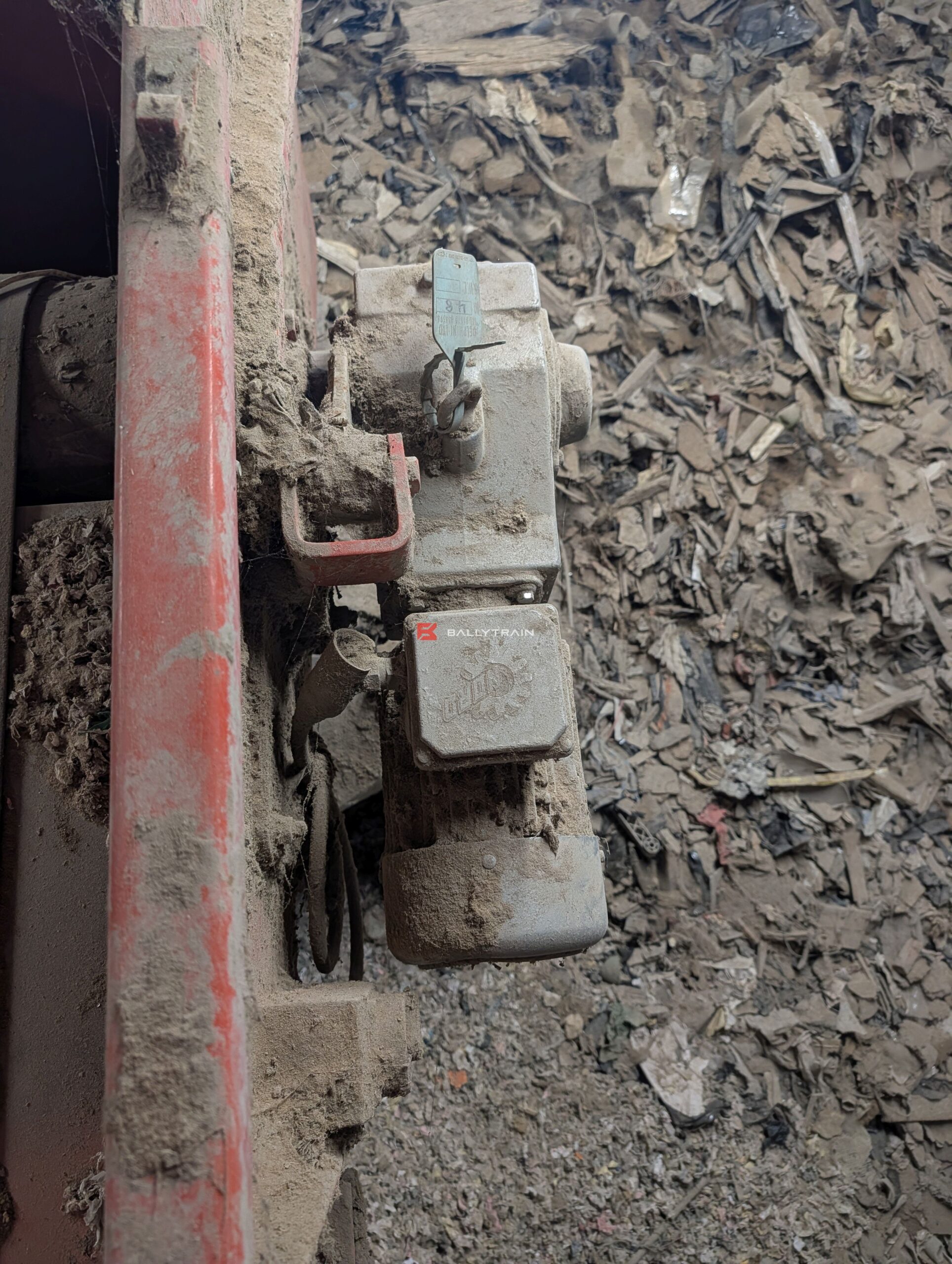

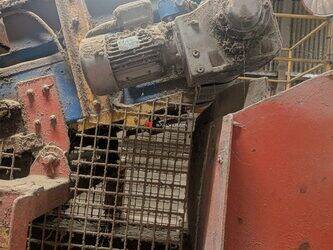

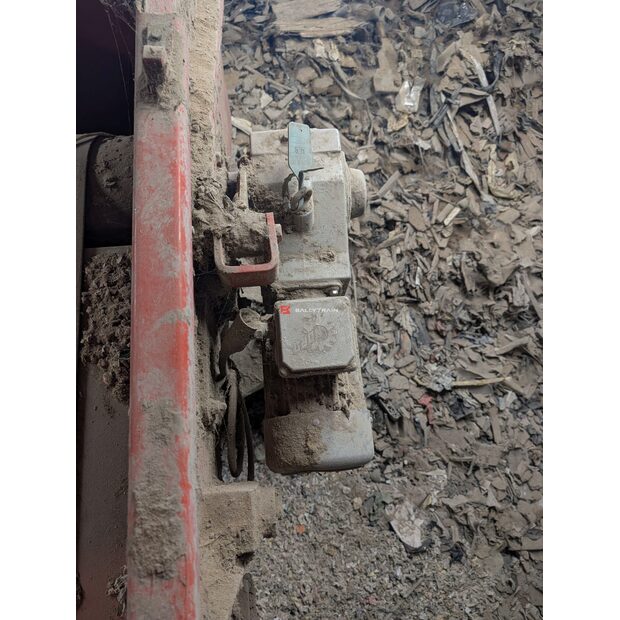

Discharge height â 7 Metres Length â 10 metres Width â 1 metre Motor size: 1.5KW Motor Brand: Nord Typ SK 90L/4 ⢠Motor Type: Three-phase AC asynchronous motor ⢠Frame Size: 90L ⢠Poles: 4 ⢠Rated Power: 1.5 kW (2.0 hp) ⢠Nominal Voltage: 230/400V at 50Hz (or 460V at 60Hz) ⢠Full Load Current (\(I_{N}\)): ~3.4 A (at 400V) ⢠Starting Current Ratio (\(I_A / I_N\)): ~4.8 ⢠Insulation Class: Class F (Standard)

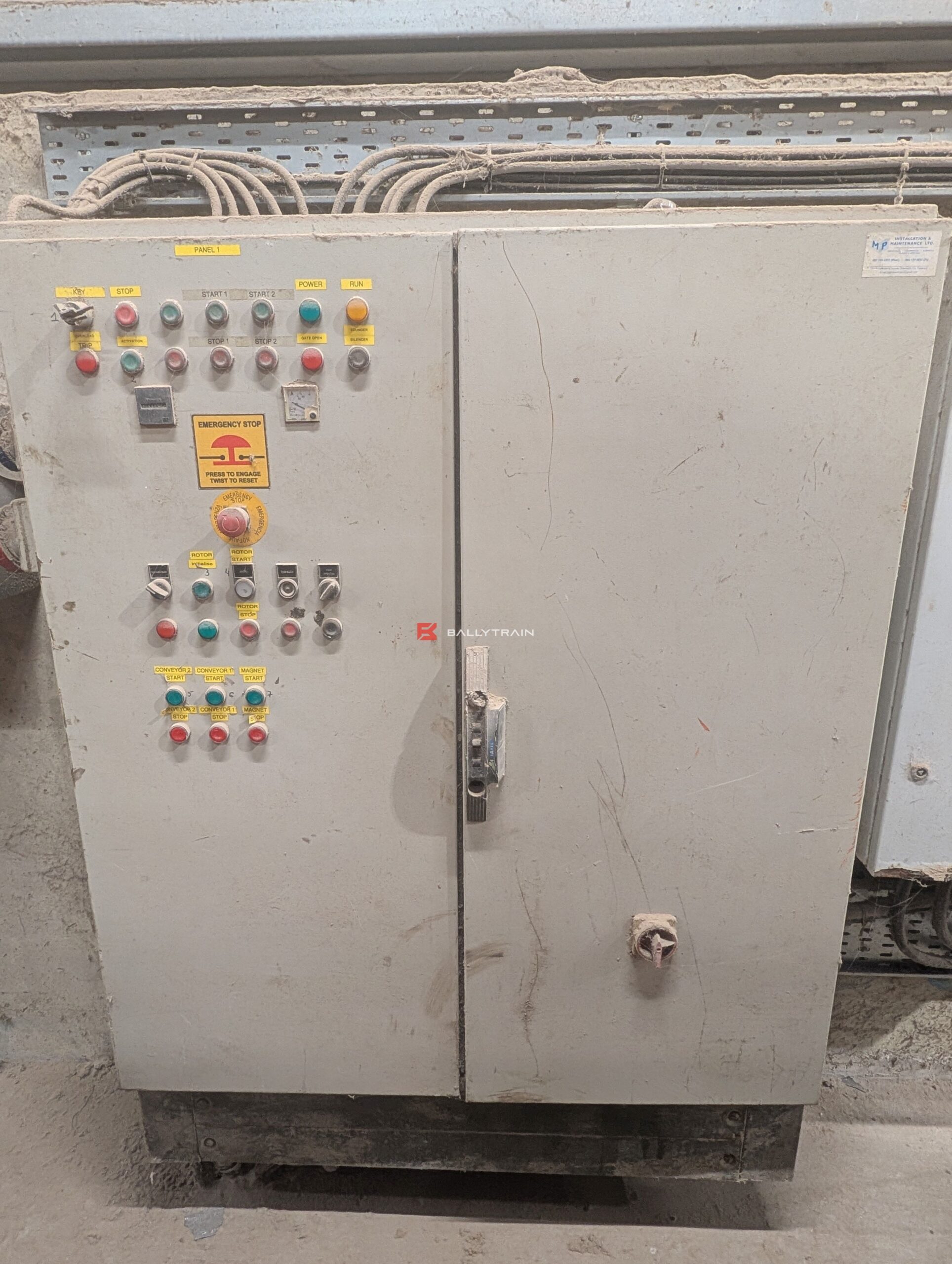

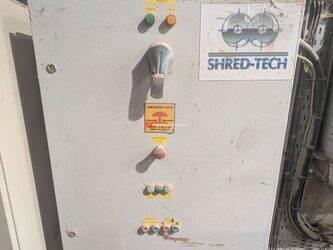

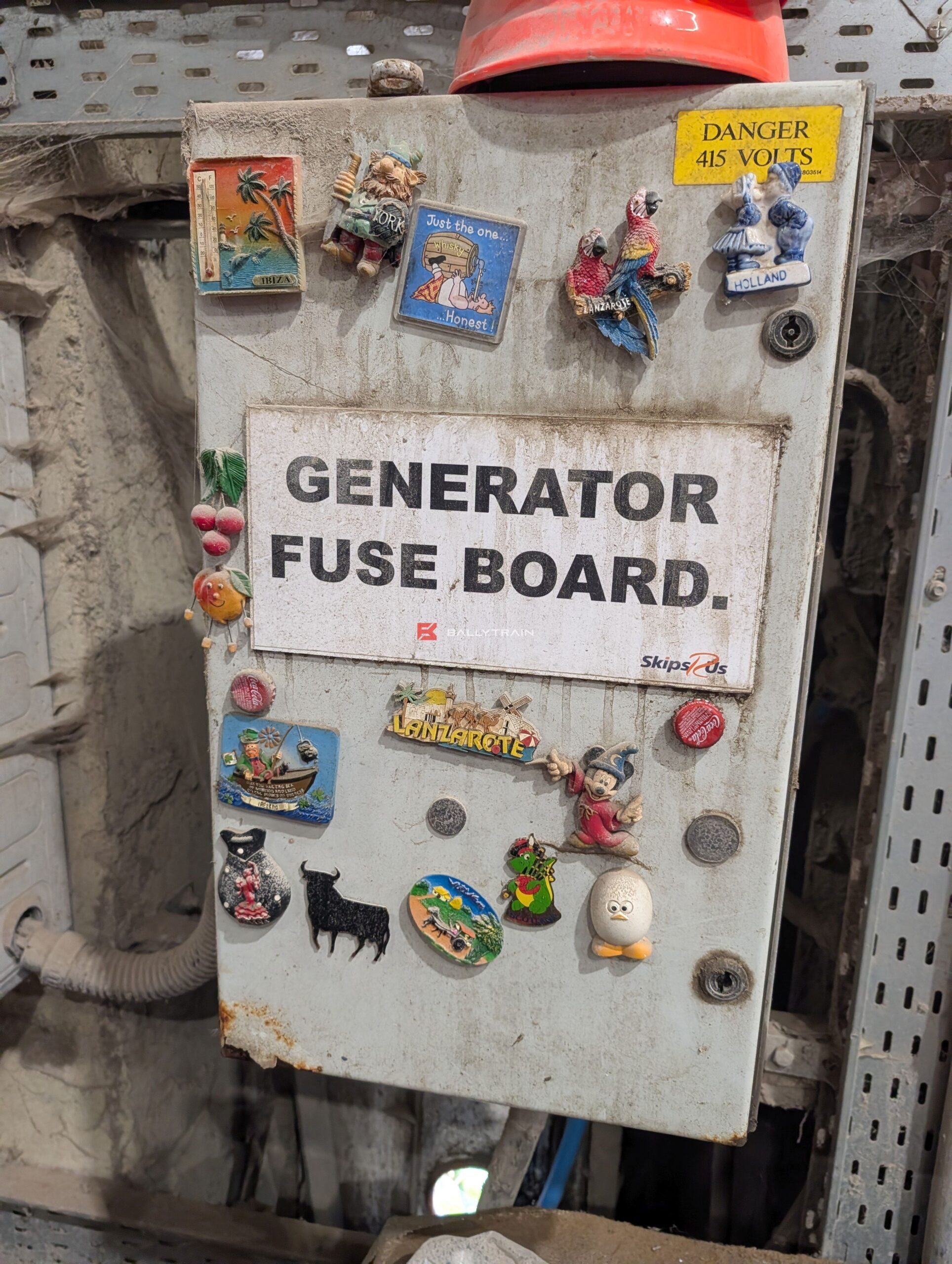

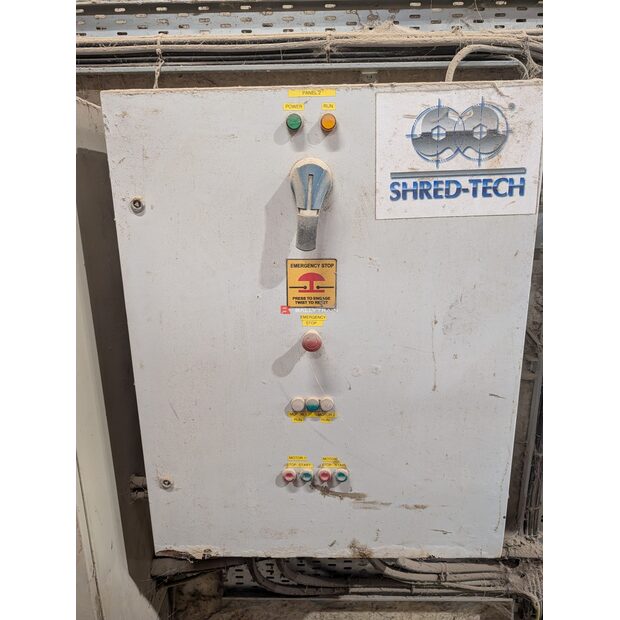

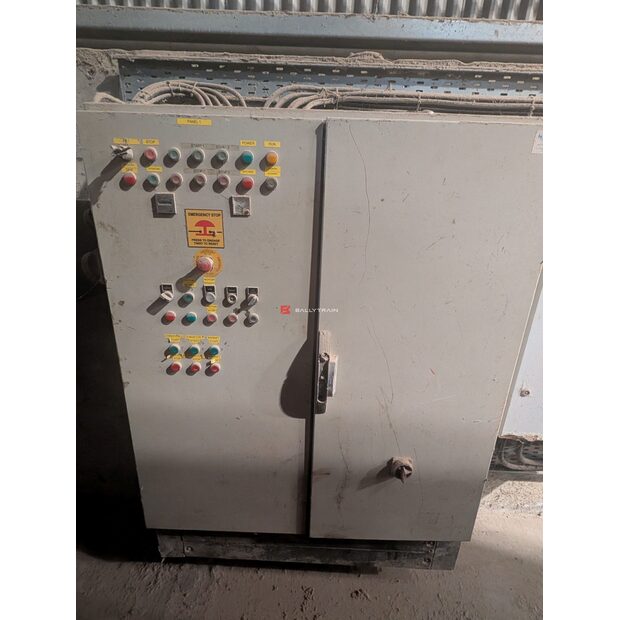

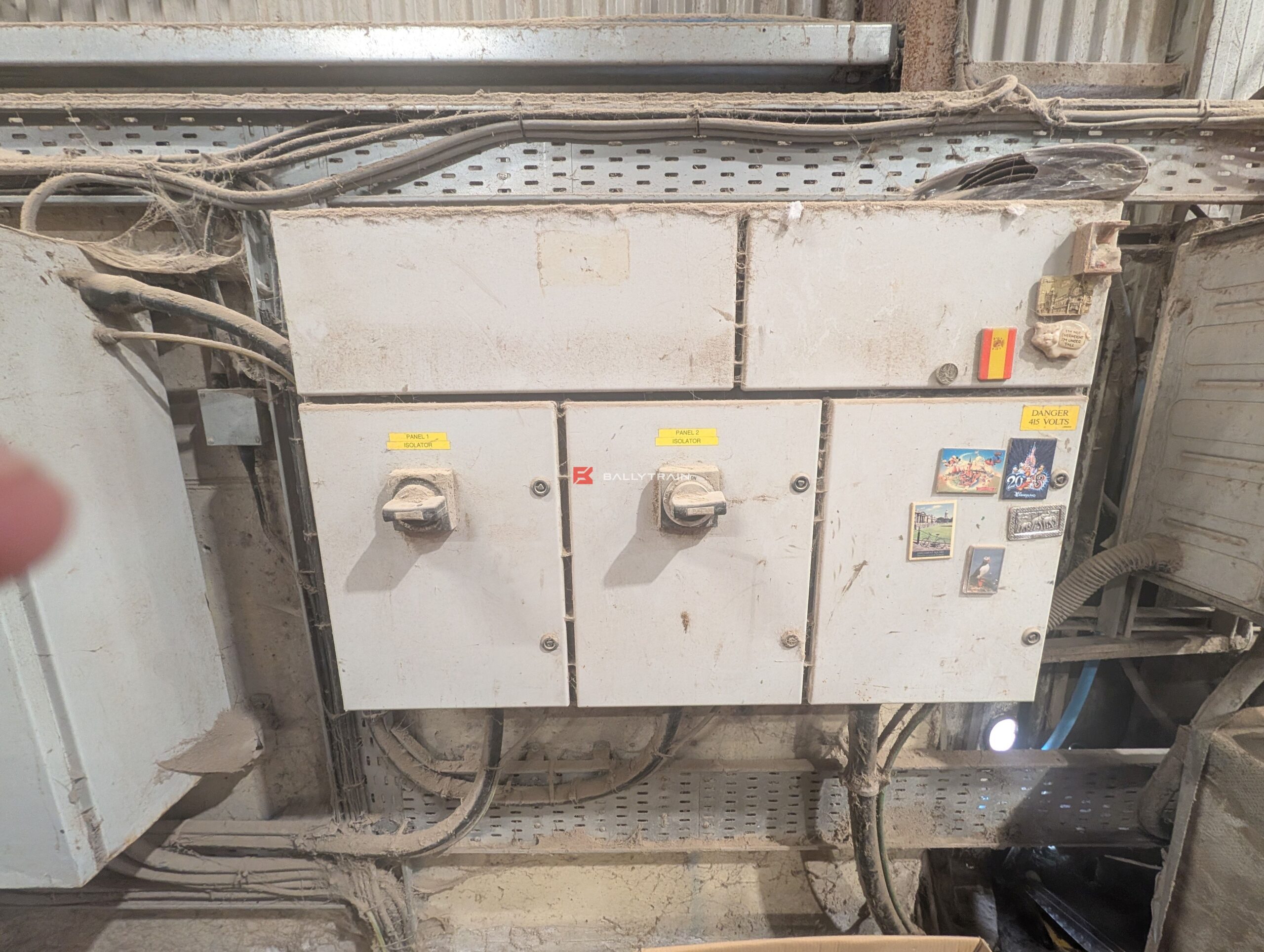

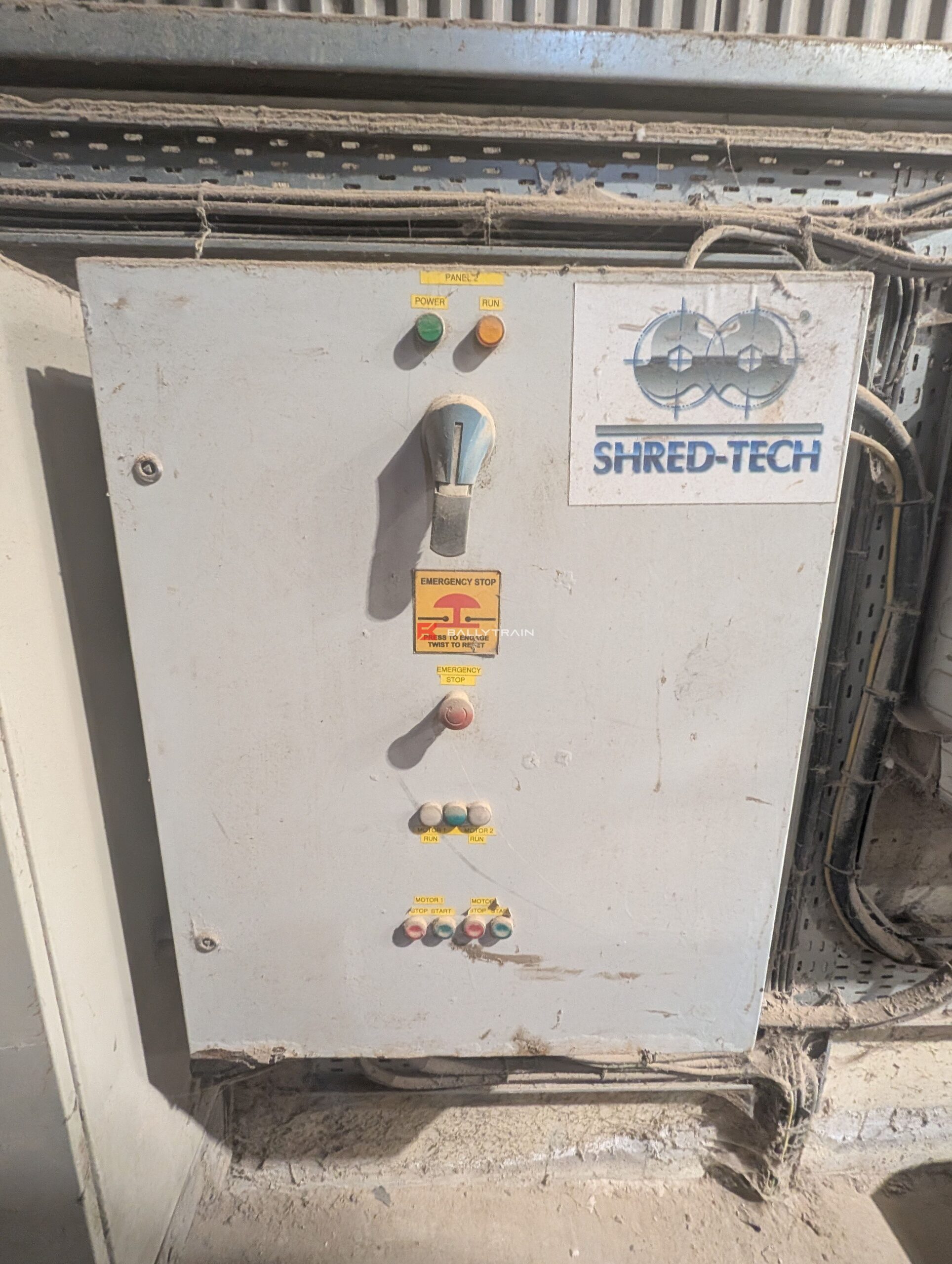

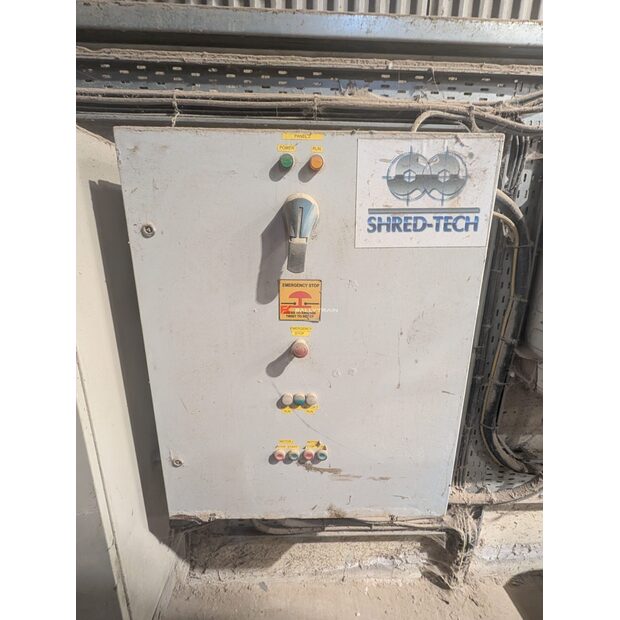

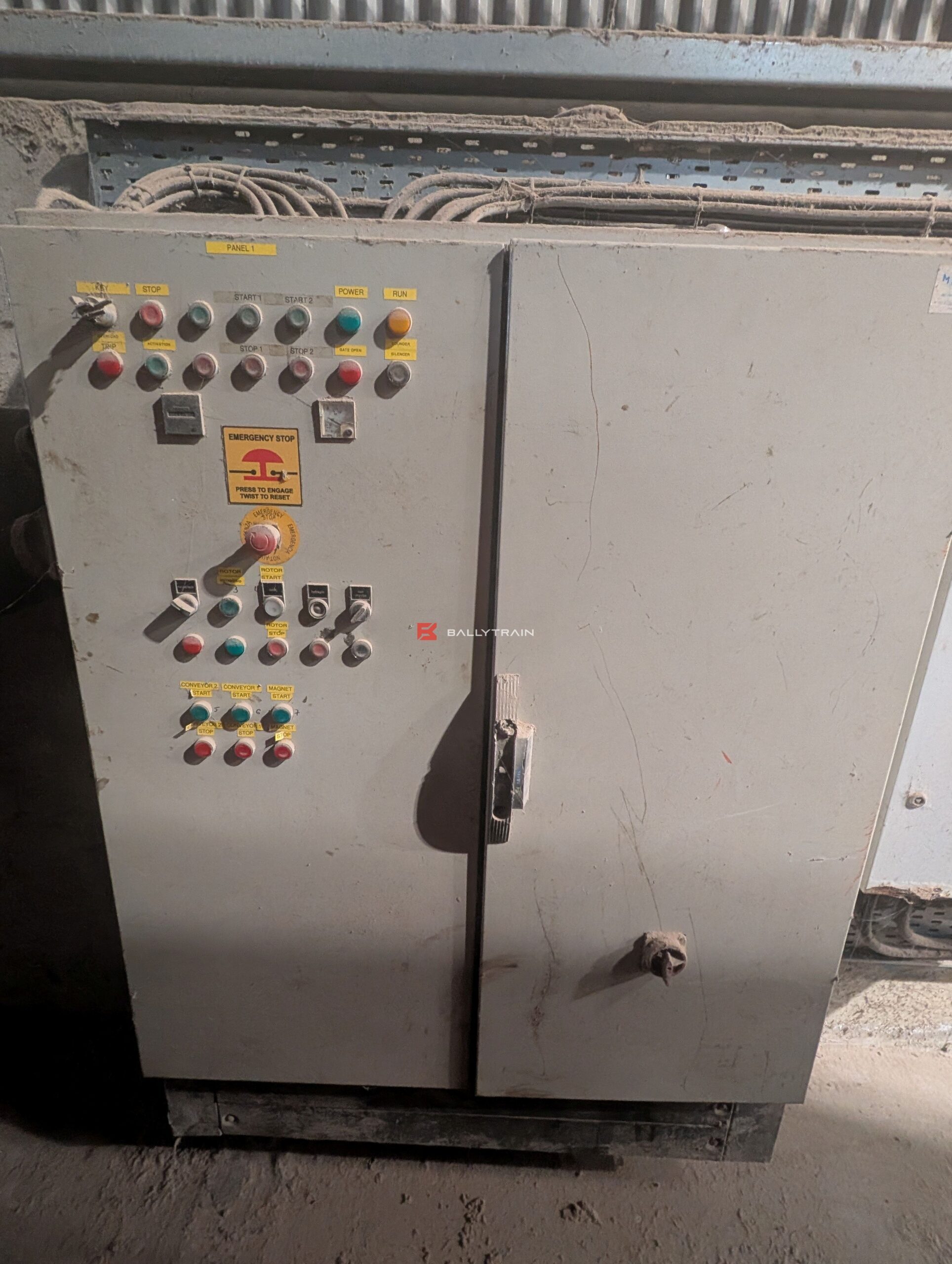

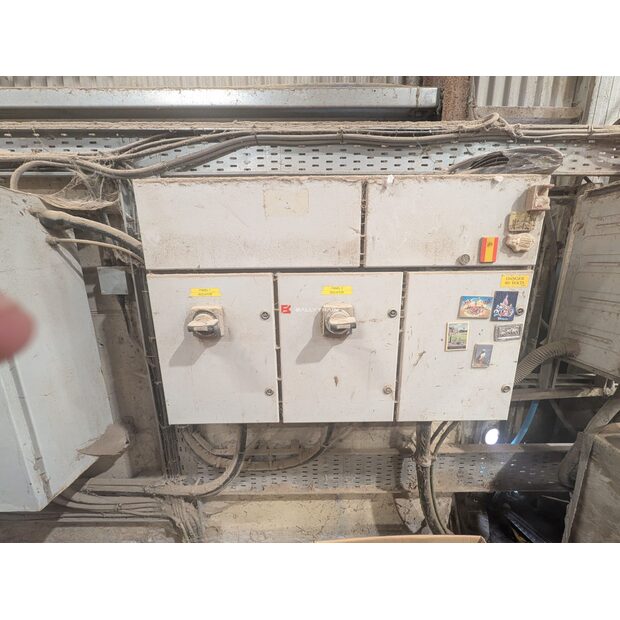

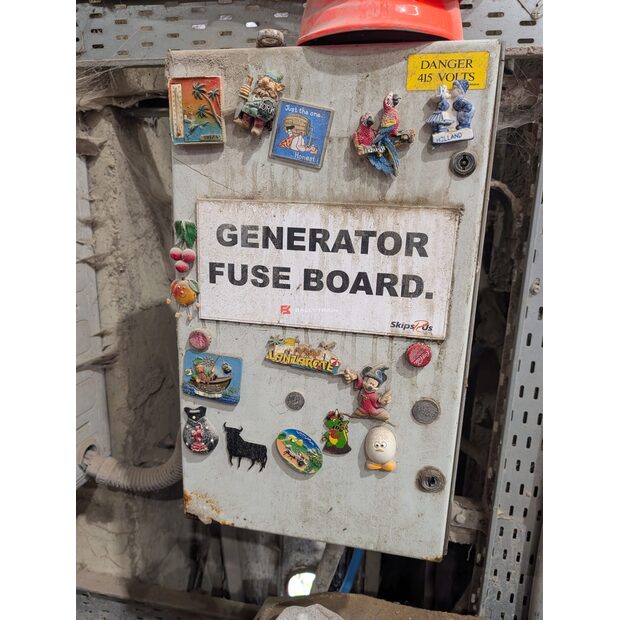

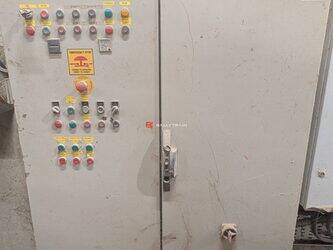

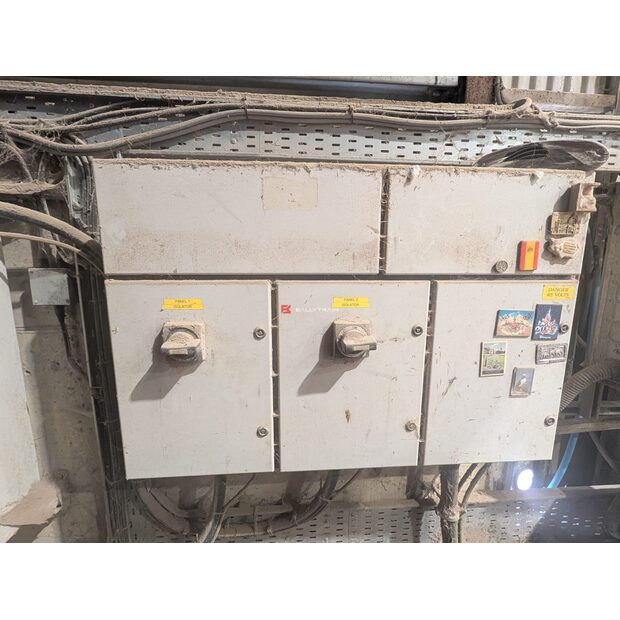

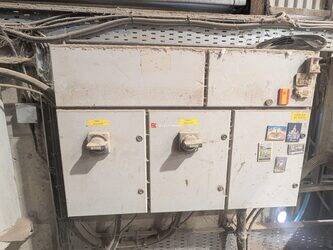

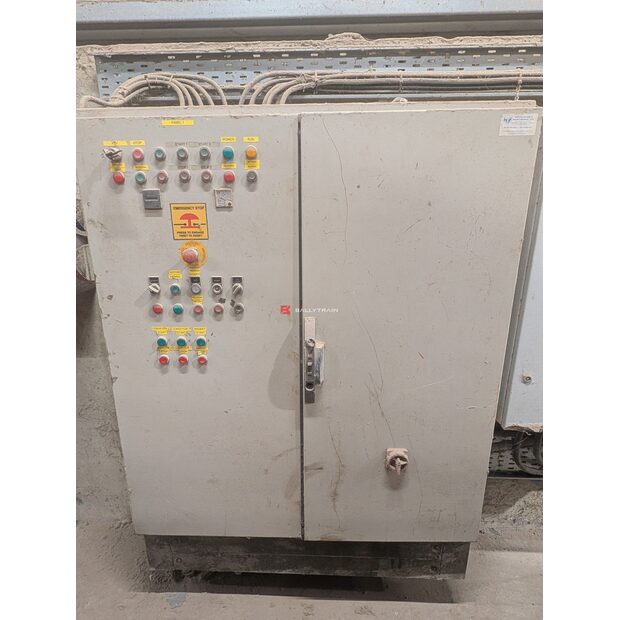

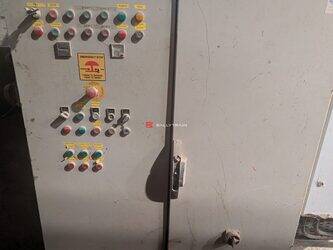

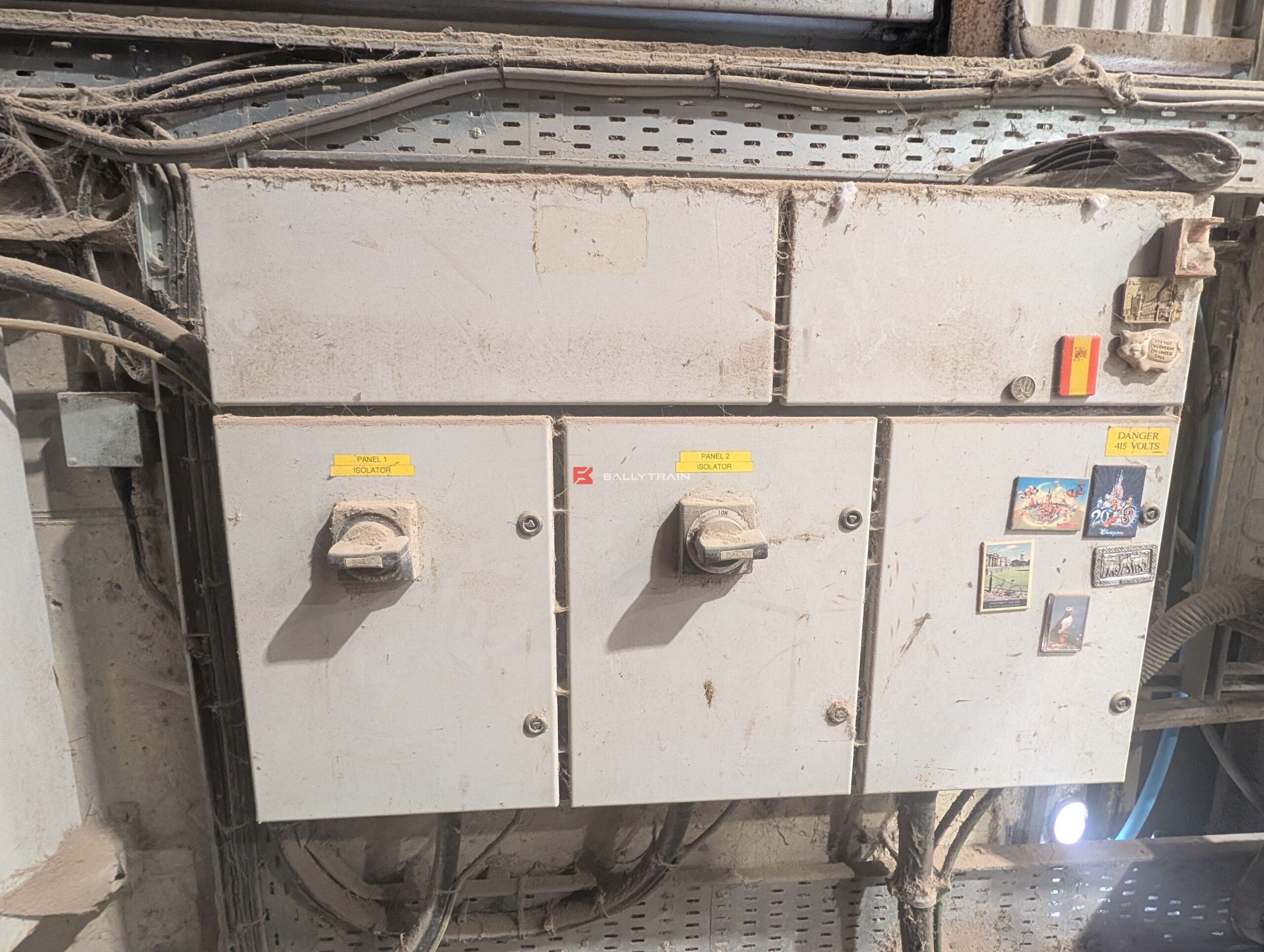

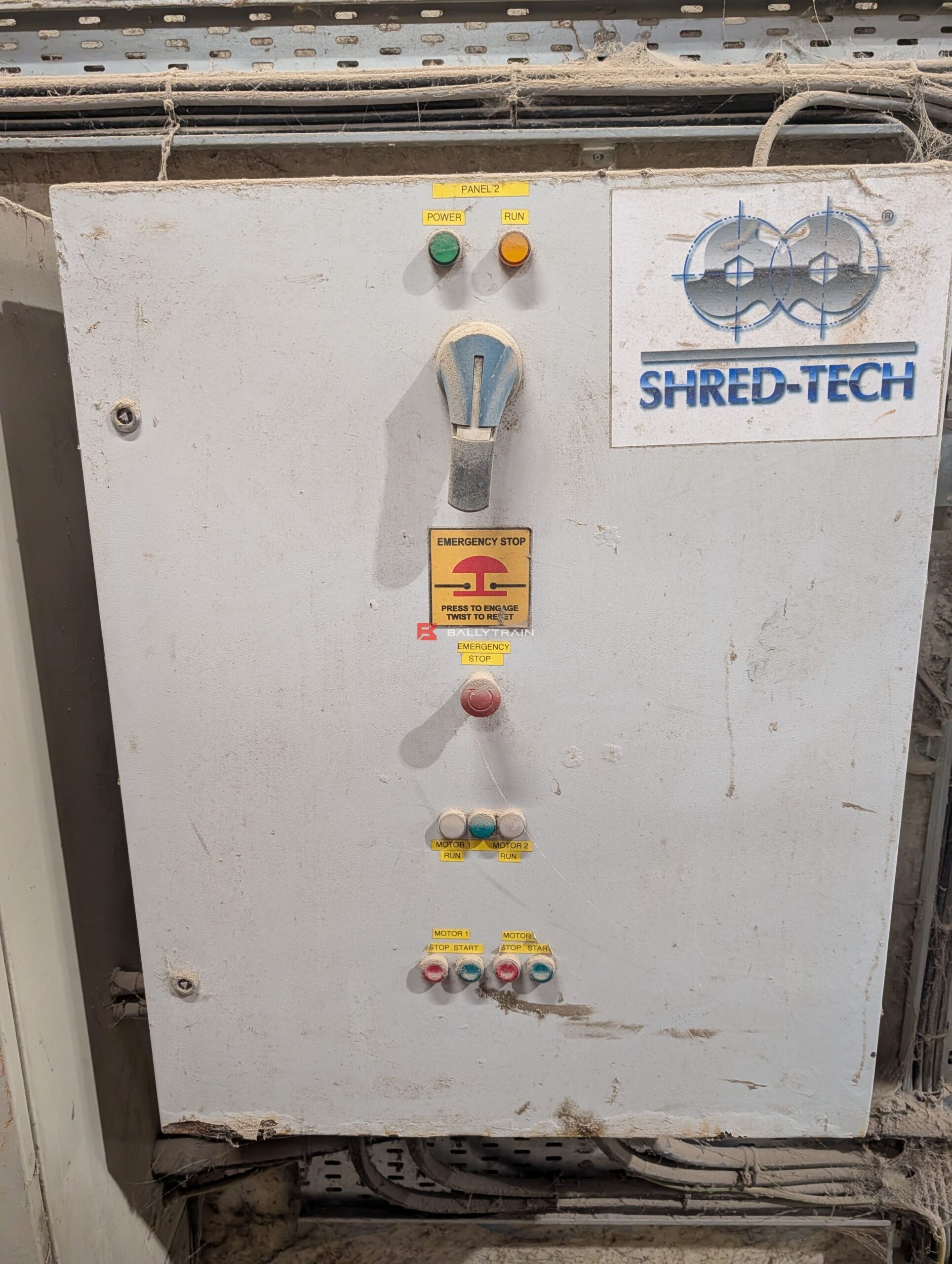

Comes with all the panels/control panels as per images.
Footprint Of Machinery: 16 Metres 5.5 Metres
Make
SRF Production Line
Availability
In Stock
Fuel
Electric driven
Mobile
No
SRF Production Line (Shred-Tech & Weima Shredders)SRF Production Line for sale, Used SRF fully complete production line – Shred-Tech and Weima Shredder. Solid Recovered Fuel (SRF), This line has a Shred Tech ST35 Shredder with 4.7m conveyor under it to feed shredded material into Weima Shredder. The 4.7m conveyor has chevron belt and is fitted with overband magnet built on a frame, under the Weima Shredder is a 10m Turmec Conveyor with chevron belt stockpiling the final product. This complete line is electric driven and comes with electric motors and all the panels/control panels. Shred-Tech ST35 Shredder is a twin shaft shredder with a large feed bin driven by 2 x 45KW motor, Weima Shredder is single shaft shredder with feed bin and pan feeder moving over and back driven by 1 x 75KW motor. The SRF line has not been dismantled and is still set up as per images, we are selling it fully complete and in its current condition. Comes as per images below nothing more and nothing less. Please see below text for more details on this full SRF line.
The overband magnet is fitted over the 4.7m conveyor for the removal of metals from material before entering into Weima Shredder. The line was working in a recycle centre and is still currently set up in the recycling centre. Working SRF line which is ready to go back to work. This line can be used for a wide range of applications but it was being used to shred tyres and recycled material/waste. We have a short video showing the plant running and in its current condition.
A Solid Recovered Fuel (SRF) production line transforms non-recyclable municipal and commercial waste into high-quality, high-calorific alternative fuel. The process typically involves pre-shredding, mechanical and optical sorting to remove contaminants (like chlorine and metals), drying, and fine shredding to yield a homogeneous product.
Worldwide Shipping options available, for keenest rates to get this SRF production line delivered to your local port or site please click here to contact us.
See the YouTube video of the SRF line running by clicking here.
Shred-Tech:
Model ST35 â Shred Tech Cutting Blade Width â 2â Motor size: ⢠Power Output: 45kw. ⢠Frame Size: 225 mm (shaft center height to base). ⢠Insulation Class: Class F (155°C). ⢠Protection Class: IP55 (dust and water jet resistant). ⢠Cooling Method: IC411 (Self-ventilated via a fan protected by a cowl). ⢠Duty Cycle: S1 (Continuous Operation).
Weima:
Motor size: 75KW 30mm Screen Size Round Holes Throughput capability on the waste you were shredding: 2 tonnes per hour
Intermediate Conveyor (With Overband Magnet Fitted):
Length: 4700mm Belt width: 785mm Motor size: 1.5KW
Turmec Conveyor:
Discharge height â 7 Metres Length â 10 metres Width â 1 metre Motor size: 1.5KW Motor Brand: Nord Typ SK 90L/4 ⢠Motor Type: Three-phase AC asynchronous motor ⢠Frame Size: 90L ⢠Poles: 4 ⢠Rated Power: 1.5 kW (2.0 hp) ⢠Nominal Voltage: 230/400V at 50Hz (or 460V at 60Hz) ⢠Full Load Current (\(I_{N}\)): ~3.4 A (at 400V) ⢠Starting Current Ratio (\(I_A / I_N\)): ~4.8 ⢠Insulation Class: Class F (Standard)
Comes with all the panels/control panels as per images.
Footprint Of Machinery: 16 Metres 5.5 Metres
