2026 Boratas Washing Screens

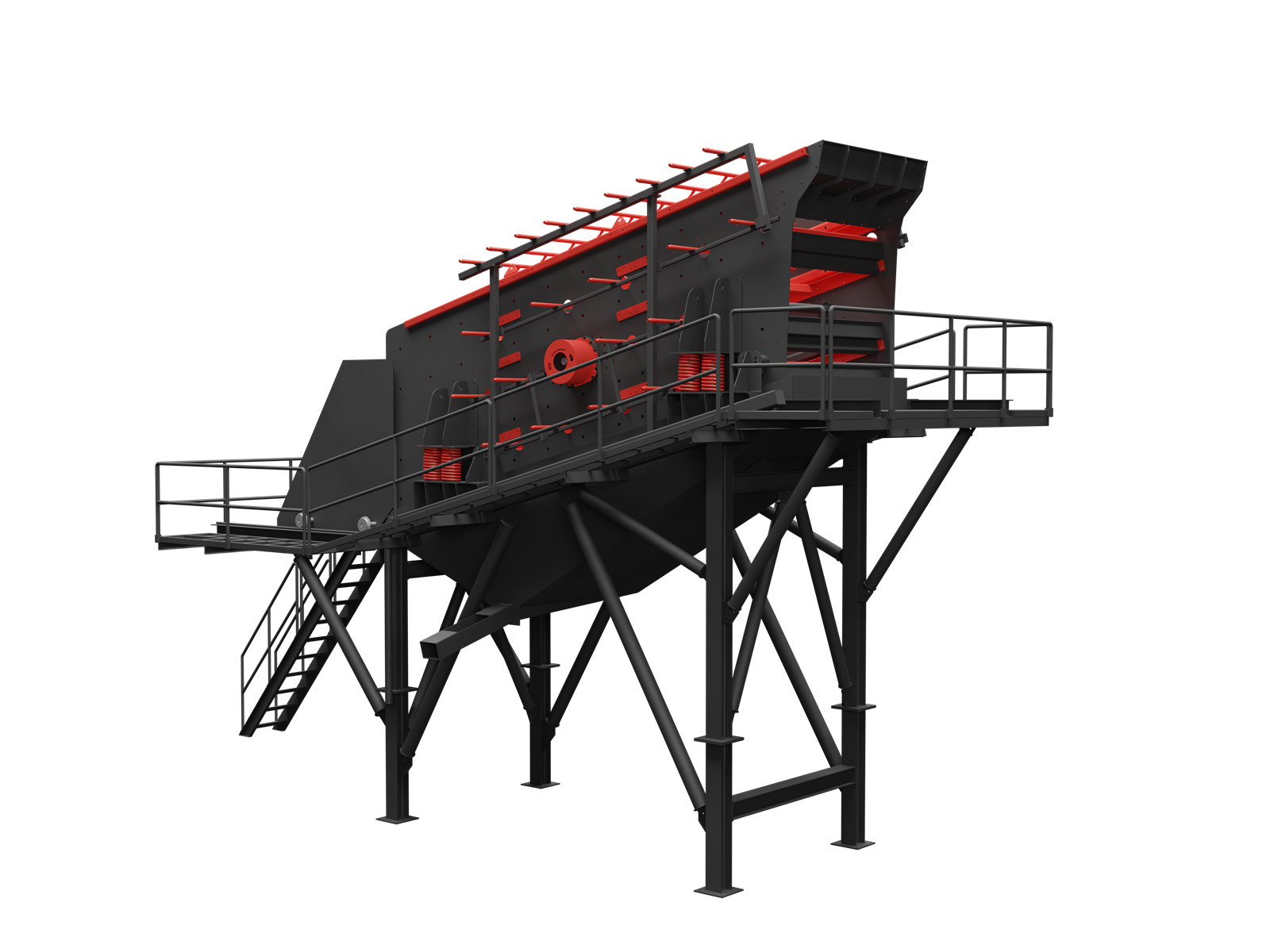

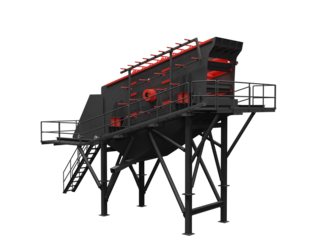

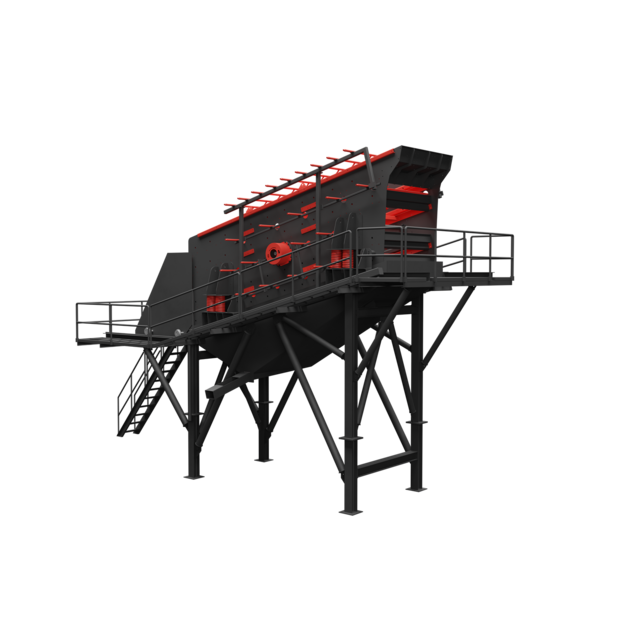

Boratas BSTYE2060 Washing Screen is a stationary washing and screening unit designed for rinsing and classification of aggregates in quarry, mining, and sand washing applications. It is used to remove clay, dust, and fine contaminants from material before downstream processing.

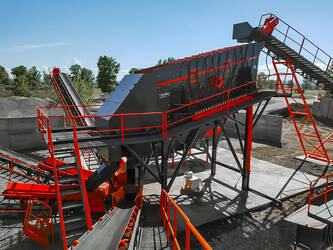

The BSTYE2060 is intended for installation in fixed washing plants where controlled washing intensity and reliable screening performance are required. It is available in 3-deck or 4-deck configurations, allowing multiple material fractions to be washed and separated in a single unit.

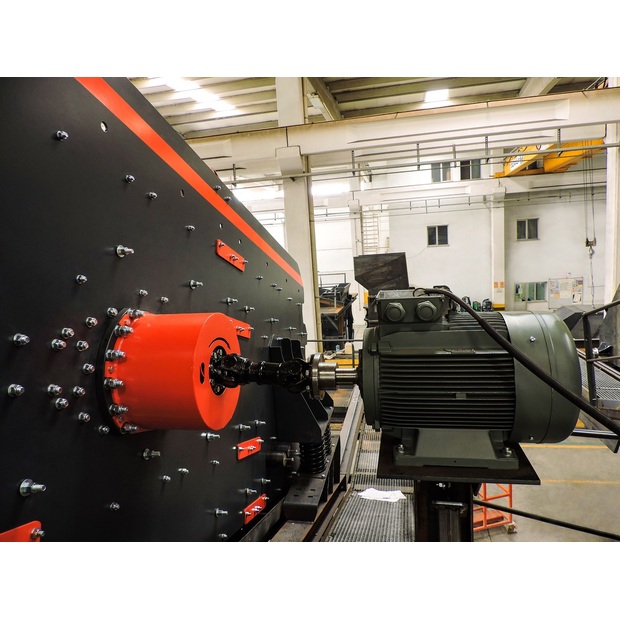

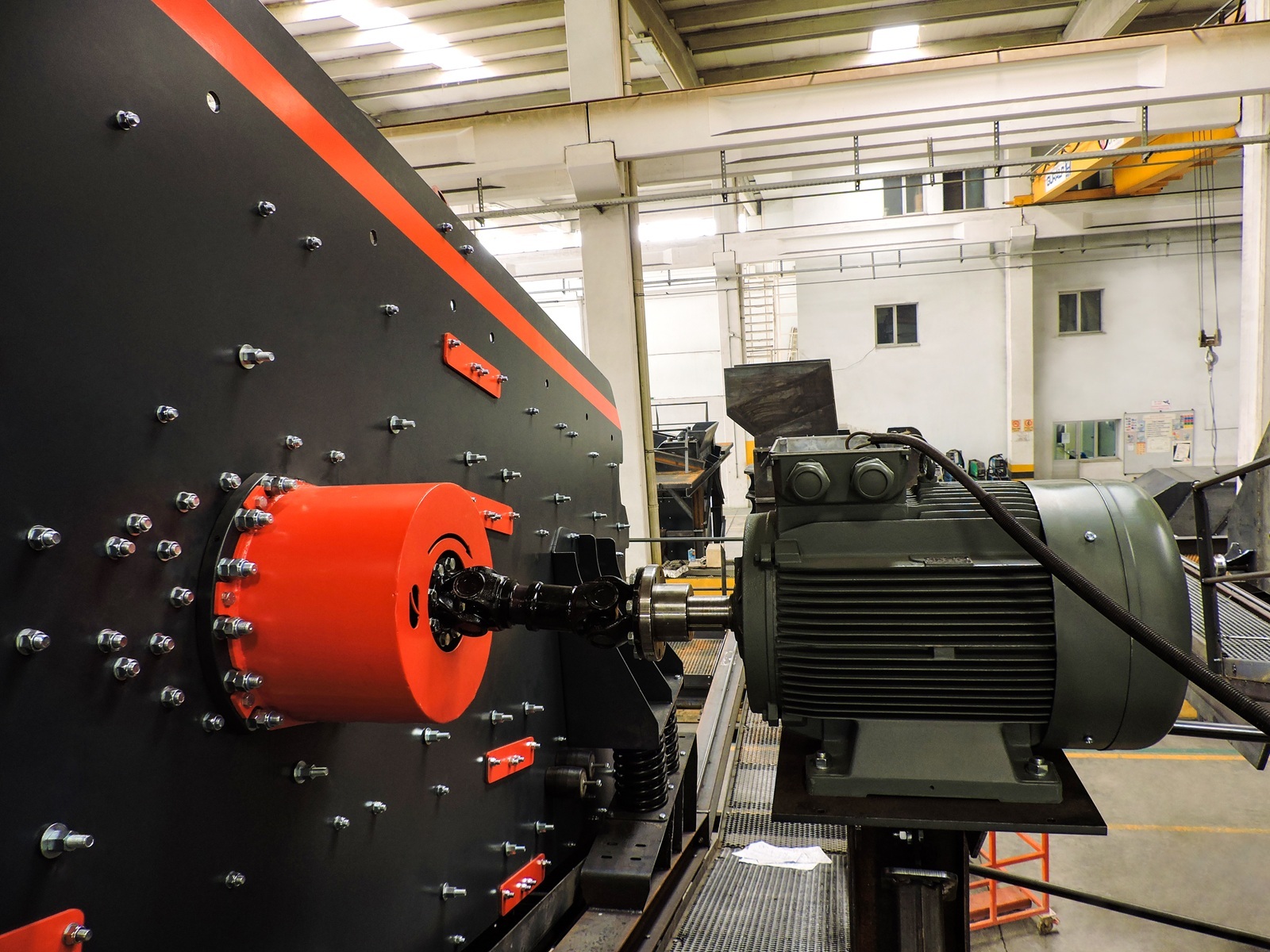

Powered by a 22 kW electric motor, the BSTYE2060 delivers stable and continuous operation under heavy-duty conditions. Each deck is equipped with independently controlled washing pipes, enabling operators to regulate water flow per deck based on material type and contamination level. This provides flexibility and precise wash control across different applications.

Technical Specifications •
Screen Dimensions: 2000 x 6000 mm •
Motor Power: 22 kW •

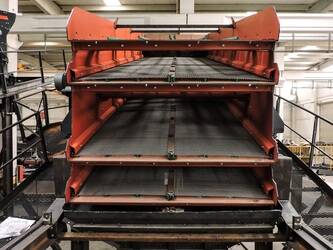

Number of Decks: 3 or 4 •
Weight (3 decks): approx. 8,500 kg •
Weight (4 decks): approx. 9,500 kg

Manufactured in compliance with international quality standards. Supported by Boratas warranty and after-sales service.

For further technical details and project-specific solutions, visit:
https://www.boratasglobal.com/en

******************************************************************

Standard Features:
2000 x 6000 mm screening surface.
3-deck or 4-deck configuration options.
22 kW electric drive motor.
Independent water flow control for each deck.
Full-surface rinsing system across all decks.
Heavy-duty structural design.

Optional Features:
Adjustable spray nozzles and water-saving systems.

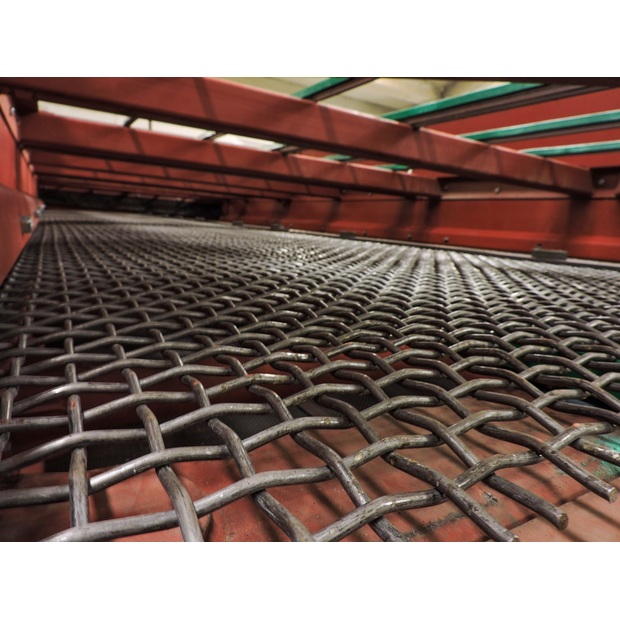

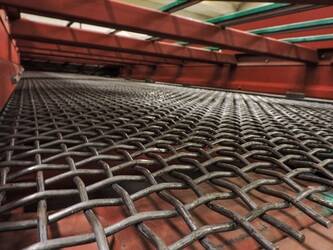

Polyurethane, rubber, or wire mesh screen media.
Dust protection and water containment systems.
Automatic lubrication and sensor packages.

Key Features

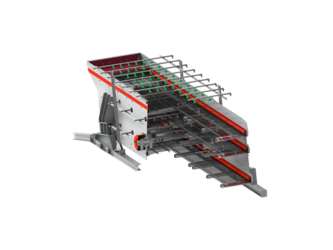

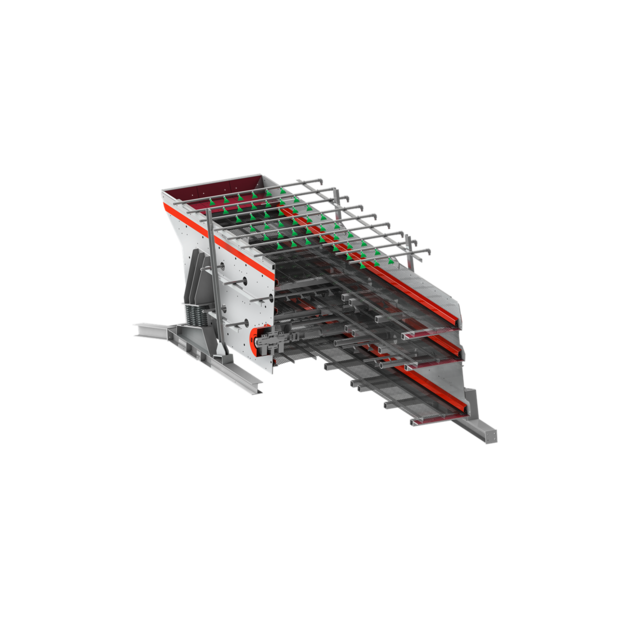

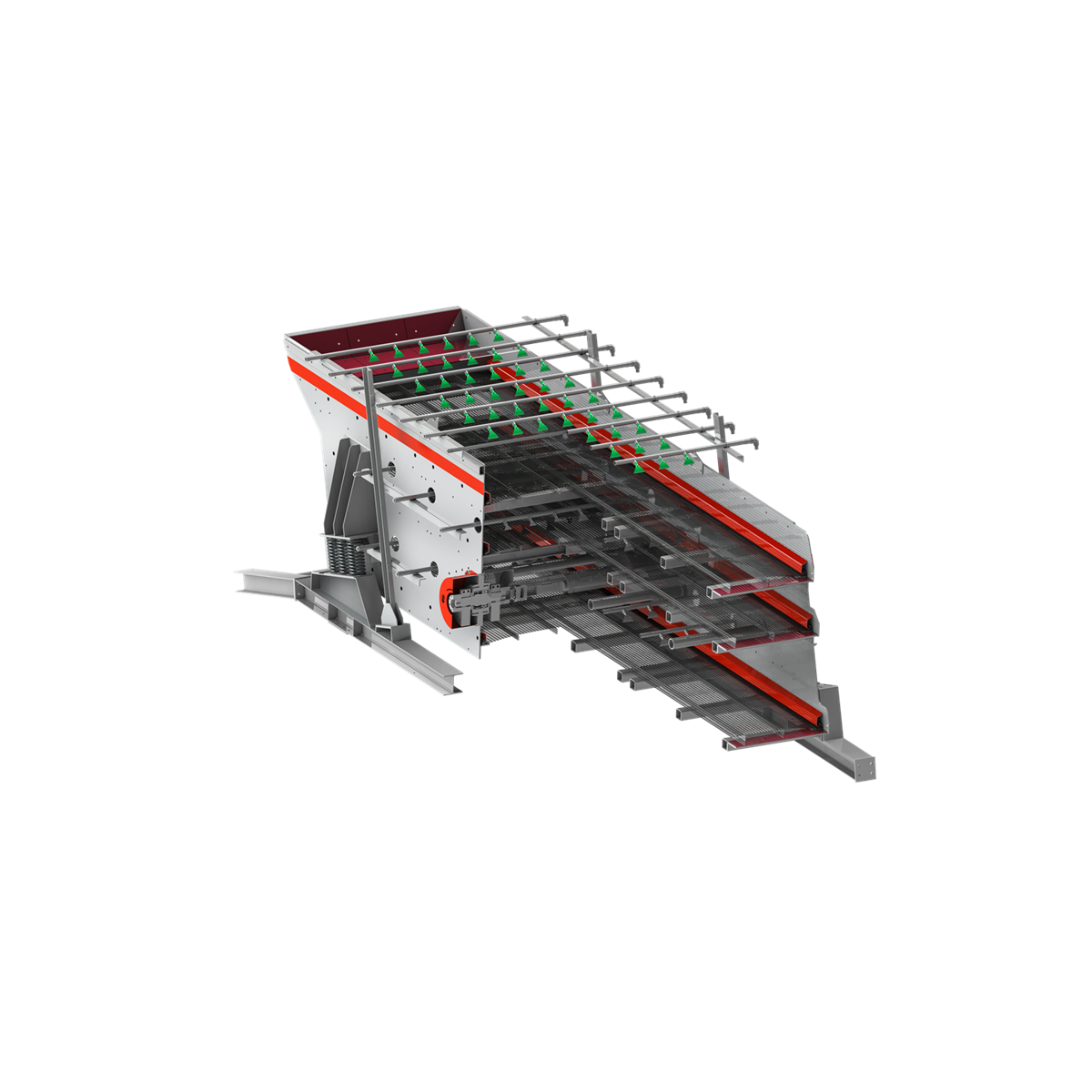

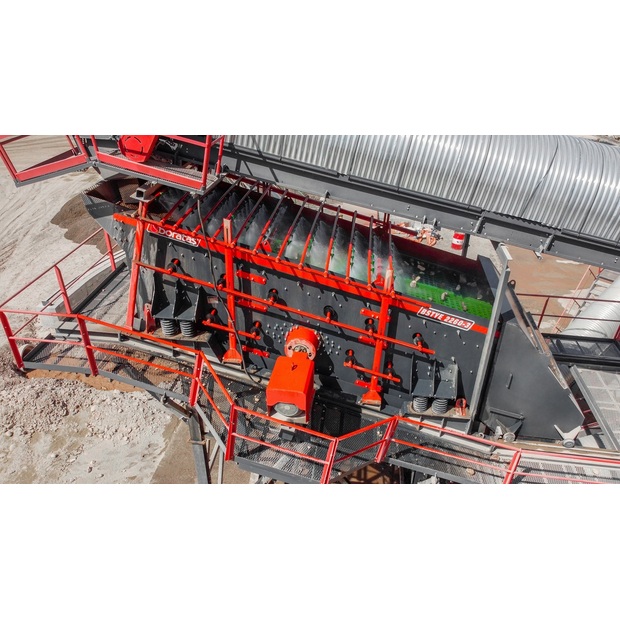

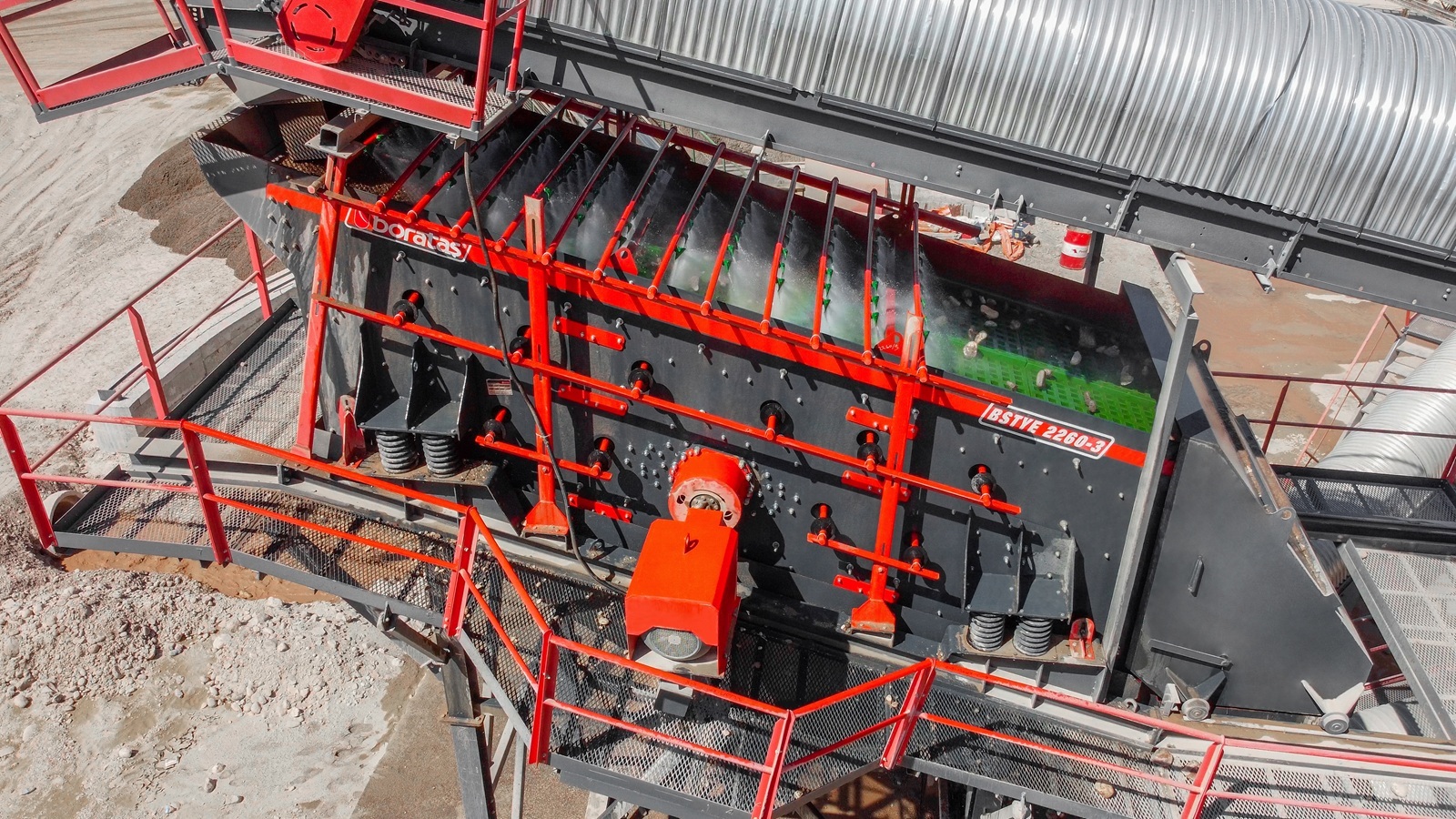

1. Full-Surface Washing Coverage Integrated water distribution across each deck ensures effective contact with material for consistent washing results.
2. Independent Deck Water Control Individual valve systems allow precise adjustment of wash intensity on each deck.
3. Large Screening Area The 2000 x 6000 mm surface provides extended material retention time for improved washing and separation efficiency.

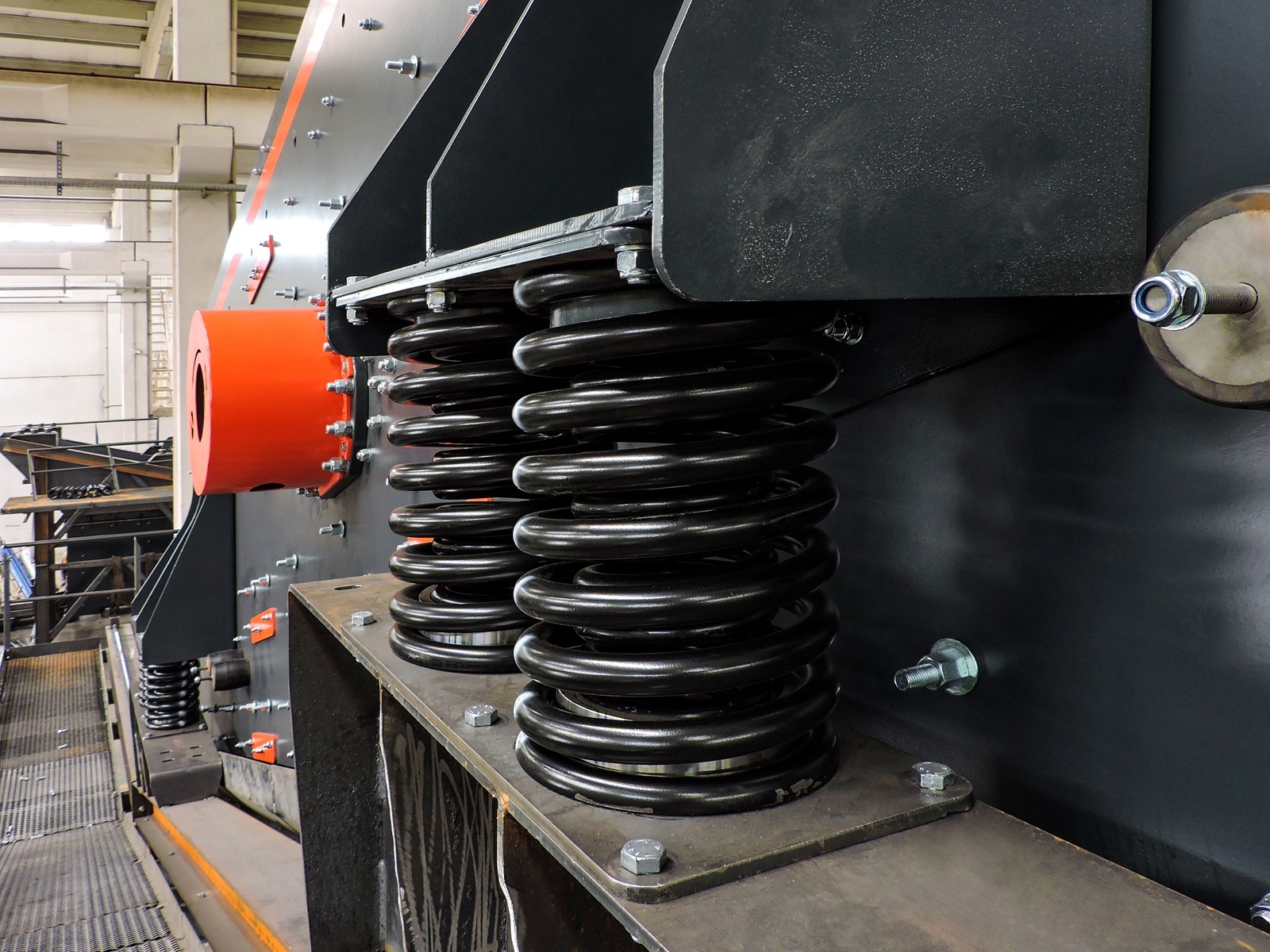

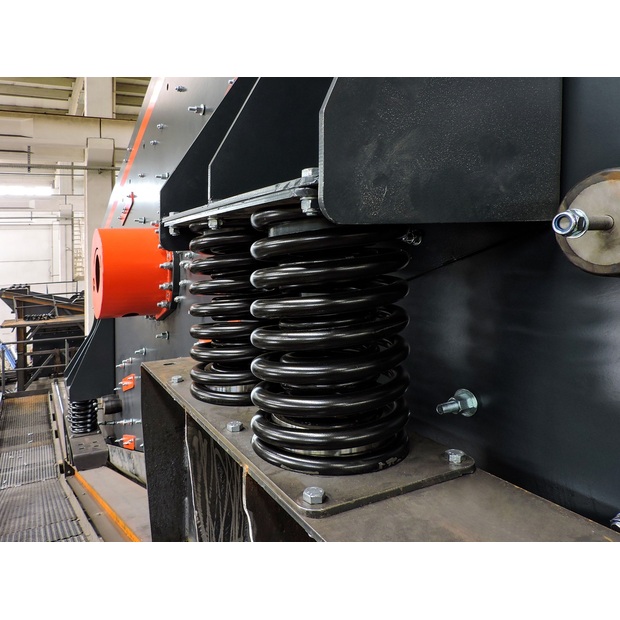

4. Designed for Continuous Operation Robust construction and stable vibration support reliable performance under high material loads.
5. Easy Integration into Wash Plants Suitable for combination with bucket wheel washers, spiral classifiers, and other washing equipment.
