2026 Boratas BLY03
Year
2026
Condition
New
1
/
10
Verified Seller
1
/
10
Overview
Description

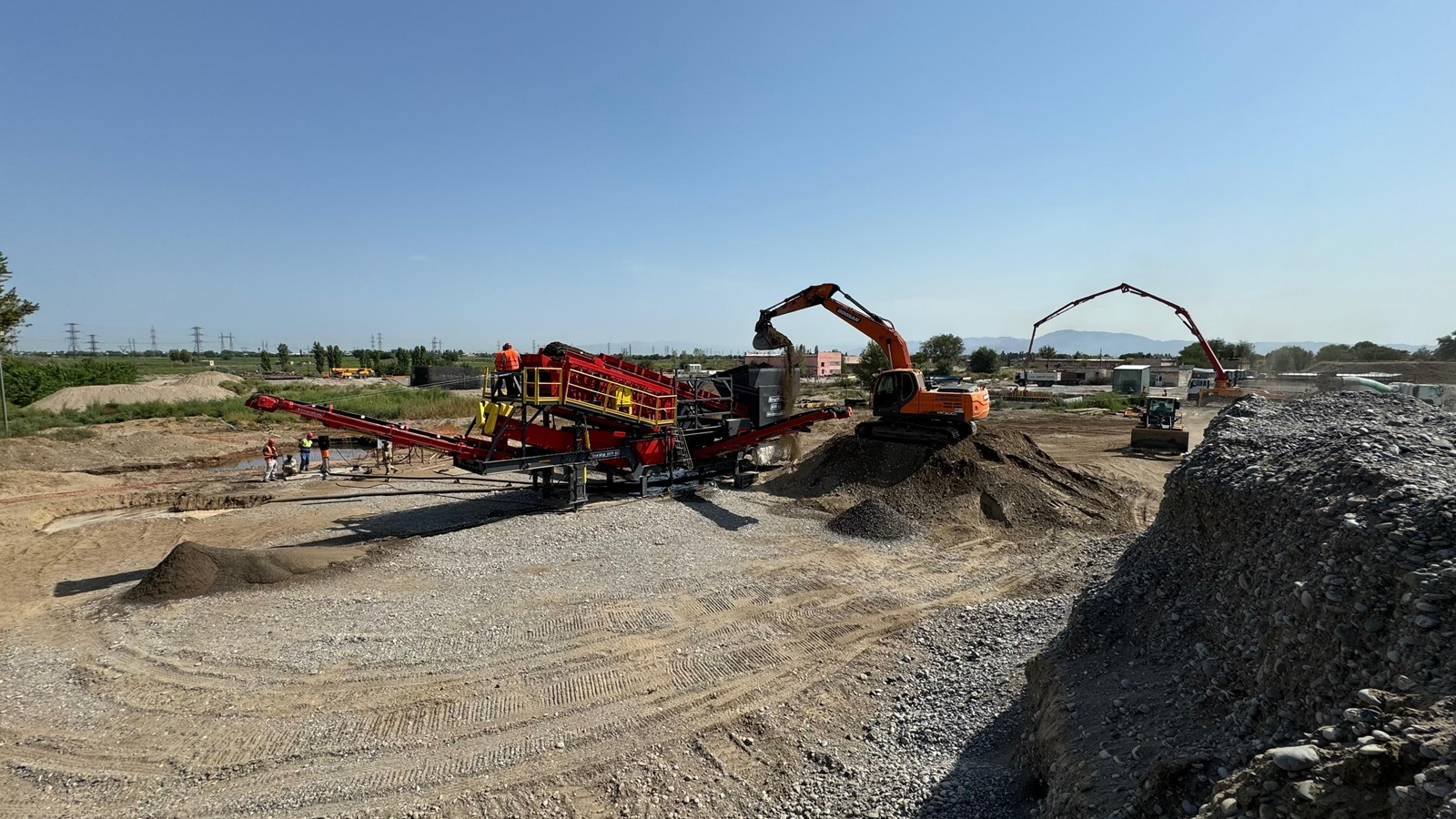

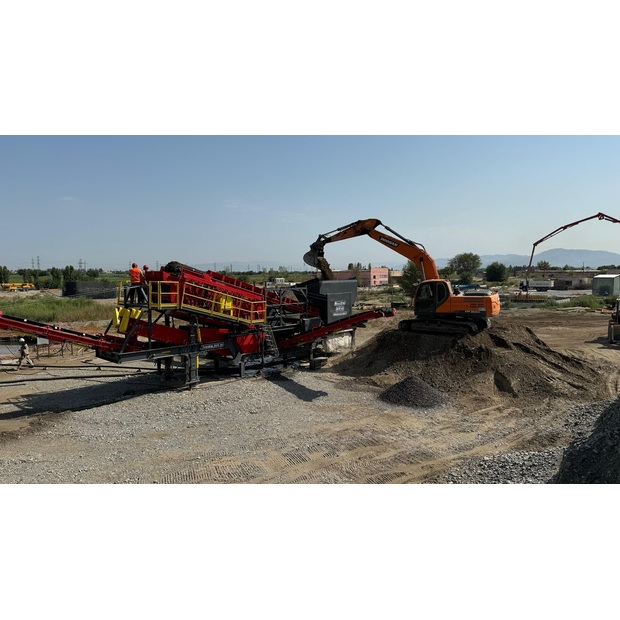

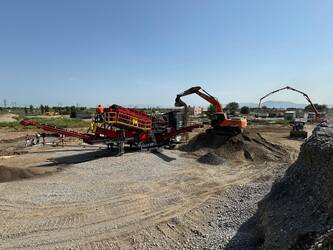

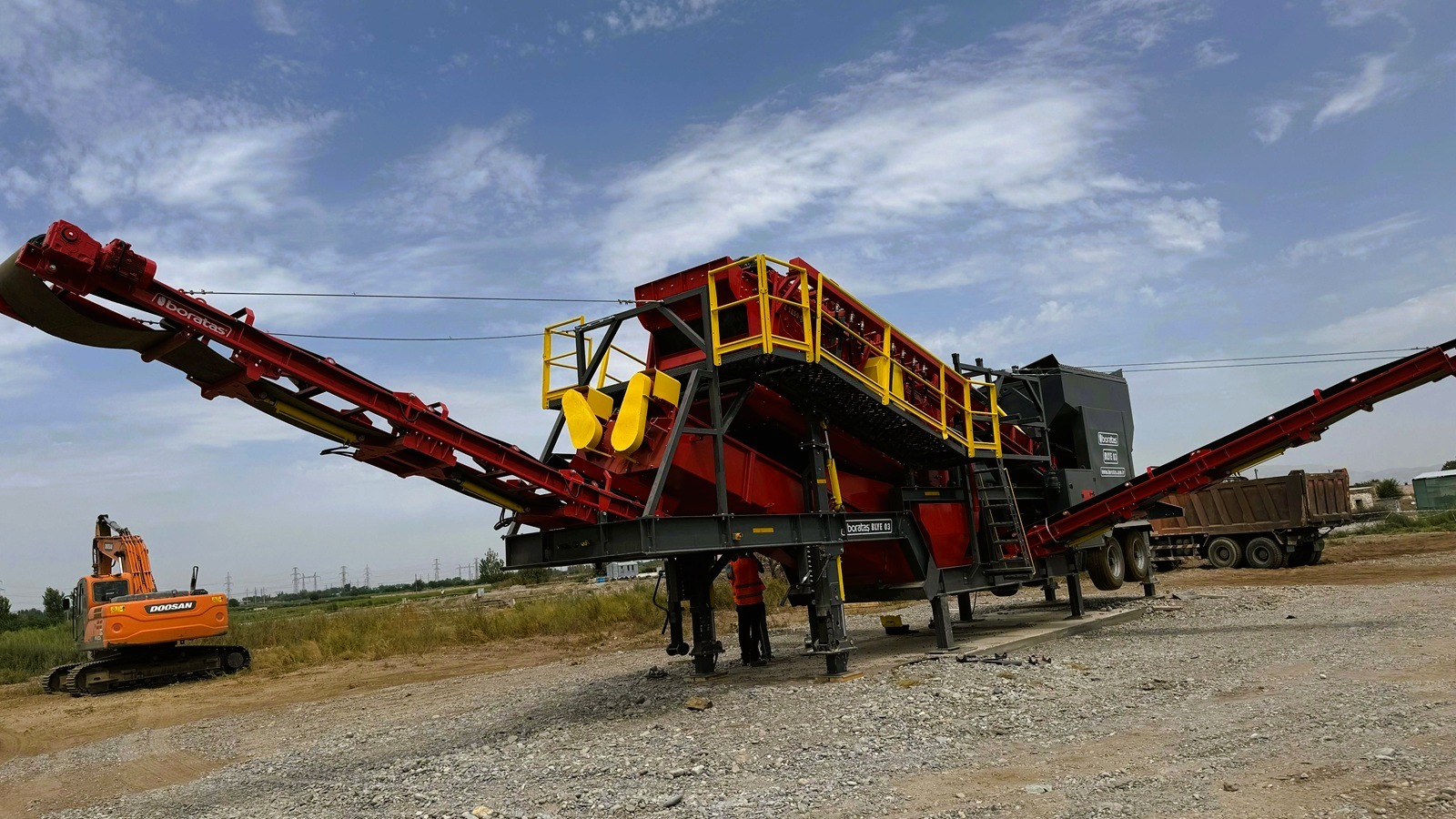

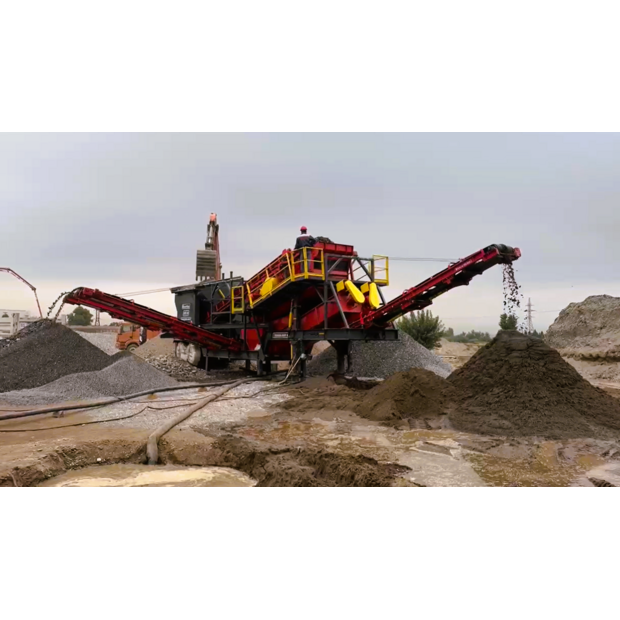

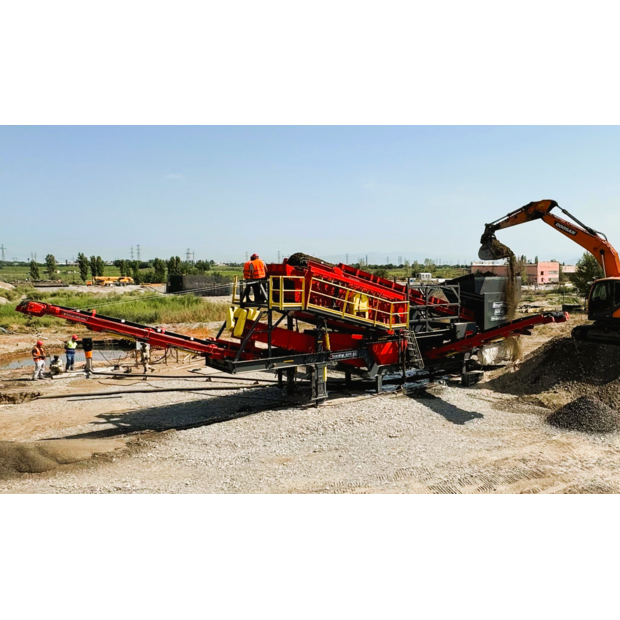

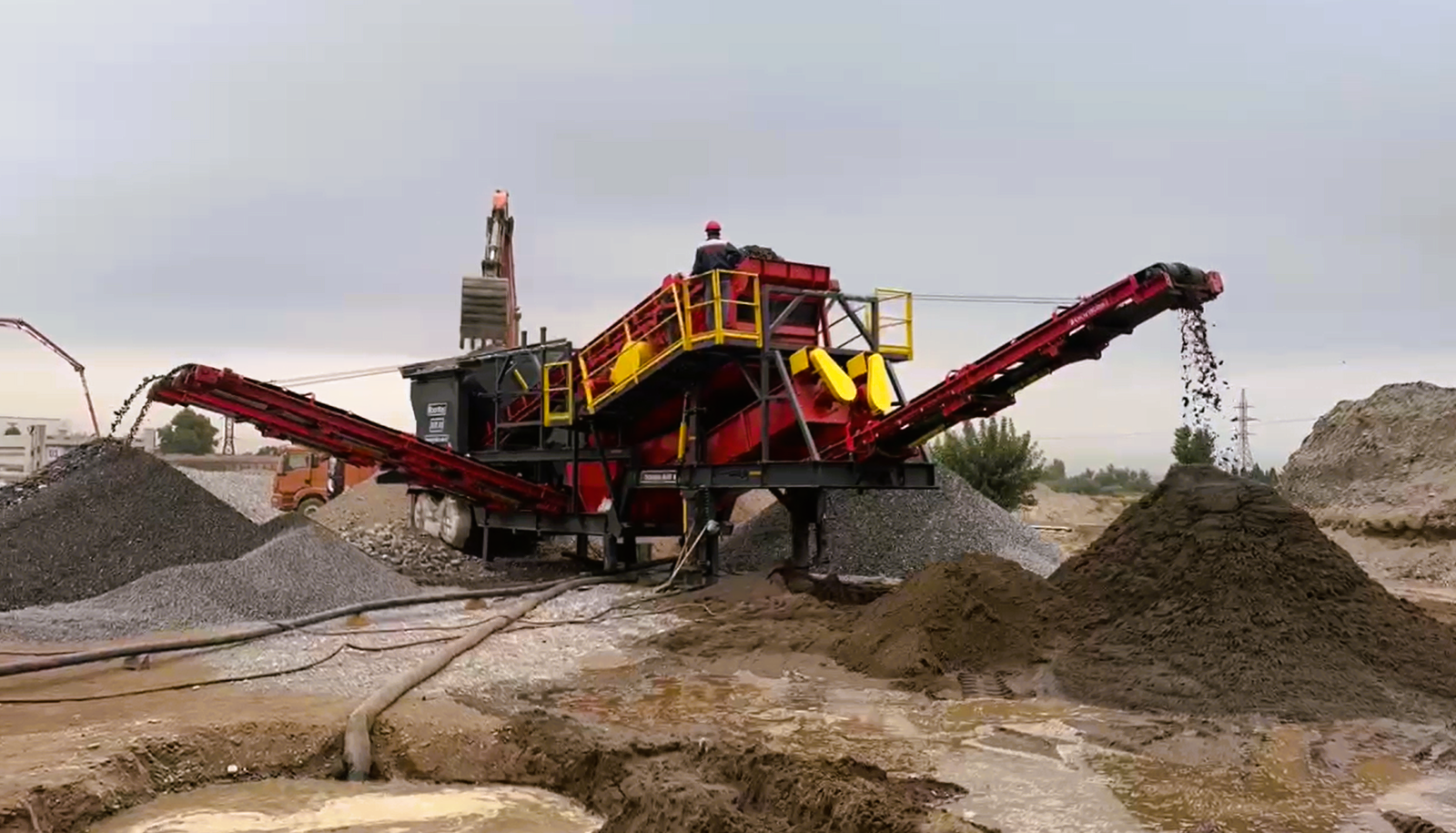

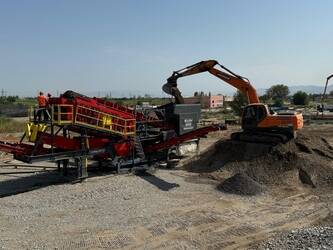

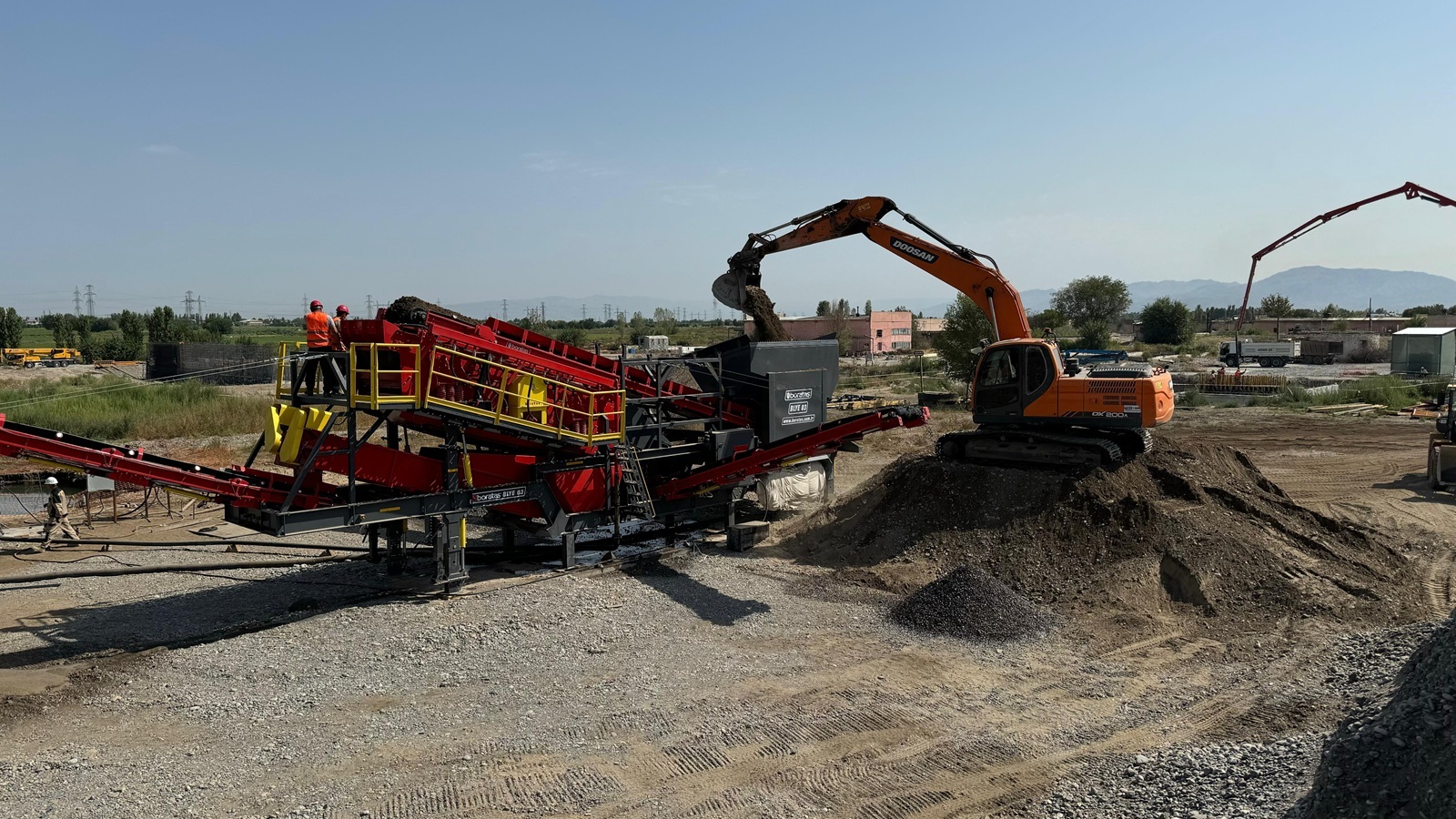

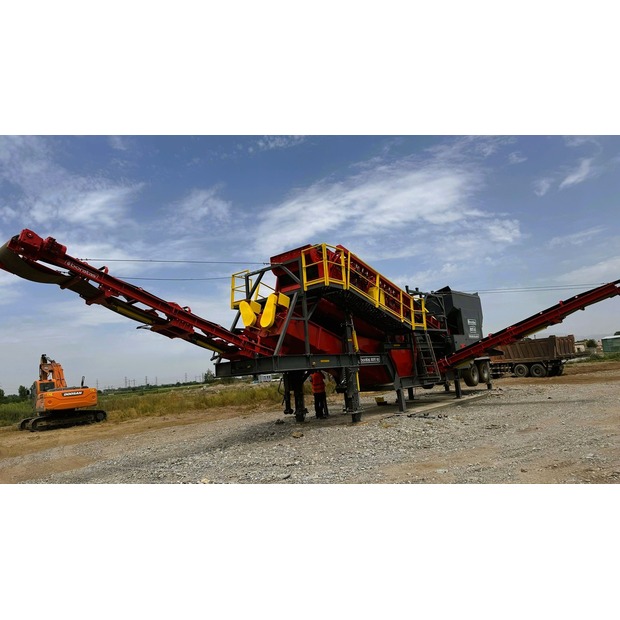

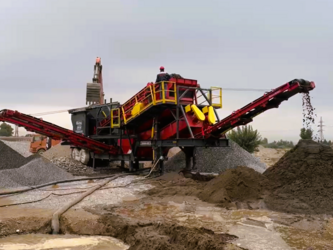

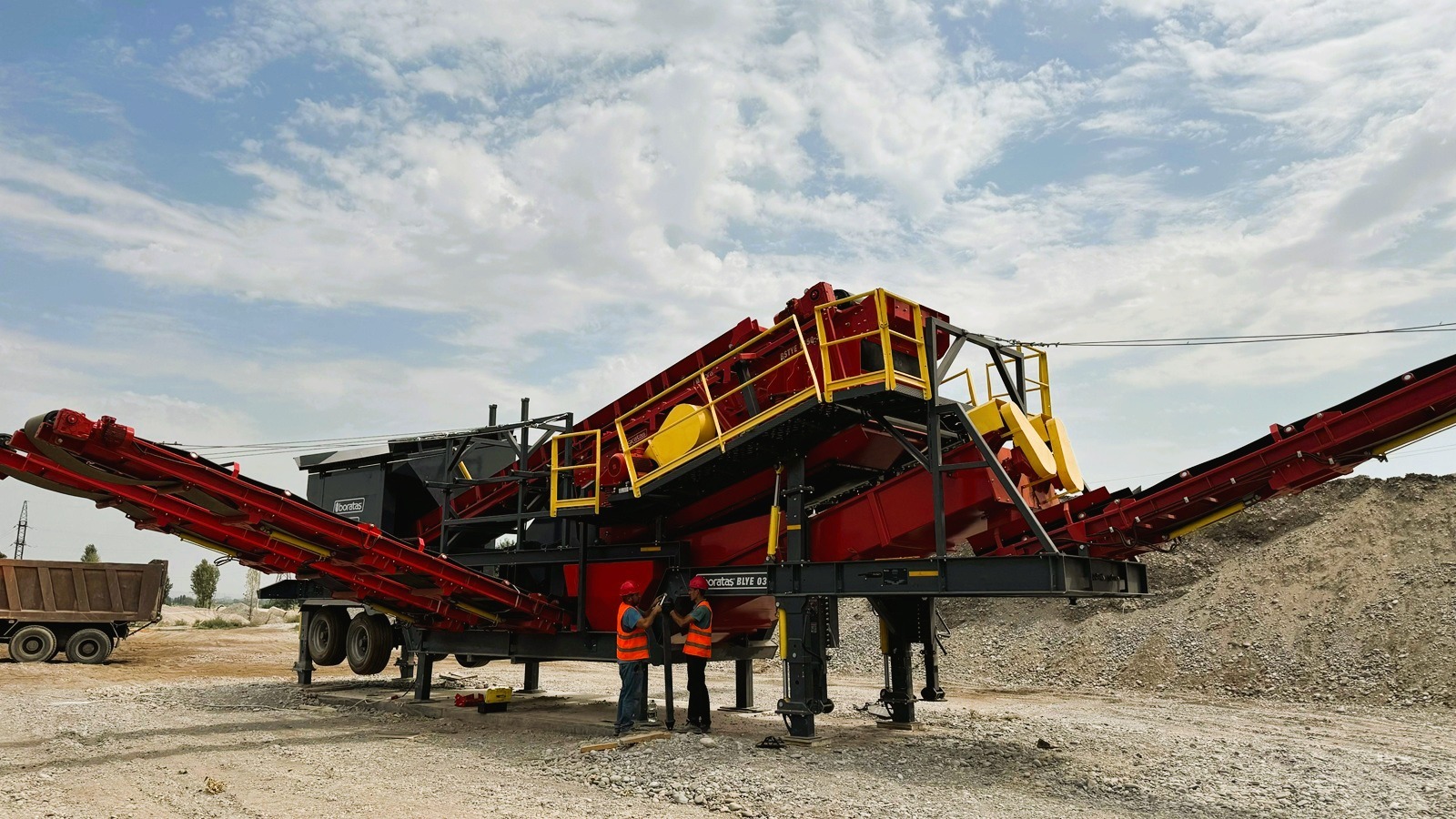

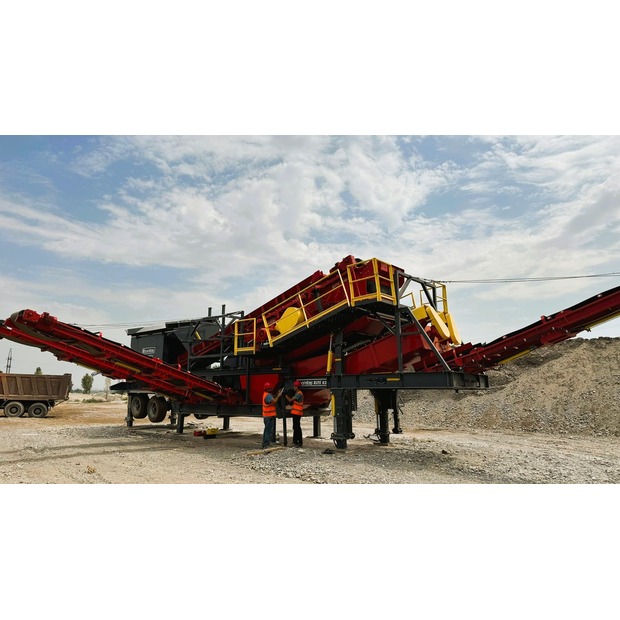

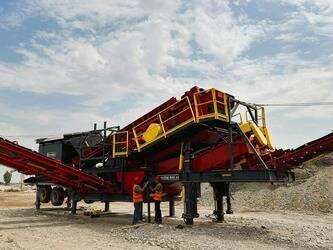

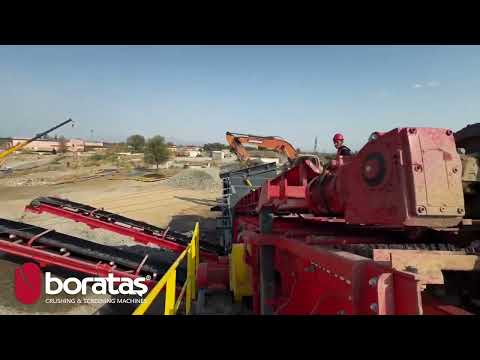

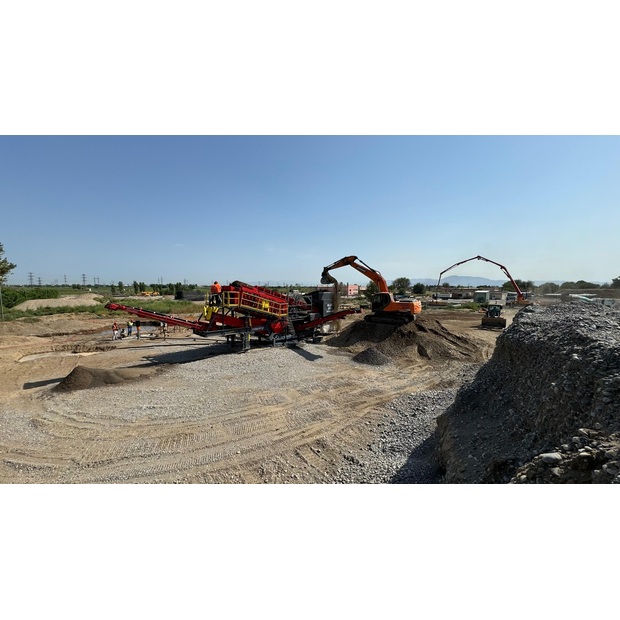

Boratas BLY03 Wheeled Mobile Washing and Screening Plant is a semi-mobile wet processing unit designed for aggregate washing, sand classification, and fine material recovery in quarrying, mining, and recycling applications. The machine combines feeding, washing, screening, and classification processes in a compact wheel-mounted structure, supporting flexible operation and easy relocation between project sites.

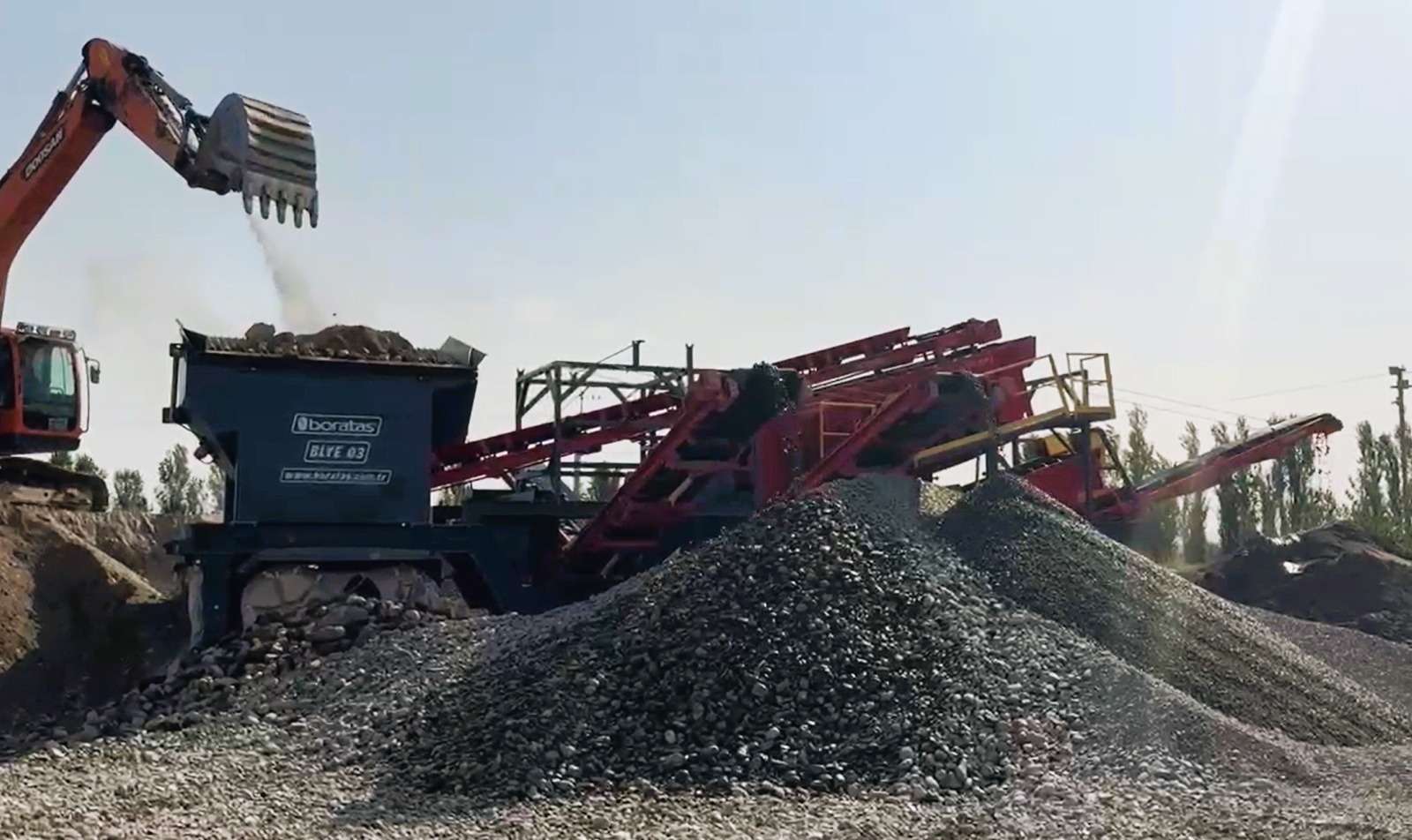

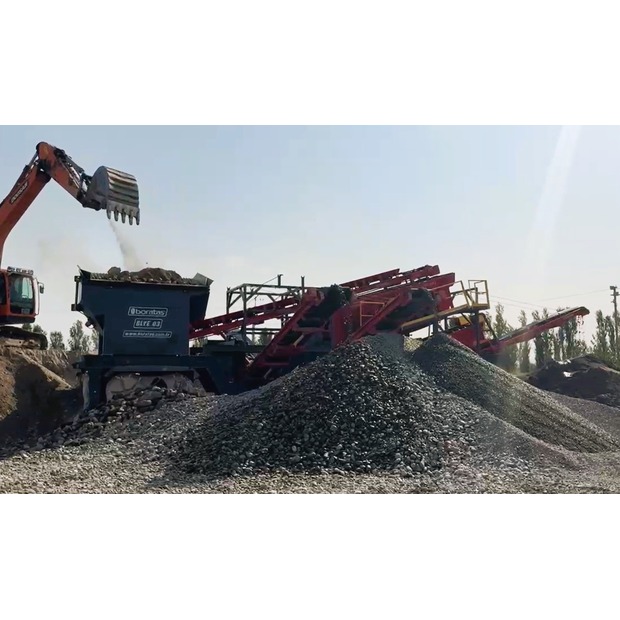

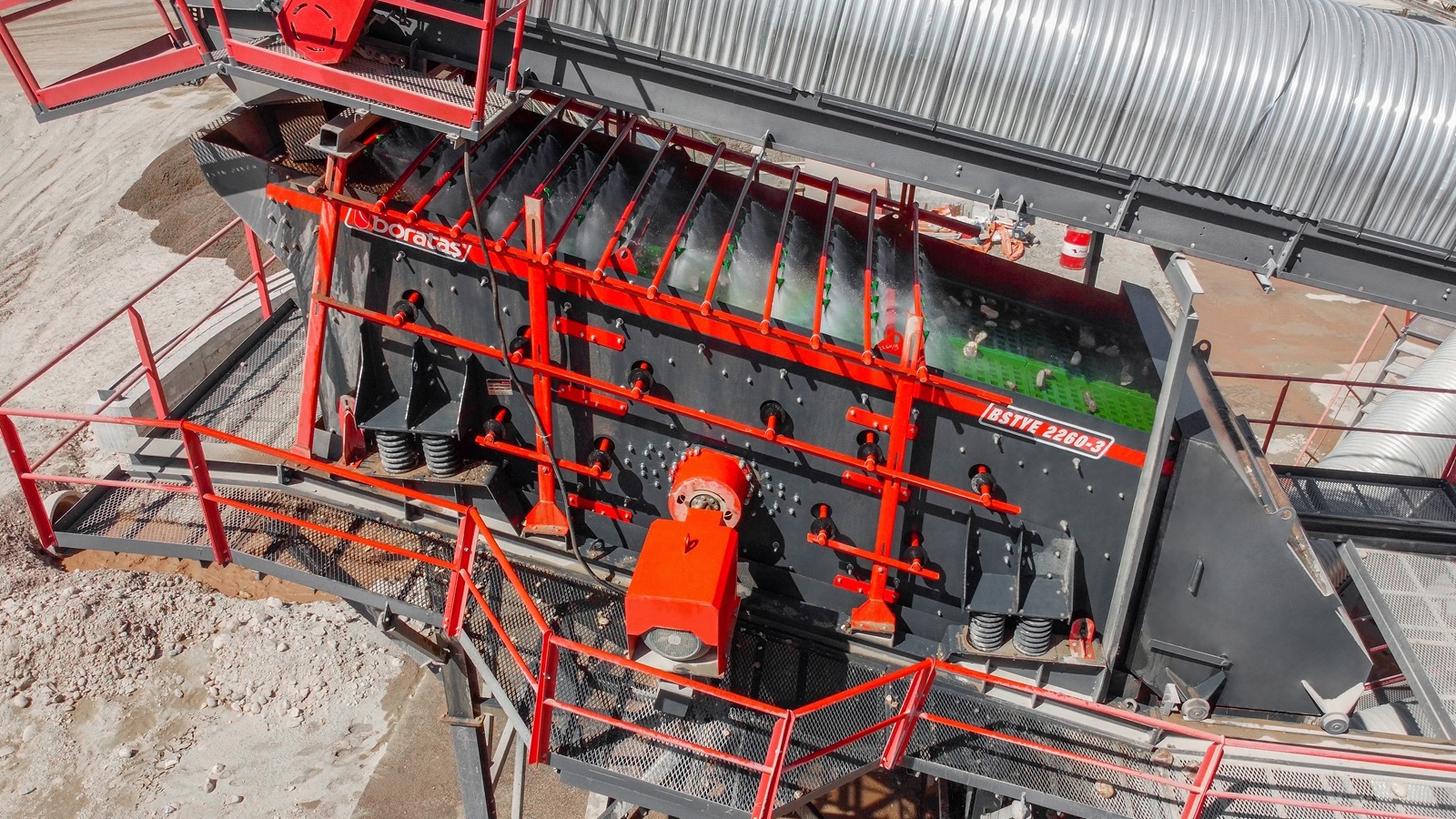

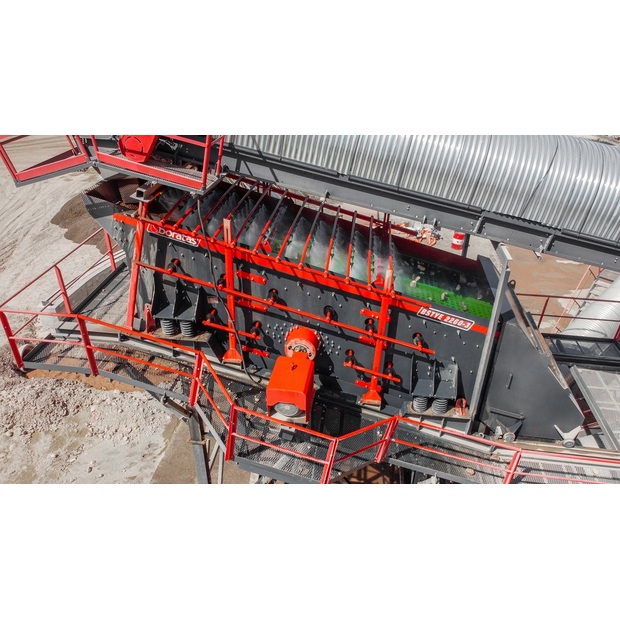

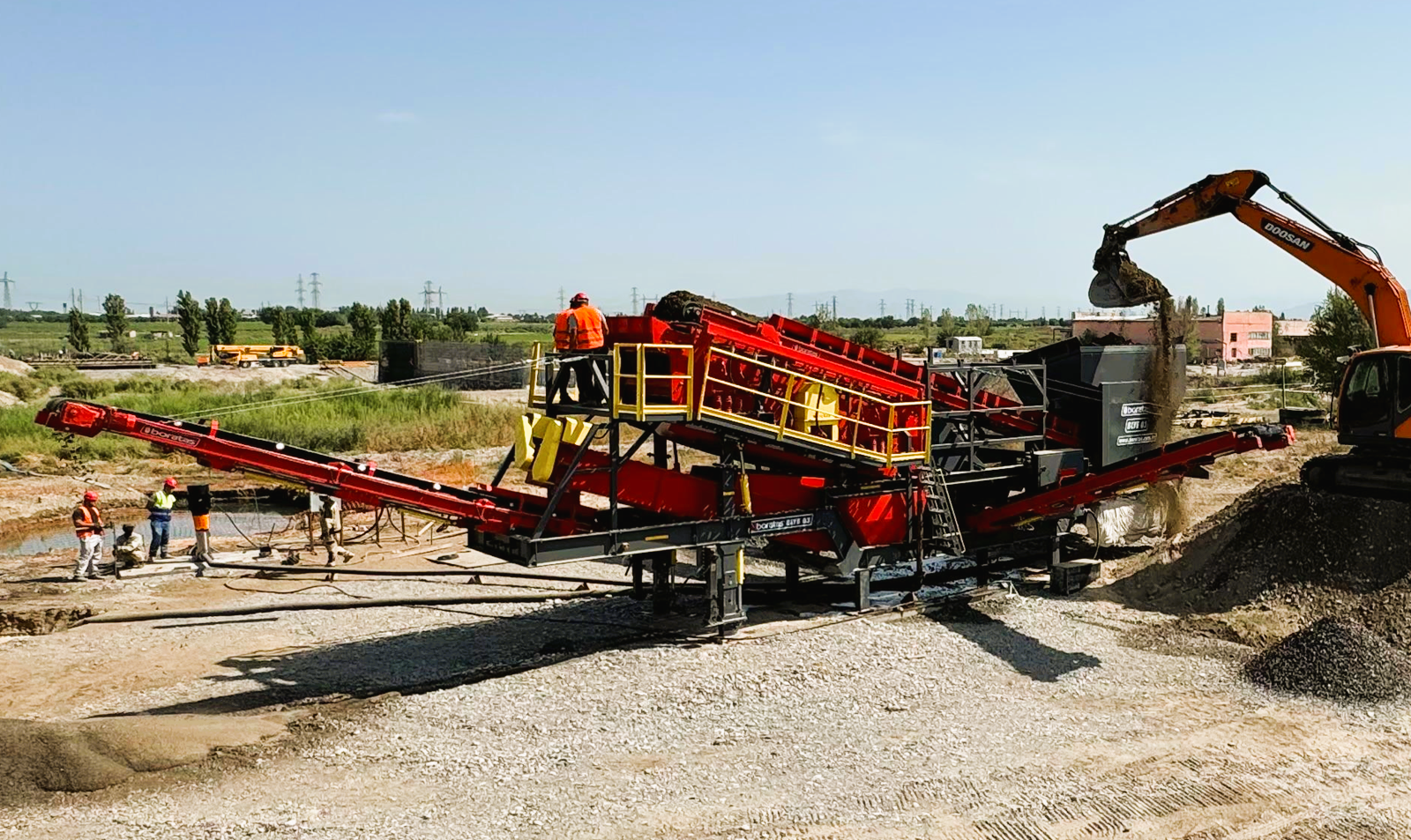

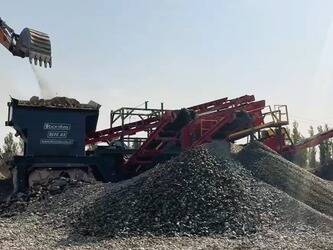

The unit is equipped with an 8 m³ feed hopper with hydraulic adjustable grizzly bars, allowing direct feeding by excavators and wheel loaders. Material is transferred through a heavy-duty belt conveyor to a triple-deck washing inclined screen, where aggregates are rinsed, separated, and classified into different product sizes.

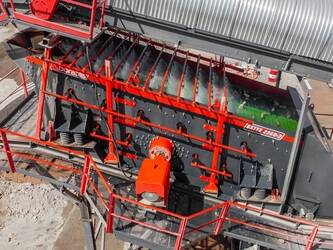

The integrated washer screen operates with a high-performance vibration system and full washing equipment installed on the machine. Independently distributed spray zones support effective removal of clay, dust, and fine contaminants while maintaining stable screening performance under continuous operation.

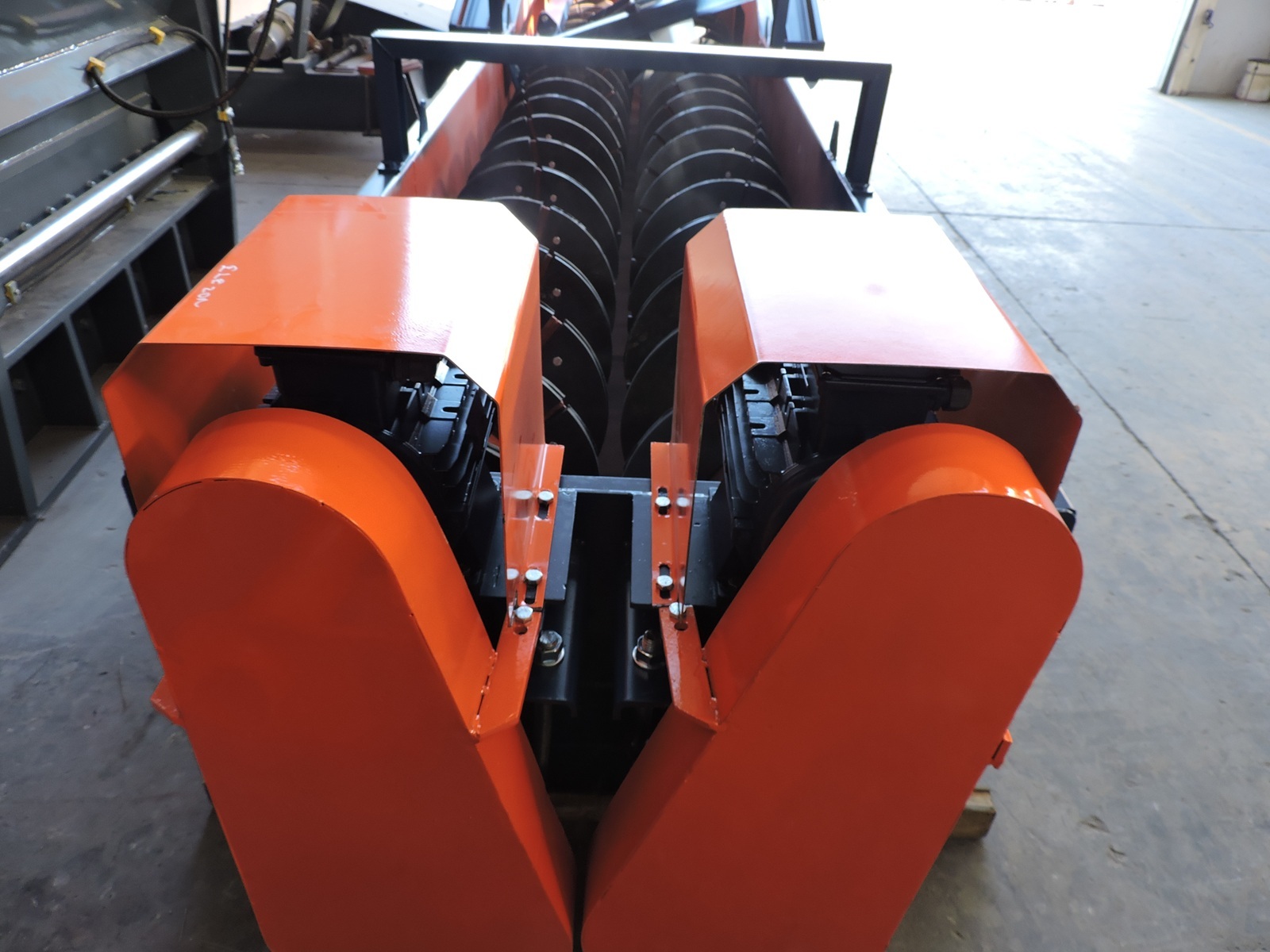

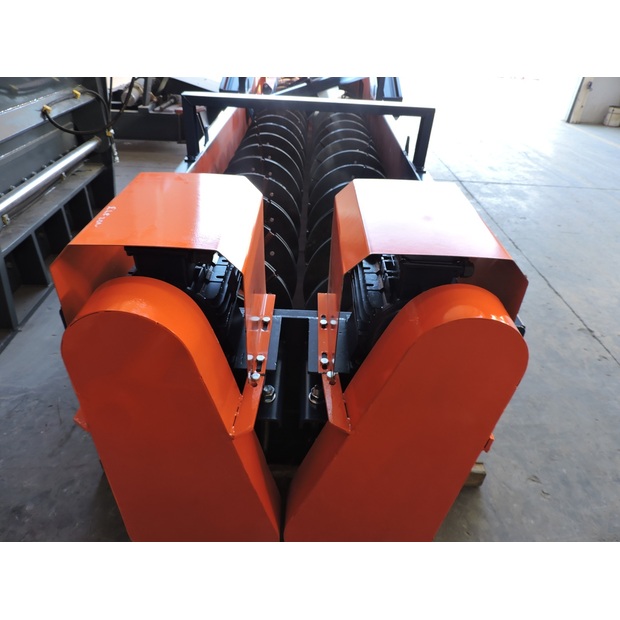

The Boratas sand washer also features a twin-spiral classifier system for recovery and dewatering of fine sand fractions. This configuration improves final product quality while reducing material loss during wet processing operations.

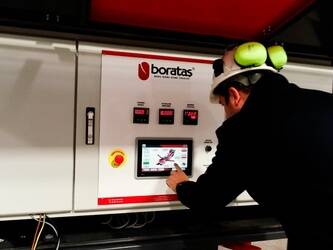

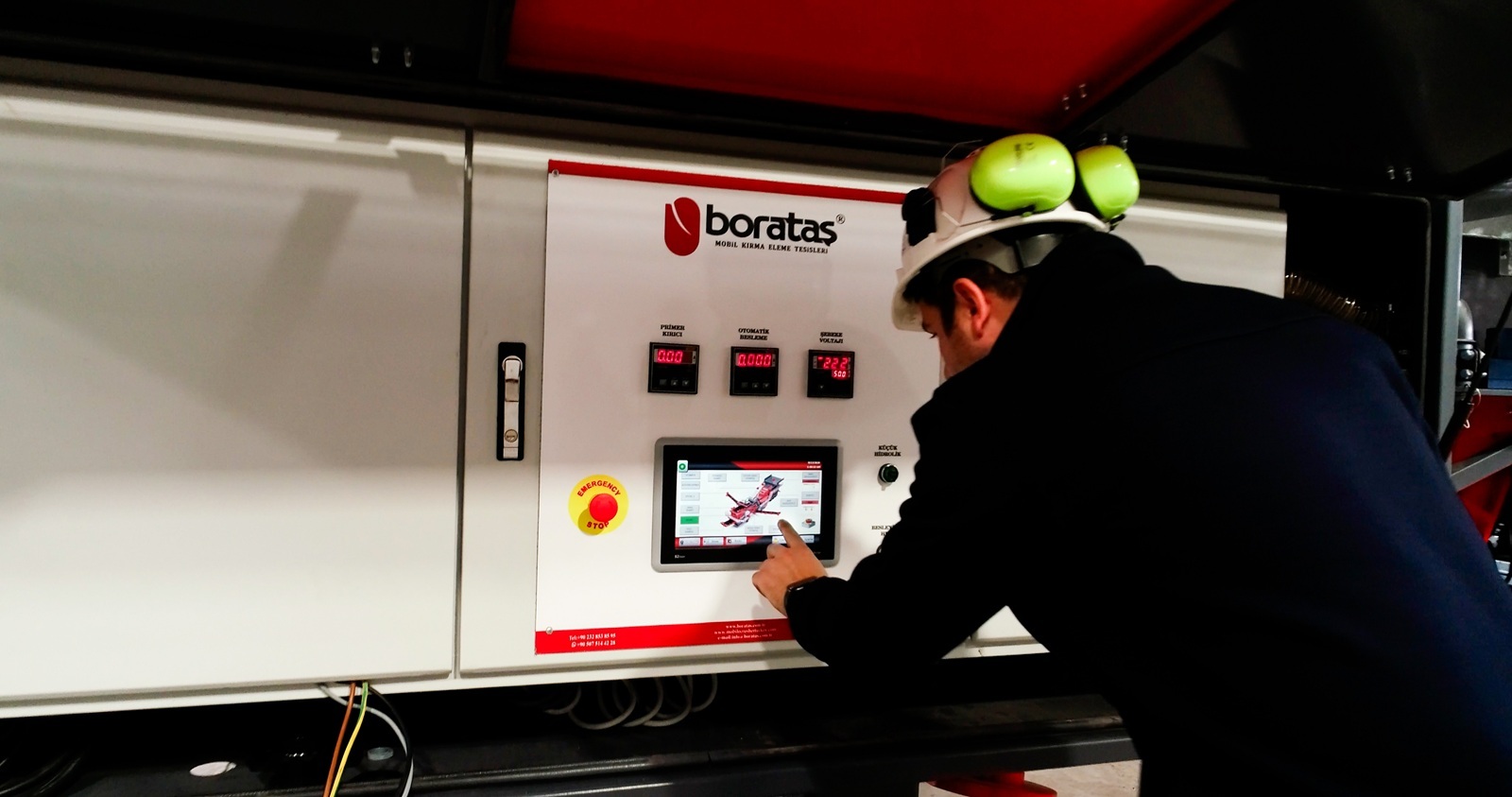

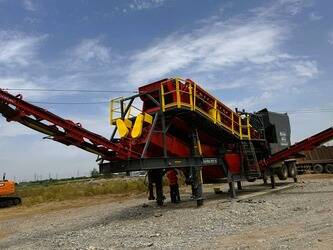

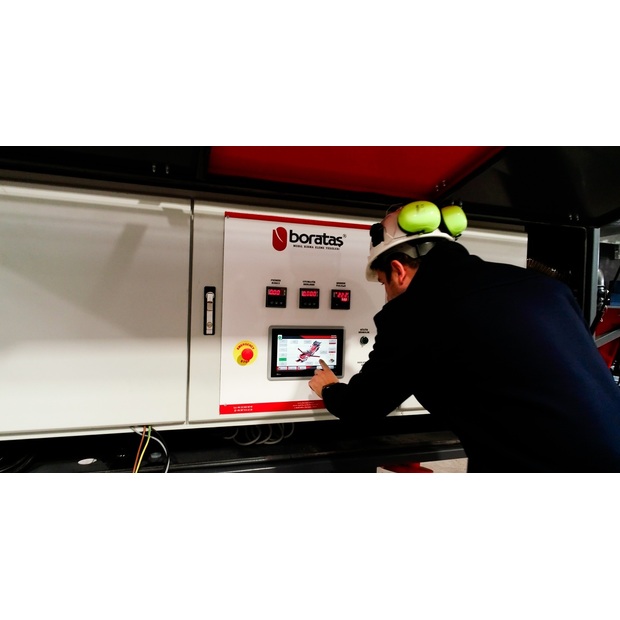

Mounted on a mobile chassis with dual axles and integrated service walkways, the machine provides practical transportation, easy installation, and simplified maintenance access. The electrical control panel is supplied with ABB, Schneider, and Siemens components, supporting reliable and operator-friendly plant control.
Plug-in Hybrid / Electric Operation
The Boratas wheeled washing and screening unit operates with an electric drive system and can be integrated into site electrical infrastructure or generator-supported operation depending on project requirements. The configuration supports efficient energy usage and reliable performance in both fixed and temporary installations.
Technical Specifications
• Feed Hopper Volume: 8 m³
• Grizzly Opening: 100 × 100 mm
• Screen Dimensions: 3 decks – 1,600 × 5,000 mm
• Spiral Classifier: Twin spiral – 600 × 6,000 mm
• Total Installed Power: approx. 55 kW
• Chassis: 2-axle wheel-mounted mobile chassis
Manufactured in compliance with international quality standards and supported by Boratas warranty and after-sales service.
Explore further details about Boratas mobile washing and screening plants on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
For further details about Boratas sand washers and screening machines, kindly visit our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
Boratas BLY03 Wheeled Mobile Washing and Screening Plant is a semi-mobile wet processing unit designed for aggregate washing, sand classification, and fine material recovery in quarrying, mining, and recycling applications. The machine combines feeding, washing, screening, and classification processes in a compact wheel-mounted structure, supporting flexible operation and easy relocation between project sites.The unit is equipped with an 8 m³ feed hopper with hydraulic adjustable grizzly bars, allowing direct feeding by excavators and wheel loaders. Material is transferred through a heavy-duty belt conveyor to a triple-deck washing inclined screen, where aggregates are rinsed, separated, and classified into different product sizes.
The integrated washer screen operates with a high-performance vibration system and full washing equipment installed on the machine. Independently distributed spray zones support effective removal of clay, dust, and fine contaminants while maintaining stable screening performance under continuous operation.
The Boratas sand washer also features a twin-spiral classifier system for recovery and dewatering of fine sand fractions. This configuration improves final product quality while reducing material loss during wet processing operations.
Mounted on a mobile chassis with dual axles and integrated service walkways, the machine provides practical transportation, easy installation, and simplified maintenance access. The electrical control panel is supplied with ABB, Schneider, and Siemens components, supporting reliable and operator-friendly plant control.
Plug-in Hybrid / Electric Operation
The Boratas wheeled washing and screening unit operates with an electric drive system and can be integrated into site electrical infrastructure or generator-supported operation depending on project requirements. The configuration supports efficient energy usage and reliable performance in both fixed and temporary installations.
Technical Specifications
• Feed Hopper Volume: 8 m³
• Grizzly Opening: 100 × 100 mm
• Screen Dimensions: 3 decks – 1,600 × 5,000 mm
• Spiral Classifier: Twin spiral – 600 × 6,000 mm
• Total Installed Power: approx. 55 kW
• Chassis: 2-axle wheel-mounted mobile chassis
Manufactured in compliance with international quality standards and supported by Boratas warranty and after-sales service.
Explore further details about Boratas mobile washing and screening plants on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
For further details about Boratas sand washers and screening machines, kindly visit our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
The unit is equipped with an 8 m³ feed hopper with hydraulic adjustable grizzly bars, allowing direct feeding by excavators and wheel loaders. Material is transferred through a heavy-duty belt conveyor to a triple-deck washing inclined screen, where aggregates are rinsed, separated, and classified into different product sizes.
The integrated washer screen operates with a high-performance vibration system and full washing equipment installed on the machine. Independently distributed spray zones support effective removal of clay, dust, and fine contaminants while maintaining stable screening performance under continuous operation.
The Boratas sand washer also features a twin-spiral classifier system for recovery and dewatering of fine sand fractions. This configuration improves final product quality while reducing material loss during wet processing operations.
Mounted on a mobile chassis with dual axles and integrated service walkways, the machine provides practical transportation, easy installation, and simplified maintenance access. The electrical control panel is supplied with ABB, Schneider, and Siemens components, supporting reliable and operator-friendly plant control.
Plug-in Hybrid / Electric Operation
The Boratas wheeled washing and screening unit operates with an electric drive system and can be integrated into site electrical infrastructure or generator-supported operation depending on project requirements. The configuration supports efficient energy usage and reliable performance in both fixed and temporary installations.
Technical Specifications
• Feed Hopper Volume: 8 m³
• Grizzly Opening: 100 × 100 mm
• Screen Dimensions: 3 decks – 1,600 × 5,000 mm
• Spiral Classifier: Twin spiral – 600 × 6,000 mm
• Total Installed Power: approx. 55 kW
• Chassis: 2-axle wheel-mounted mobile chassis
Manufactured in compliance with international quality standards and supported by Boratas warranty and after-sales service.
Explore further details about Boratas mobile washing and screening plants on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
For further details about Boratas sand washers and screening machines, kindly visit our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.
