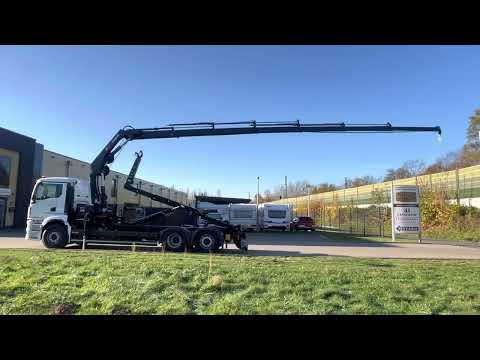

2022 MAN TGS 26.470

TGS 26.470 6x2-4 BL CH ( TG 3 ) roll-off tipper + crane Hiab X Hiduo 228-6

( also available as 8x4 )


Vehicle equipment:

Diesel engine MAN D2676 LF79, 346 kW (470 hp) power, 2,400 Nm torque, Euro 6d
Automatic transmission MAN TipMatic 12.26 DD, with retarder 35 Driving program MAN TipMatic Efficiency, up to 70,000 kg
Tires front axle optional 385/65R22.5 Lenk-S+G TL (160 K)
Hankook 315/80R22.5 AM09 steering S+G TL trailing axle tires
Steering ratio, indirect - Steering oil reservoir with electric measuring probe
Front axle, 9,200 kg - Rear axle, 13,000 kg, HY axle
Control unit for electronically controlled air suspension (ECAS)
Cab suspension, Comfort590 l tank capacity Fuel tank, right - 80 l tank capacity AdBlue tank, left
High-performance engine brake MAN EVBec
Retarder Eco, speed-dependent, stepless, energy-efficient
Sun visor, in front of windshield
Windscreen wiper actuation, automatic, with rain sensor (automatic wiper)
Central locking, with remote control
Rotating beacons, LED, amber with function monitoring (individual LEDs illuminate in
cascade, all around)
Exterior rear view mirror, electrically adjustable with maneuvering aid, heated
Driver comfort seat, air-suspended
Multifunction steering wheel, height and tilt adjustable
Instrument cluster Professional 12,3 Zol
Air conditioner, Climatronic - water auxiliary heating, 4 kW
Moon Grey color scheme for cab interior
Electronic Stability Program (ESP)
Traction control (ASR)
Cruise control (FGR)
Driving speed limiter, adjustable, limiter (engine cut-off)
Emergency brake assistant EBA, cannot be switched off
Lane departure warning system
MAN AttentionGuard attention warning system
MAN Mediasystem Navigation Professional 12.3 inch
MAN Advanced sound system
Trailer hitch on rear cross member, RINGFEDER type 4040/G150A


Crane Hiab X Hiduo 228-6


6-fold extension
radio remote control
hydraulic lines for attachments
2,55m = 5500 kg
4,45m = 4150 kg
6,45m = 2850 kg
8,45m = 2120 kg
10,60m = 1680 kg
12,70m = 1380 kg
14,70m = 1100 kg
17,00m = 810 kg



Roll-off tipper body:


MULTILIFT roll-off tipper OPTIMA 20S56
Lifting and tipping capacity 20000 kg
Additional zinc primer for base and tipping frames
to increase resistance to mechanical damage
in everyday use
Unit length 5600mm (G dimension)
container length (L1) 5,0 - 6,5m
150ltr. aluminum oil tank, large return filter 440 l/min
ydraulic system consisting of:
-Double-acting cylinders with load holding valves and
hose rupture protection function directly on the cylinders
-Unit control via compact control panel, integrated monitoring lights
monitoring lights and electromagnetic valve control
(PLC control) with two-stage switching (fine feed/rapid feed) in both
directions for the lifting cylinders
-Tilt frame end cushioning for soft container touchdown on the vehicle
vehicle
-CE safety package
-tipper display
