2026 Boratas BCK11

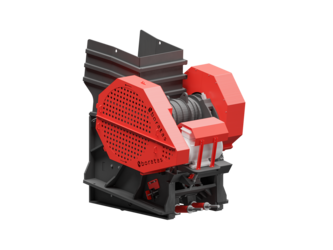

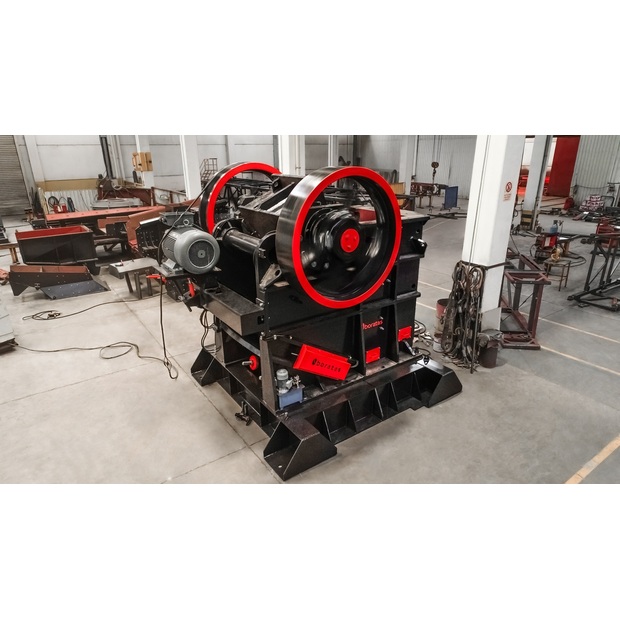

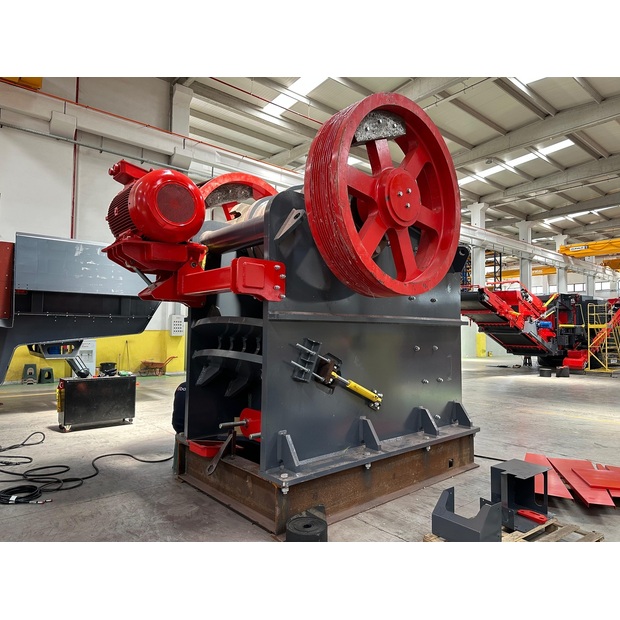

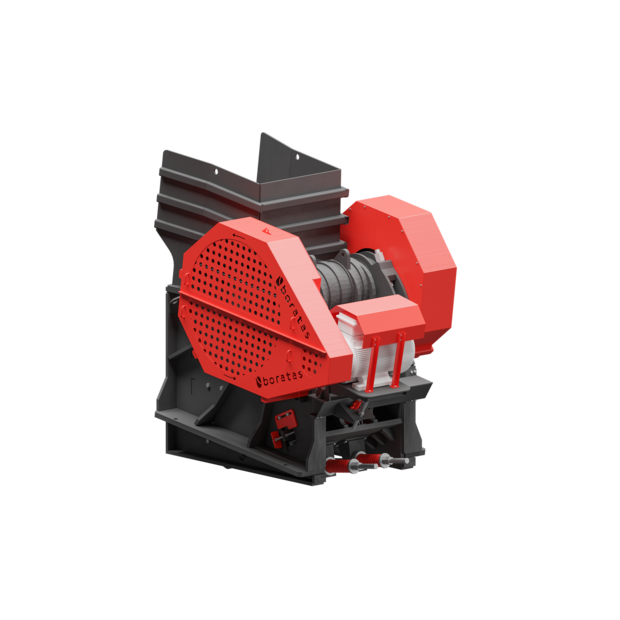

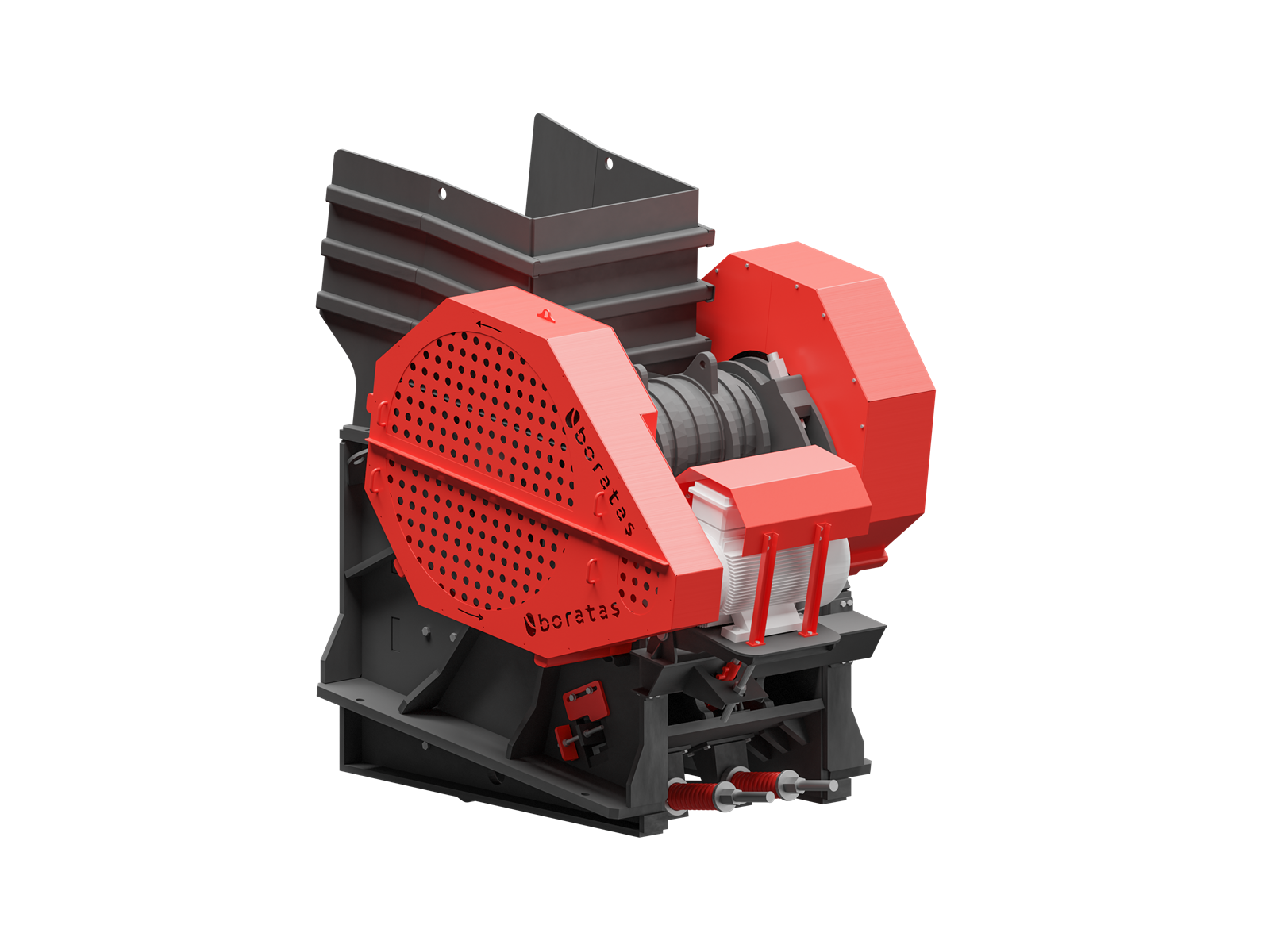

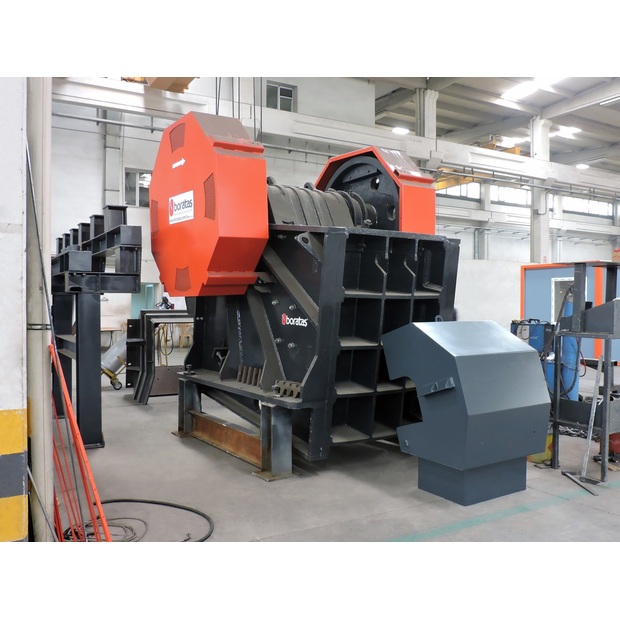

Boratas BCK11 is a primary jaw crusher designed for high-capacity crushing of hard and abrasive materials in quarrying, mining, and aggregate production plants. It is developed for operations requiring continuous feed intake, stable crushing performance, and reliable operation under demanding hard rock conditions.

The machine features a large feed opening of 1300 × 1100 mm, allowing direct processing of oversized rock material while reducing the need for additional pre-crushing stages. It is suitable for hard natural stones such as granite, basalt, diabase, and mineral ores commonly used in large-scale aggregate and mining operations.

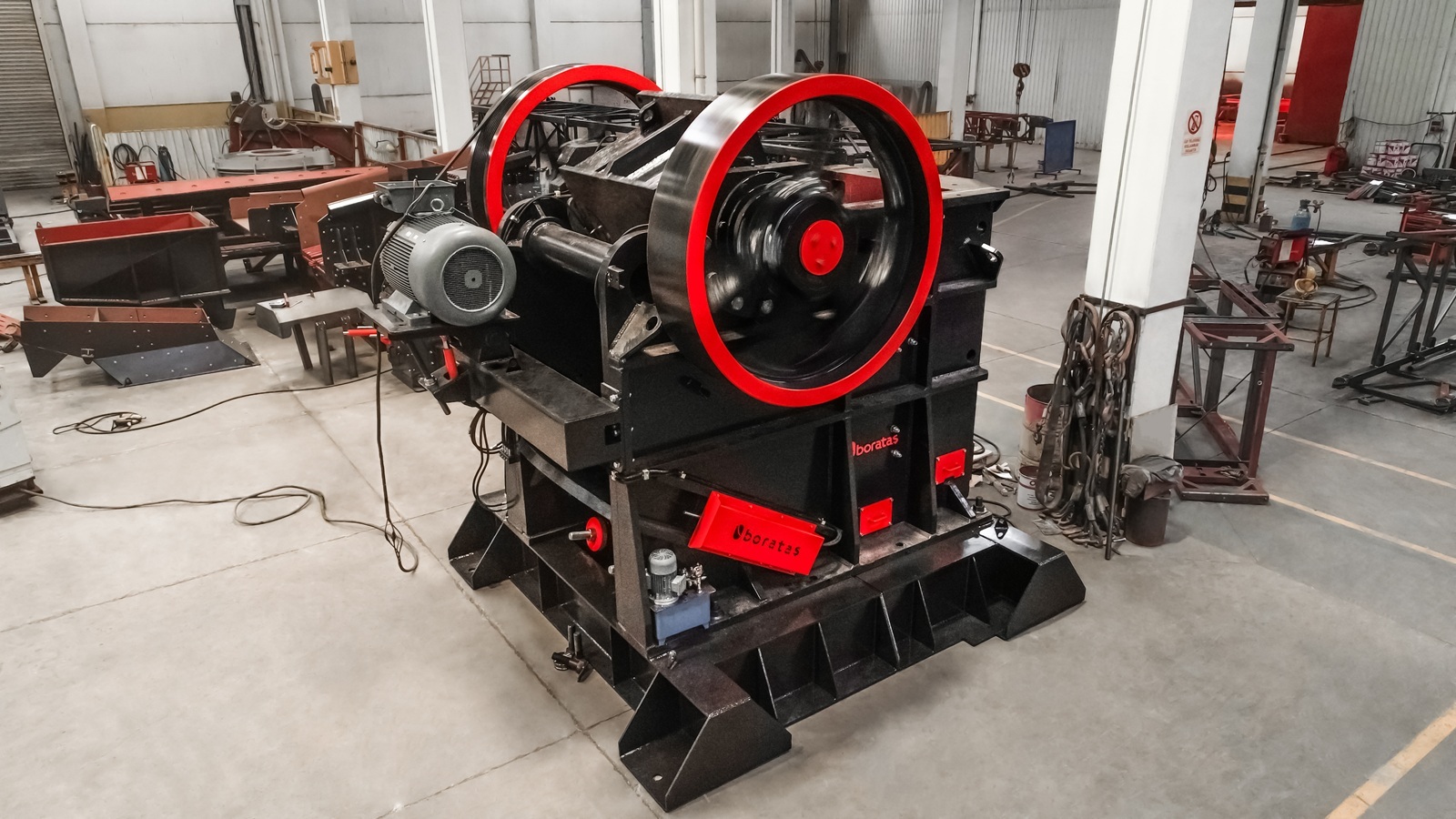

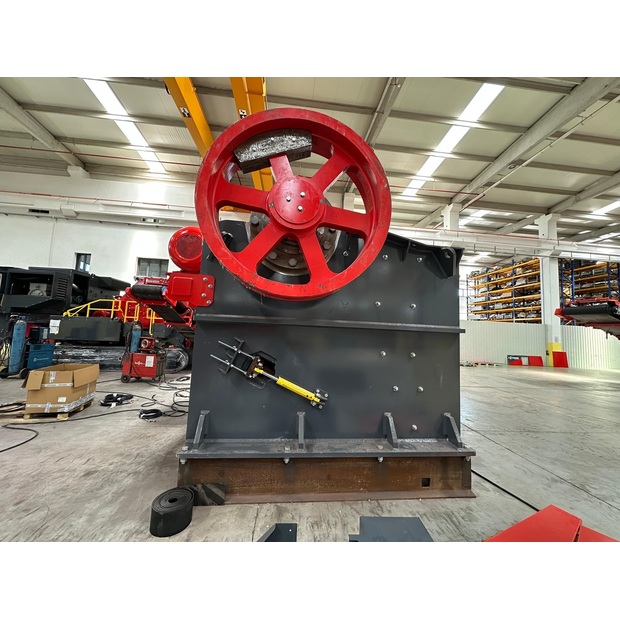

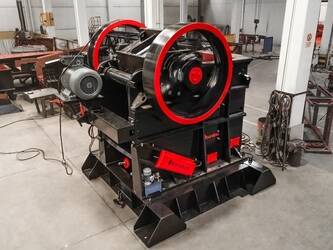

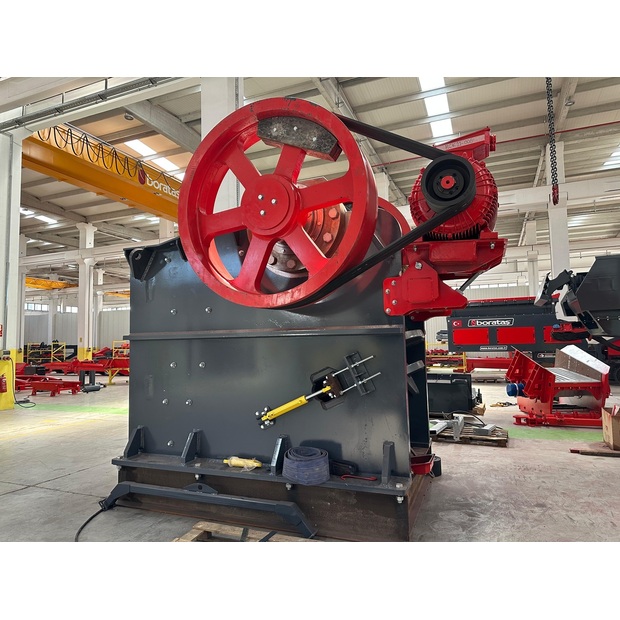

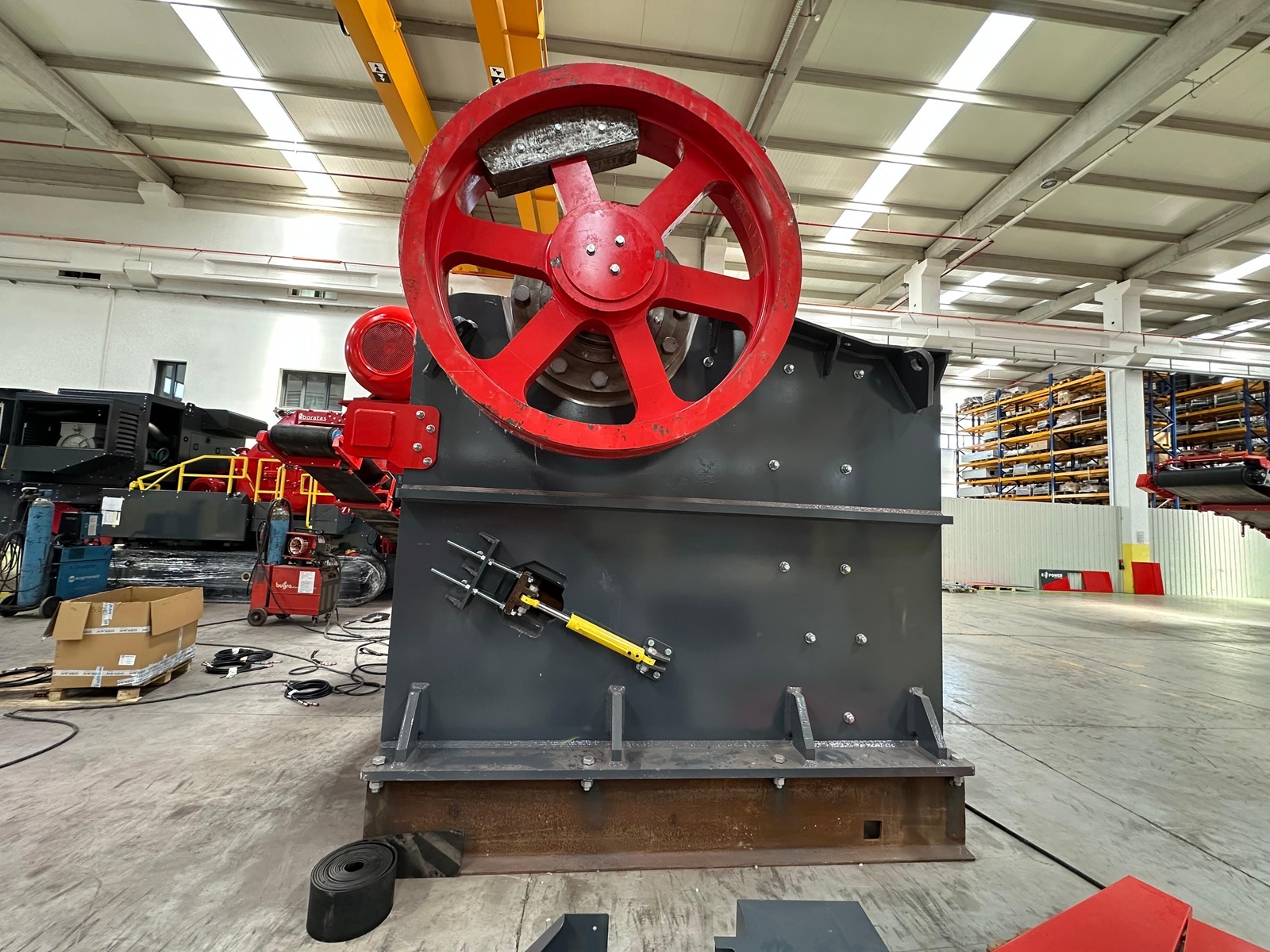

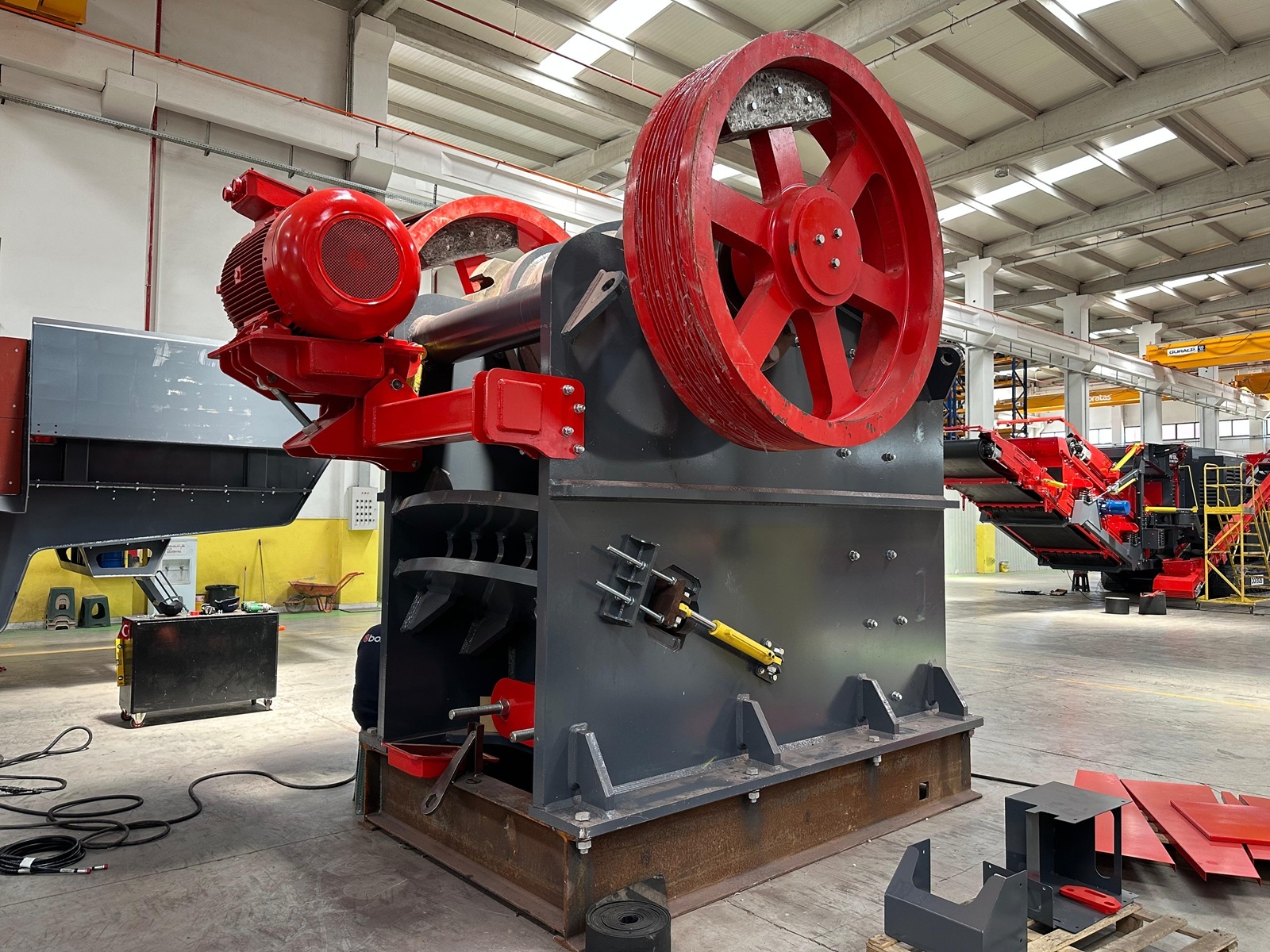

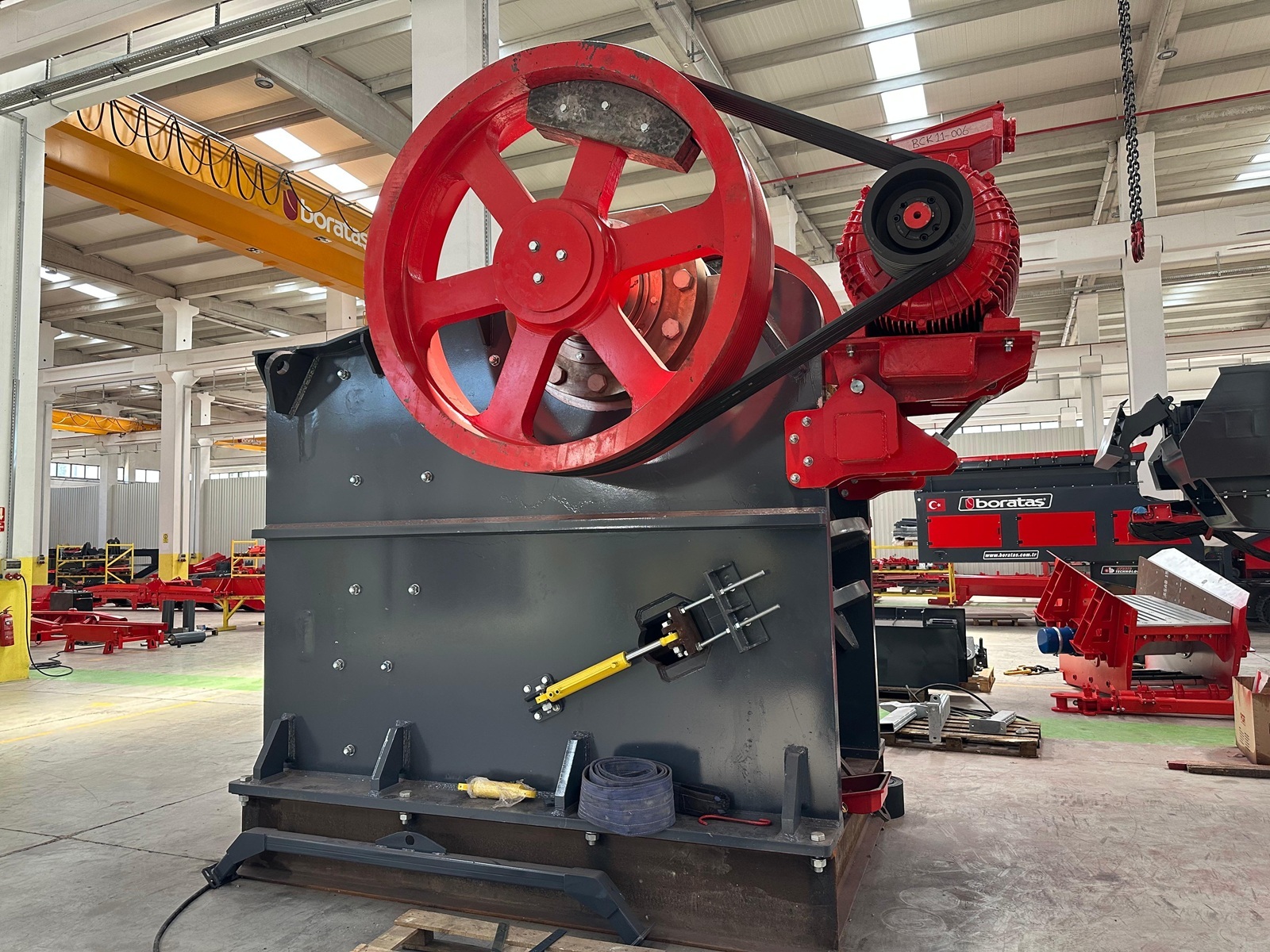

The crusher operates with a 200 kW electric motor and a heavy-duty V-belt drive system designed for efficient power transmission and stable operation. The drive motor is mounted directly on the crusher frame console, minimizing belt length and reducing heat generation caused by friction during continuous operation.

Technical Specifications
Feed opening: 1300 × 1100 mm
Capacity: up to 600 t/h
Motor power: 200 kW
Weight: approx. 55,000 kg

Manufactured in compliance with global quality standards and supported by Boratas warranty after-sales service.

Explore more Boratas models of stationary jaw crushers, and mobile crusher plants on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.

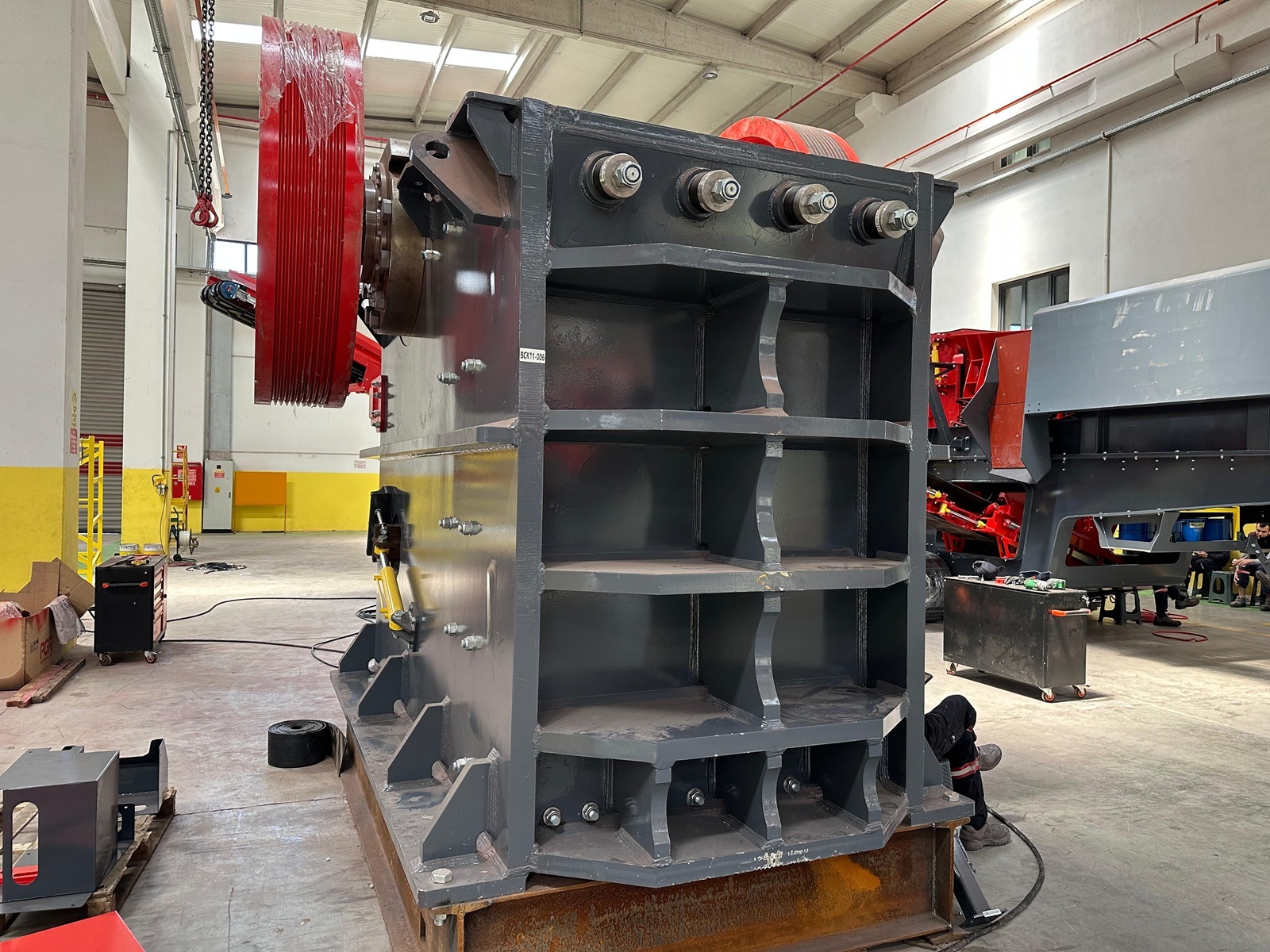

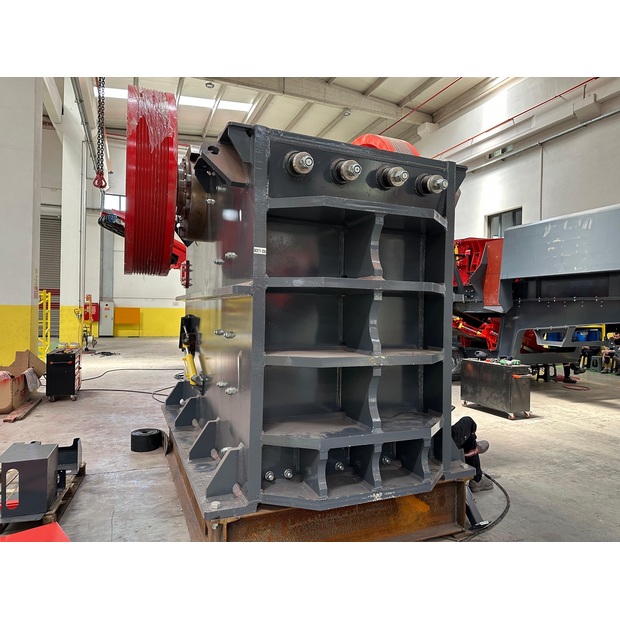

The crushing chamber is built around a reinforced steel frame with wear-resistant internal components engineered for long service life. Jaw plates are manufactured from high manganese alloy cast steel, while Hardox side liners and heavy-duty spherical roller bearings support reliable performance under high load conditions.

The BCK11 uses a hydraulic CSS adjustment system supported by spring tensioning, allowing operators to easily adjust the closed side setting between 100 and 300 mm according to required product size and downstream process requirements. A hydraulic cylinder mounted on the motor base also simplifies V-belt replacement and maintenance procedures.

The machine is designed for durability and serviceability, with accessible maintenance points, protected drive components, and a robust pitman and eccentric shaft assembly suited for continuous heavy-duty operation.
