2017 ساني STC750A

Sany STC750A
Speed: 80
Vat: 17

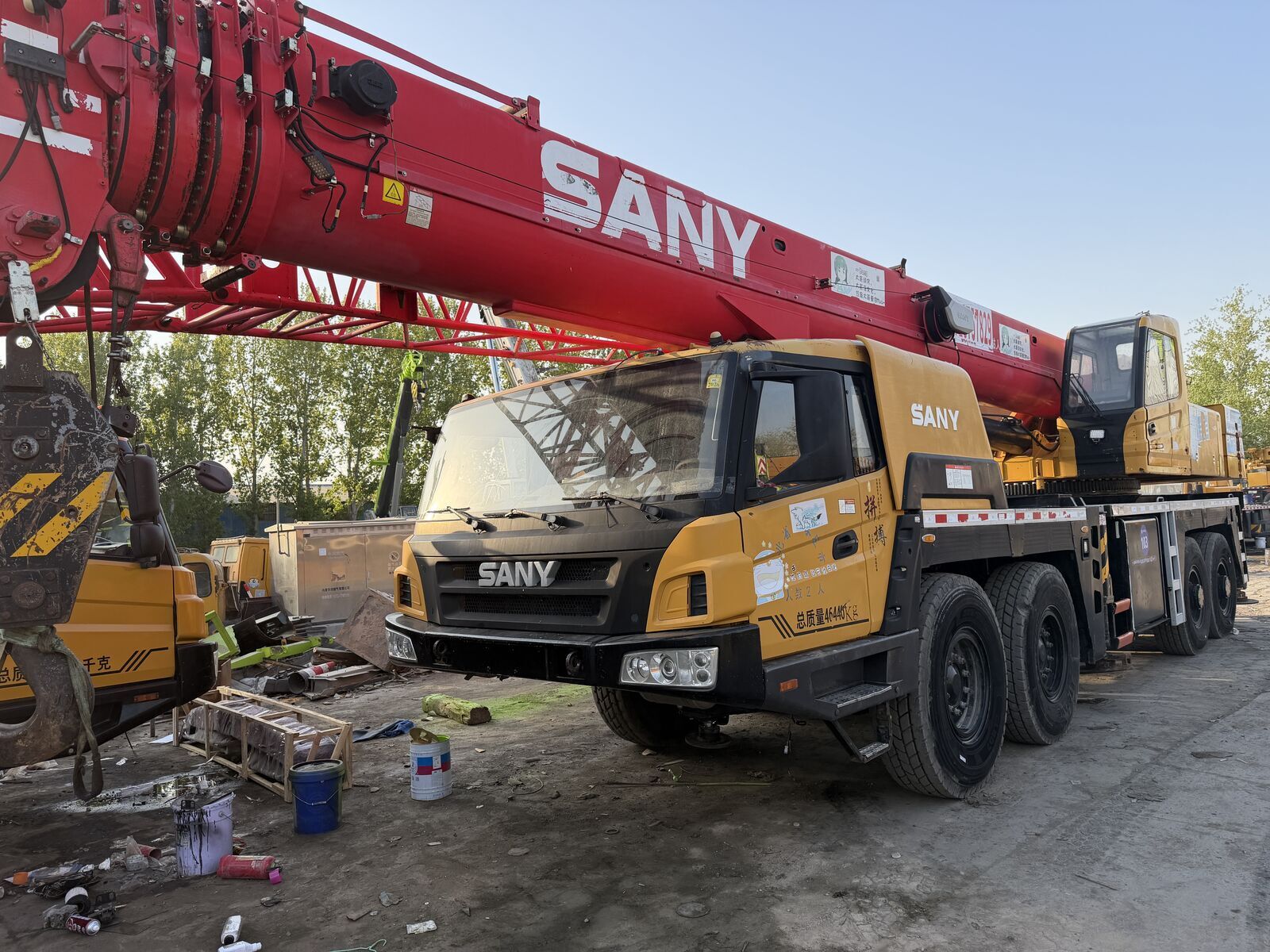

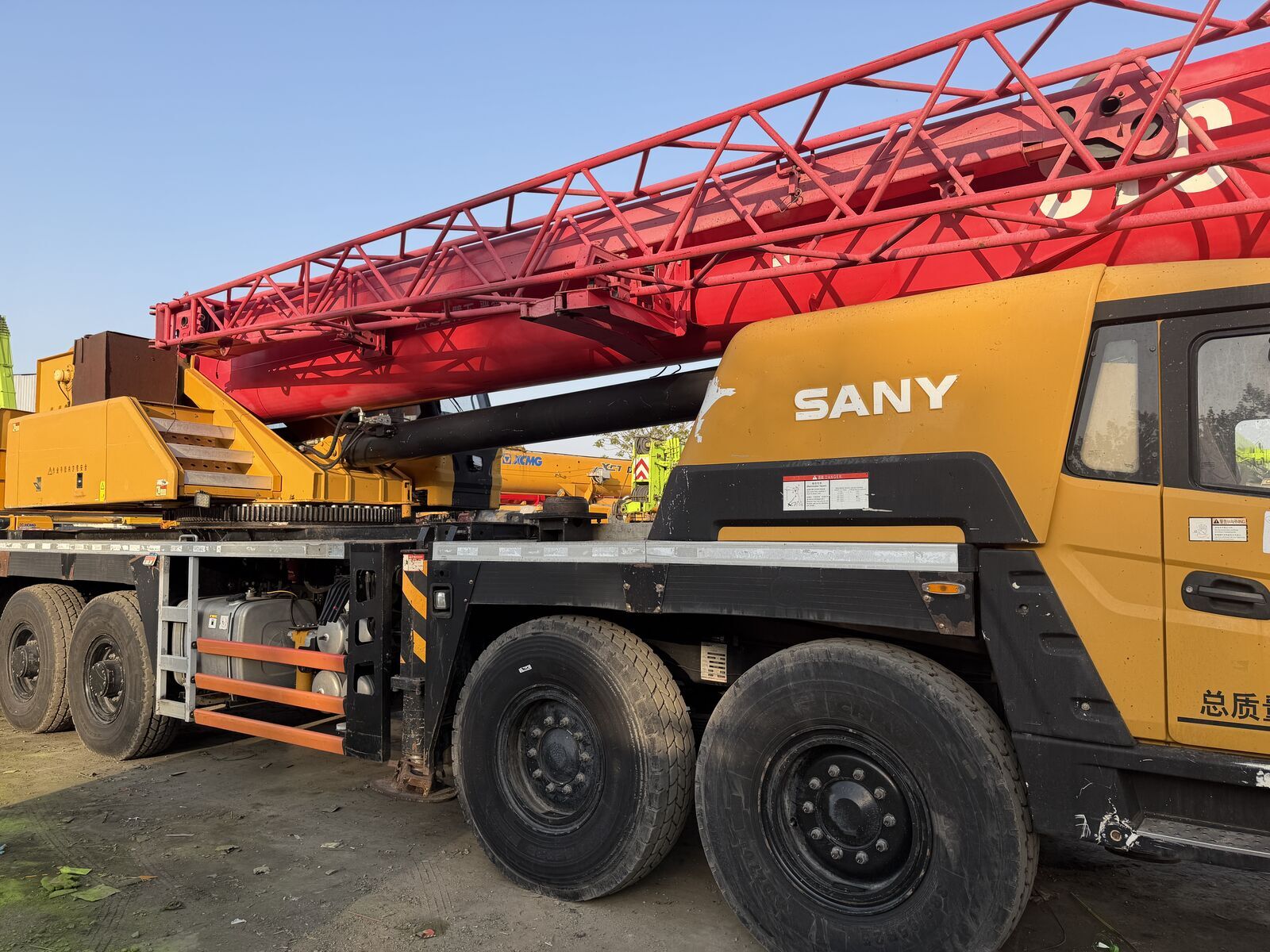

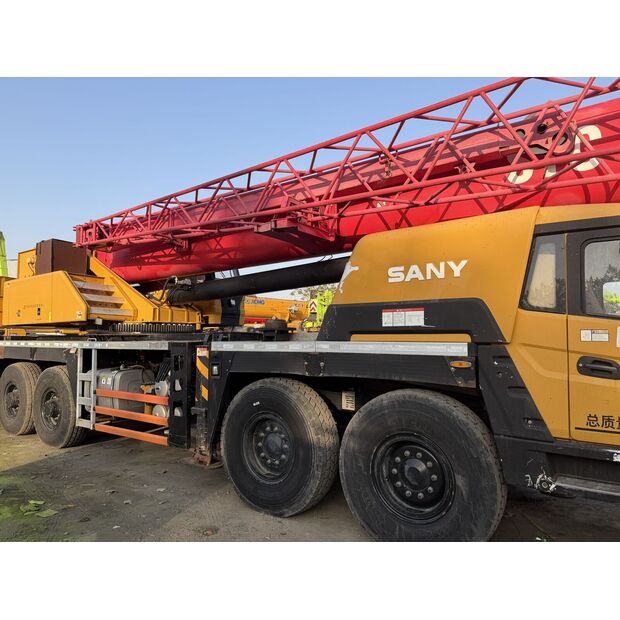

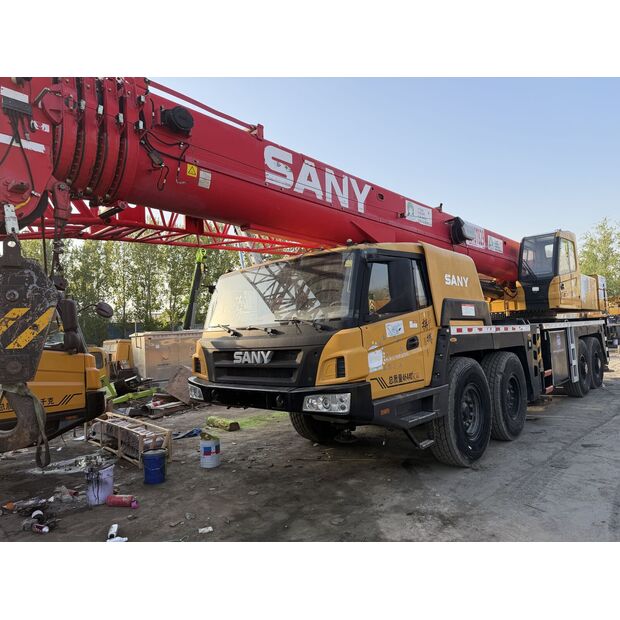

EN: Sany 75T Truck Crane STC750A all terrain crane 1. Core Lifting Performance Maximum Rated Lifting Capacity: 75 t (at 3m minimum working radius, basic boom) Maximum Rated Lifting Moment: 2560.2 kN·m (basic boom) / 3000 kN·m (optimized configuration) Minimum Working Radius: 3 m Maximum Working Radius: 36 m (full-extended main boom) Rated Capacity at Full-Boom Tip: ~1.6 t (at 47m main boom length) 2. Boom & Jib System Boom Type: 5-section U-shaped high-strength steel telescopic boom Main Boom Length Range: 11.8 m ~ 47 m Optional Auxiliary Jib: 16 m two-section luffing jib Jib Mounting Angles: 0°, 15°, 30° Maximum Lifting Height (Main Boom Only): 47.3 m (full-extended main boom) Maximum Lifting Height (Boom + Jib): 61 m Maximum Boom Elevation Angle: 80° 3. Outrigger & Stability Outrigger Span (Longitudinal × Transversal): 6.1 m × 7.6 m Total Counterweight: 13000 kg (full configuration) Rear Counterweight: 9500 kg Carbody Counterweight: 3500 kg Swing Radius of Superstructure Tail: 4.116 m 4. Working Speed & Winch System Main Winch Maximum Single Rope Lifting Speed (No Load): 130 m/min Auxiliary Winch Maximum Single Rope Lifting Speed (No Load): 130 m/min Slewing Speed: 0 ~ 2.0 r/min Boom Telescoping Speed: 150 s (full extension/retraction) Boom Luffing Speed: 50 s (from 0° to 80°) 5. Chassis & Travel Performance Chassis Model: SANY 8×4 heavy-duty truck chassis Drive Configuration: 8×4 (4-axle, all-wheel steerable) Maximum Travel Speed: 80 km/h Minimum Turning Radius: 12 m Gradeability: 30% Overall Dimensions (Transport State): Overall Length: 14100 mm Overall Width: 2750 mm Overall Height: 3850 mm ~ 4000 mm Total Operating Weight (Full Configuration): 46000 kg ~ 46440 kg Wheelbase: 1400 + 4050 + 1350 mm Front Overhang / Rear Overhang: 1500 mm / 1750 mm
Ref No:XZ50365
